ODU MOUNTING 5-59
Installation NWD-107460-02E
9 Connection of waveguide,
SS: Stainless Steel
Table 5-10 Hybrid (Fl) Parts List (for Mounting Bracket)
No. Parts Name Q’ty
1 Hybrid (Waveguide flange interface type) 1
2 Bracket 2
3 Handle 1
4 O-ring Inner Dia. φ32 (for ODU) 2
5 O-ring Inner Dia. φ15.6 (for Waveguide) 1
6 M5 × 12 Hexagon socket head cap screw (SS) 14 (4 part for spare.)
7 M6 × 20 Hexagon socket head cap screw (SS) 4
8 M6 Flat washer (SS) 4
9 M3 × 10 Hexagon head screw with washer (SS) 4

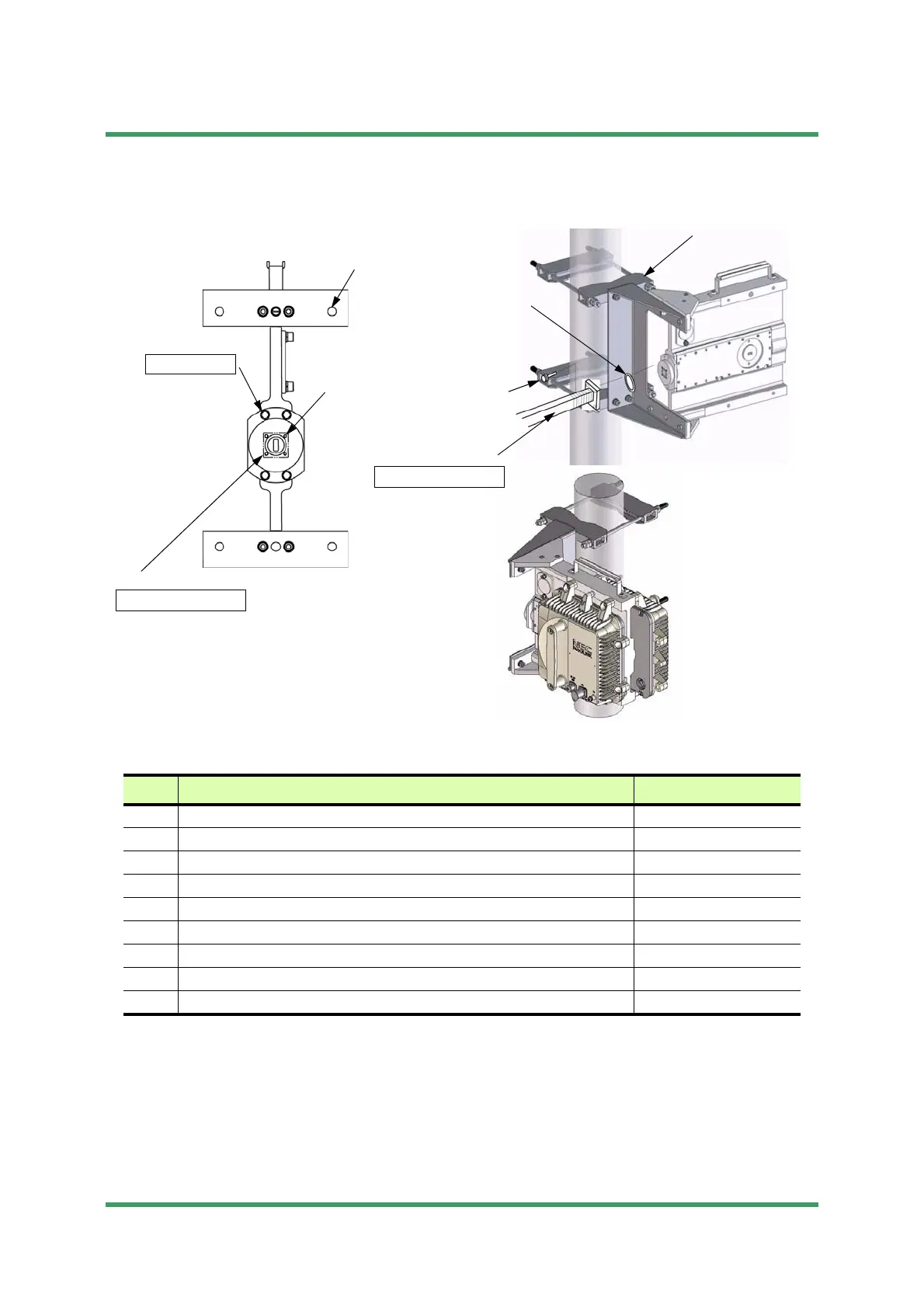

Hybrid
Waveguide flange
Flange type PBR220
Do not remove.
*
Mounting bracket
O-ring I/D φ15.6
(Packing)
Hexagon head screw
with washer M3 × 10
(4 ea)
Flexible waveguide
Flange type UBR220
Caution*: Please connect the Flexible
Waveguide in the same
direction as Hybrid.
