5-48 ODU MOUNTING
NWD-107460-02E Installation
4 Mount the ODU on to the Bracket and tighten four bolts (M6) at upper and lower
parts of the ODU,
5 Connect the Coaxial cable to the RF IN/OUT connector of the ODU,
6 Install the Coaxial cables between the antenna and the ODU.
Notes
1. Fix the Coaxial cable to the pole or member with Band (cable ties) after
antenna orientation has been completed.
2. Wrap the Coaxial cable connection points with a self-bonding tape for
waterproof. (The self-bonding tape shall be prepared by customer.)
Hexagon socket head screw M6

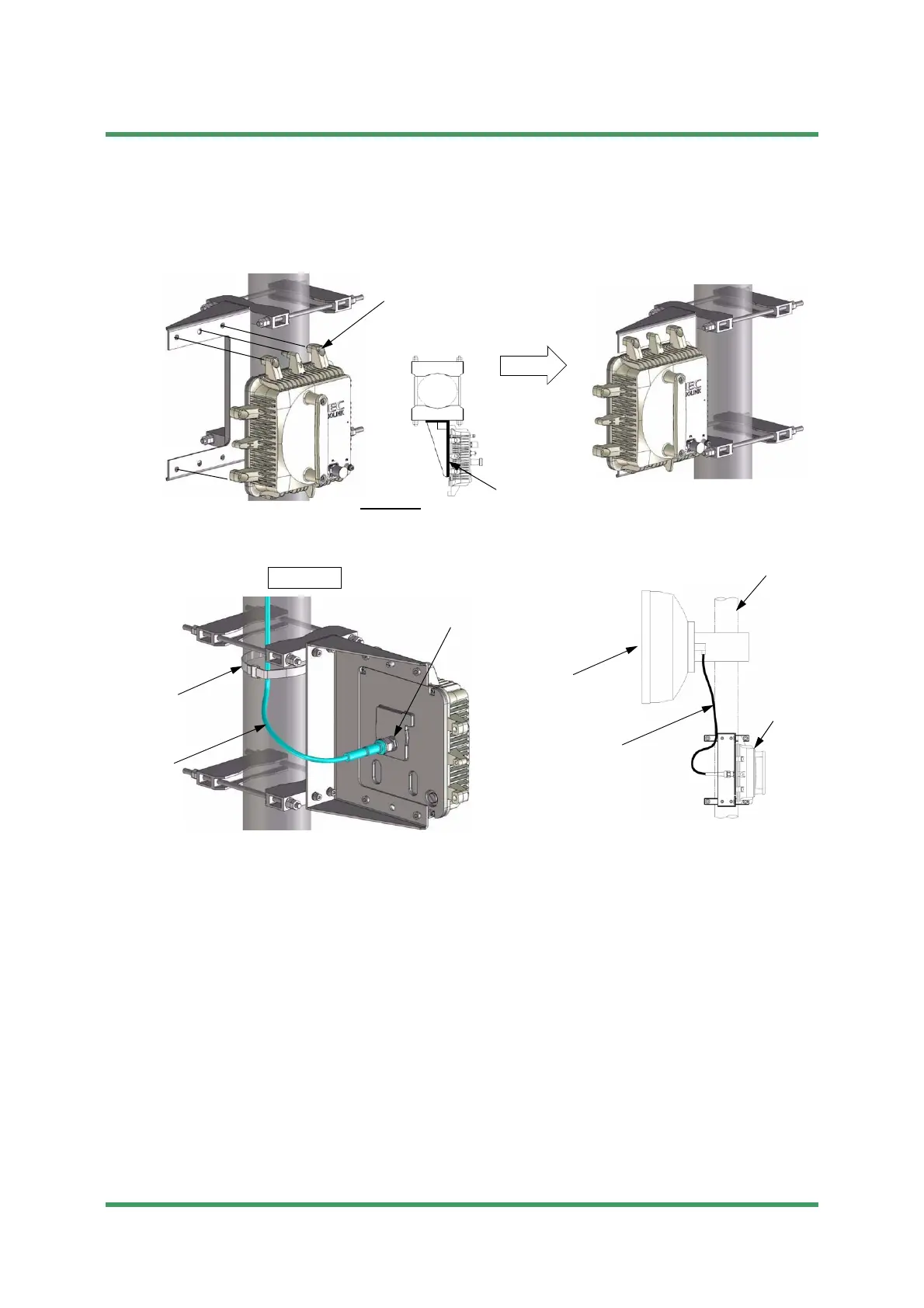

Attachment of the ODU
Note Tightening torque is
4 N·m ±10%.
Right angle side
Top view
Connection of the Coaxial CableExample
N-type connector
Band
Coaxial
cable
Antenna
Coaxial cable
Pole
ODU
Submission Prohibited
NEC Internal Use Only
To Next Page
