5-12 ODU MOUNTING
NWD-107460-02E Installation

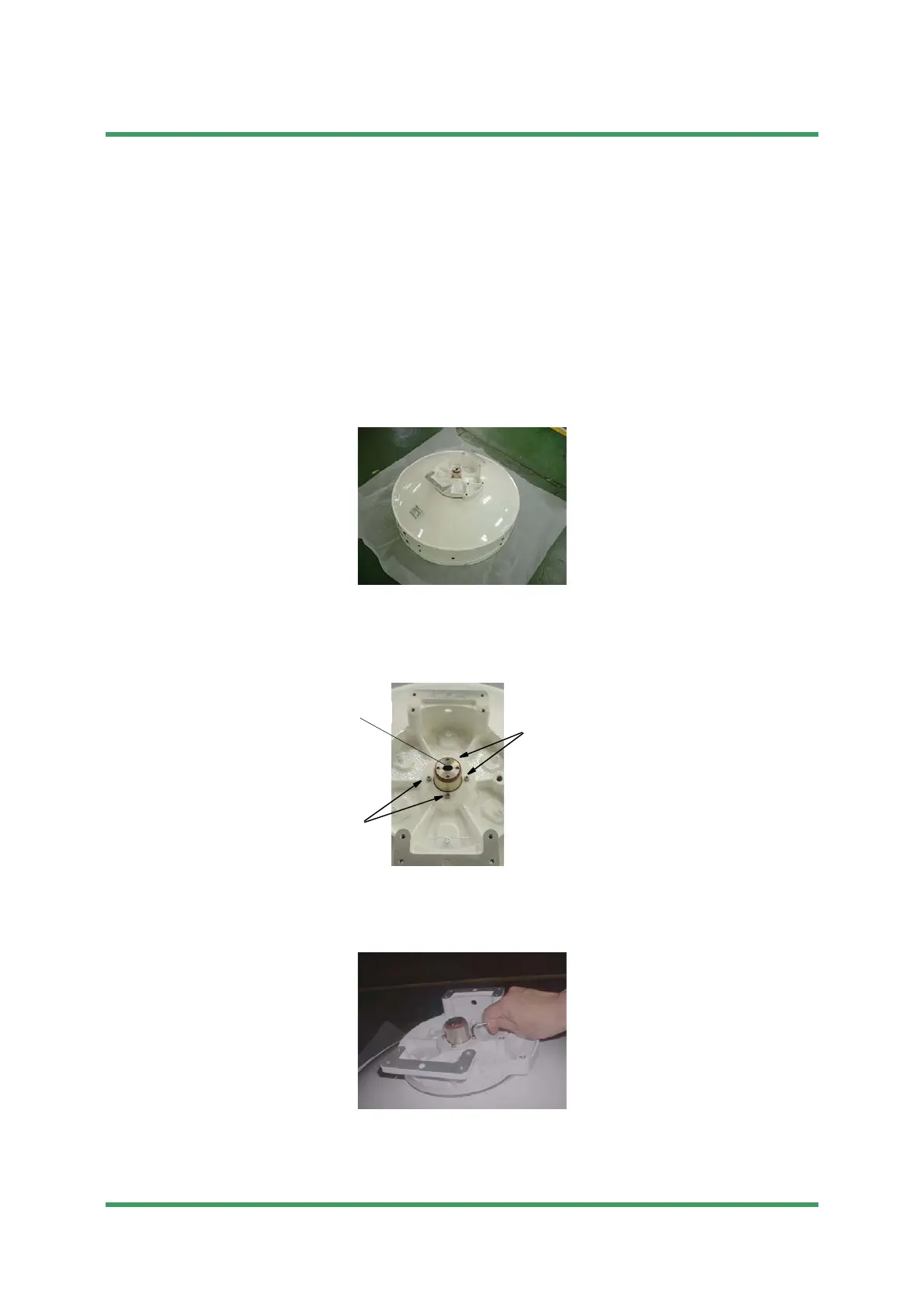

Procedure 5-1 Change of Polarization of Antenna
(1)) ODU Direct Mounting Type Antenna (ANDREW example #1)
Notes
1. The details are referred to the installation manual which is attached to
the antenna. The installation or removal of the antenna requires qualified
experienced personnel.
2. The antenna is set to V-polarization when shipped from the factory.
1 Keep the antenna stand horizontally,
2 If you change to H polarization, loosen the four screws with the Allen key
wrench and then rotate the Transition hub of feed, keeping the antenna stand
horizontal.
Note Do not remove the screw complete from the screw hole.
Hold the feed horn with hand.
Transition hub
2 Screws
2 Screws
Submission Prohibited
NEC Internal Use Only
To Next Page
