ODU MOUNTING 5-45
Installation NWD-107460-02E
5.2 Feeder Connection
5.2.1 For Coaxial Cable Connection

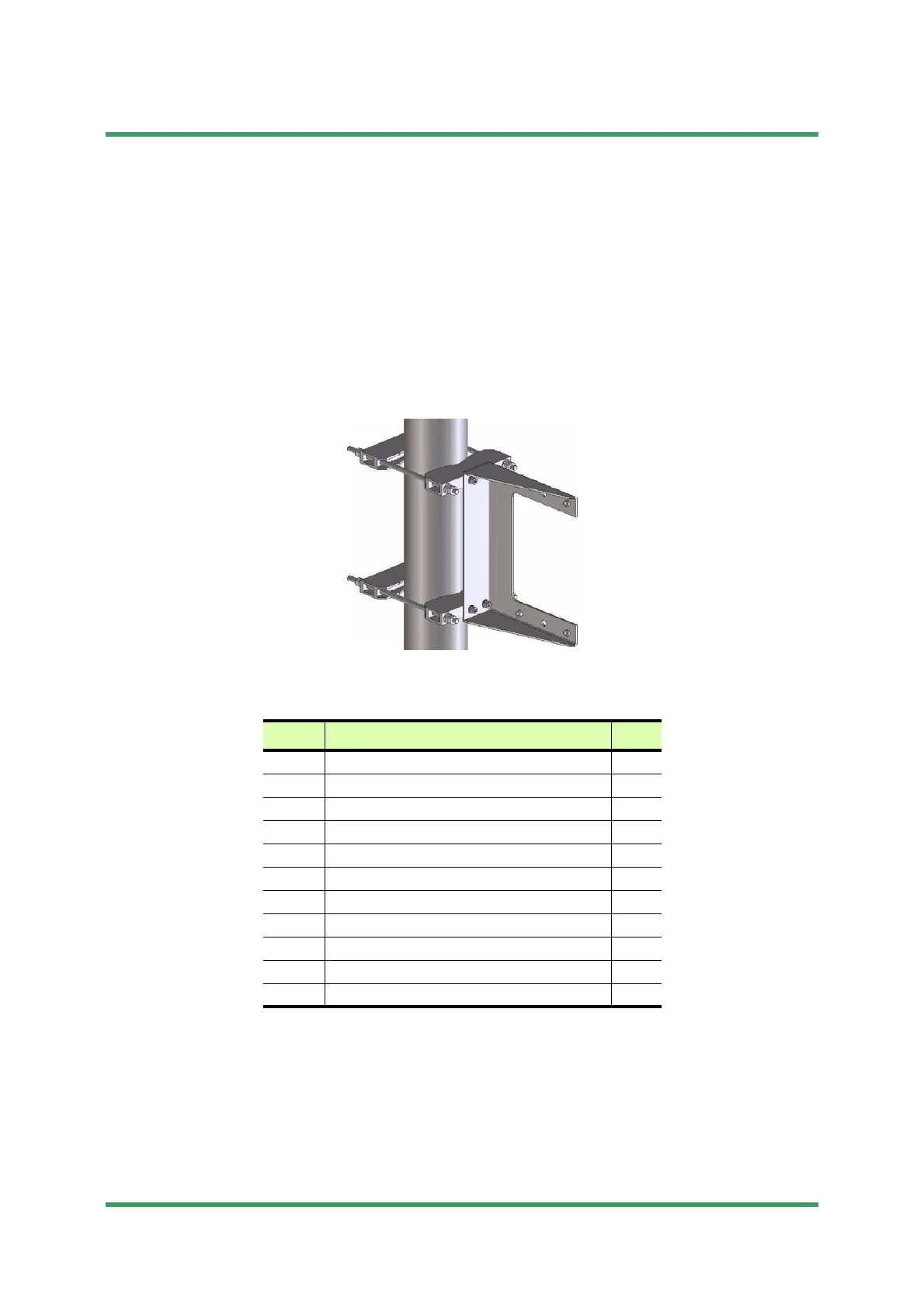

6/7/8GHz ODU MOUNTING BRACKET INSTALLATION
This Mounting Bracket is designed in order to install 6/7/8 GHz ODU with N-type
connector or Waveguide interface to a pole. The diameter of the pole is from 48.5 to
114.3 millimeters.
SS: Stainless Steel
Note Tightening torque is 4 N·m ±10% (M6 Screw).
Tightening torque is 11 N·m ±10% (M8 Screw).
Table 5-6 Mounting Bracket Prts List
Item Description Q’ty
1 Bracket 1
2 Holder-1 (with two M6 taps) 2
3 Holder-2 2
4 M8 Stud Bolt (SS) 4
5 M8 Hexagon Nut (SS) 20
6 M8 Flat Washer (SS) 8
7 M6×16 Hexagon Socket Head Screw (SS) 4
8 M6 Spring lock Washer (SS) 4
9 M6 Flat Washer (SS) 4
10 Cap 4
11 Band (Cable Clamp) 2
