6-38 CABLE TERMINATION

NWD-107460-02E Installation

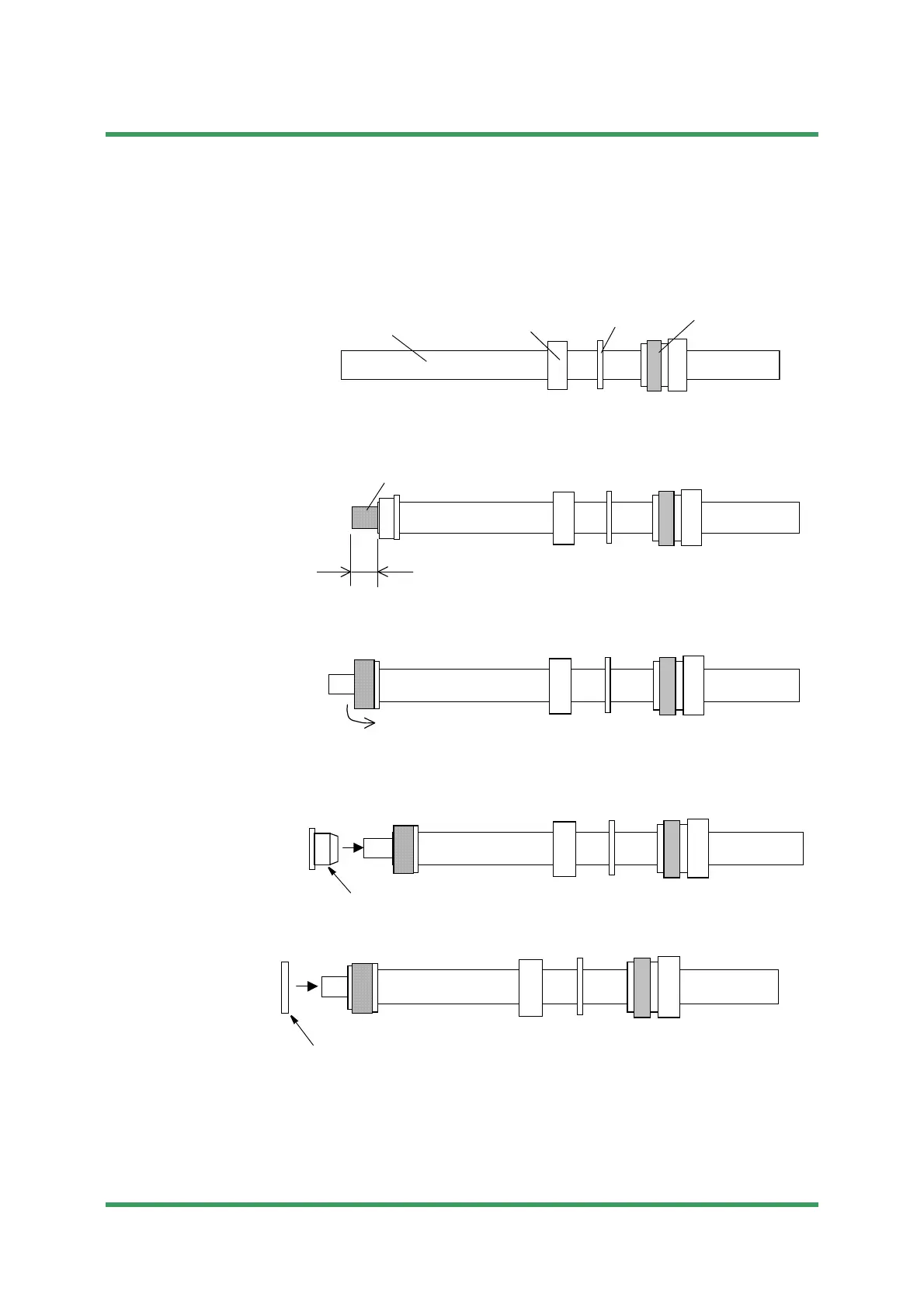

Procedure 6-8 N-PConnector used for ODU IF IN/OUT

(L-angle: N-LP-8DFB(B))

1 First fit the tying metal, washer and gasket on the cable,

2 Strip back the cable sheath, taking care not to damage the braided shield, and fit

the clamp,

3 Fold back the braided shield (separating the strands of the braid) and trim it,

Note Pay attention not to damage the plait.

4 Insert the ferrule,

5 Fit the bushing,

Gasket

Washer

Tying Metal

Cable

[Applicable cable: 8D-FB-E]

Clamp

9 mm

Ferrule

Bush
