ODU MOUNTING 5-47
Installation NWD-107460-02E
2 Fix the two Holder-1 to the Bracket at four bolts,
3 Mount the Bracket to the pole, point to the opposite station and tighten it with
four Stud bolts,
Note Since a bolt projects from a Holder when a pole diameter is small, please
attach the Cap to a bolt end.

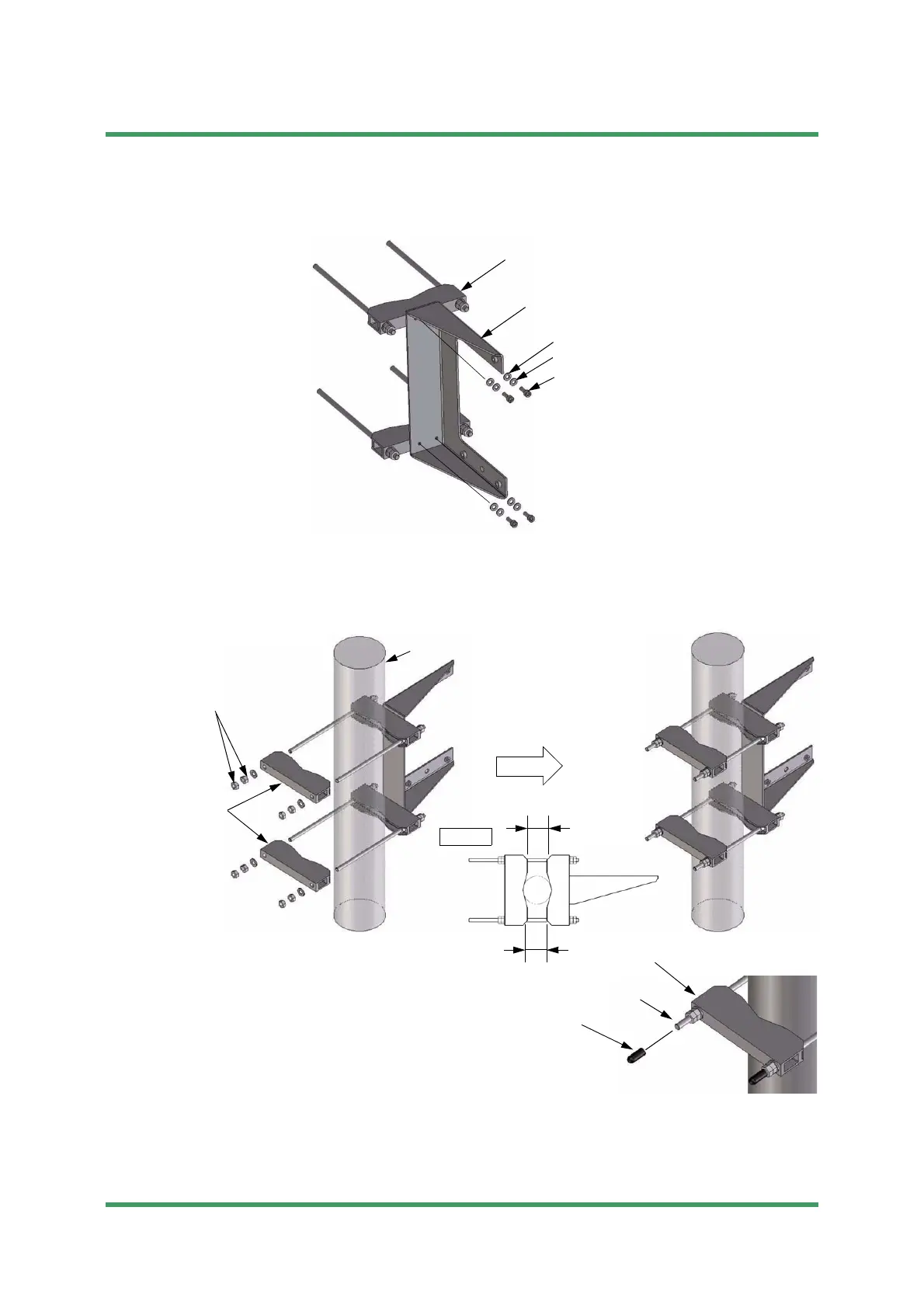

Assembly of the Bracket
Holder-1 Assembly
Bracket
Flat washer M6 (4 ea)
Spring lock washer M6 (4 ea)
Hexagon socket head screw M6×16 (4 ea)
Note Tightening torque is
4 N·m ±10%.
Pole (φ 48.5 to 114.3 mm)
Note Tightening torque is
11 N·m ±10%.
Holder-2 (2 ea)
A = B
A
B
Installation to the Pole
Holder
Bolt end
Cap (4 ea)
Hexagon nut M8 (8 ea)
Flat washer M8 (4 ea)
Submission Prohibited
NEC Internal Use Only
To Next Page
