NEC iPasolink 200 User Manual

ODU MOUNTING 5-9
Installation NWD-107460-02E
Notes
1. Figure shows V polarization.
2. Be careful not to damage the O-ring (Antenna).
3. The tightening torque is 4.0 N·m ±10%.

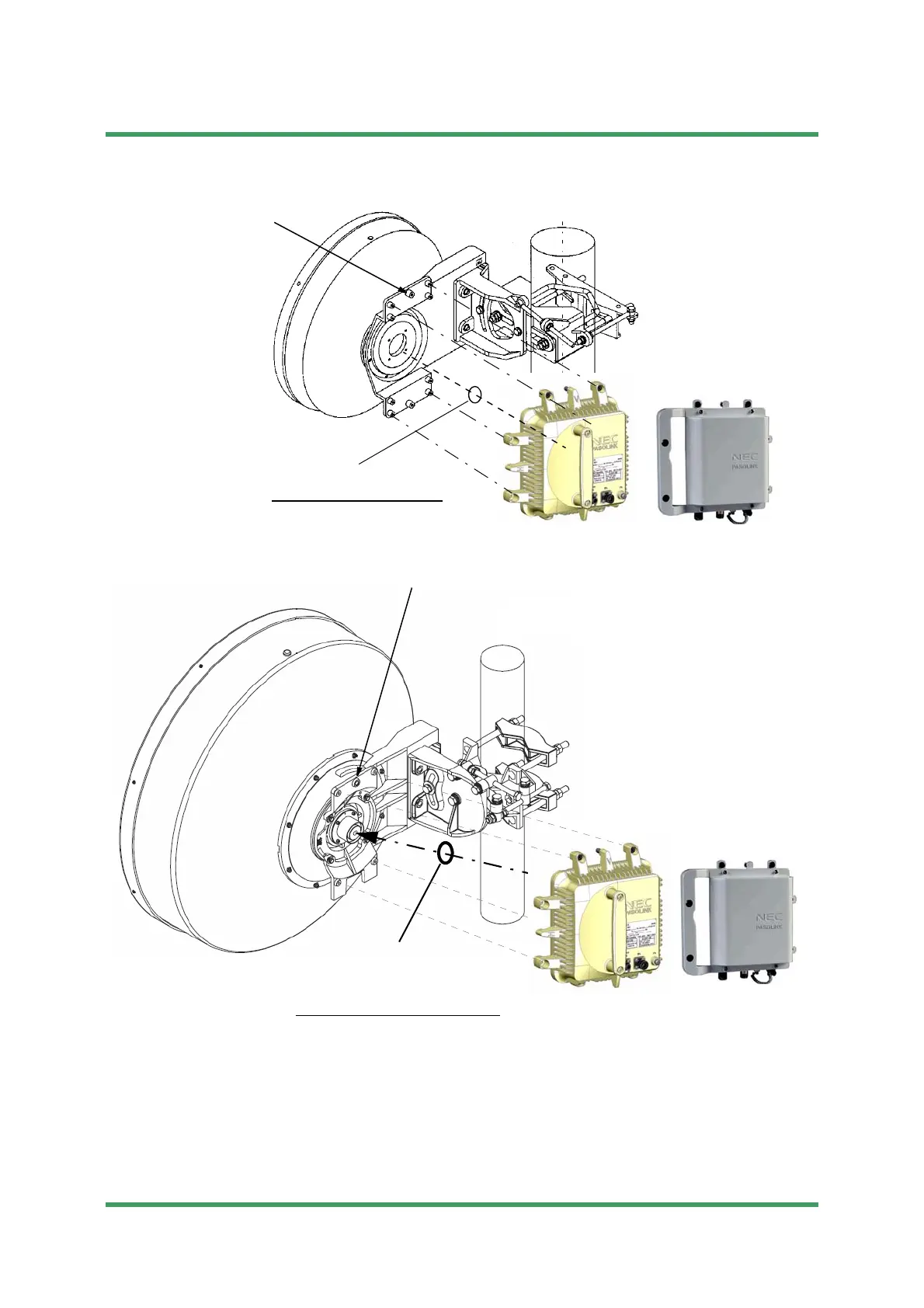

RFS SB1 type Bracket
O-ring
Hole for guide pin
ODU (6-11 GHz)
ODU (13-38 GHz)
Note Set the ODU to the bracket after
polarization of the ODU is confirmed.
O-ring
RFS C-Mount type Bracket
Hole for guide pin
ODU (6-11 GHz)
ODU (13-38 GHz)
Submission Prohibited
NEC Internal Use Only
