5-52 ODU MOUNTING
NWD-107460-02E Installation
Note Since a bolt projects from a Holder when a pole diameter is small, please
attach the Cap to a bolt end.

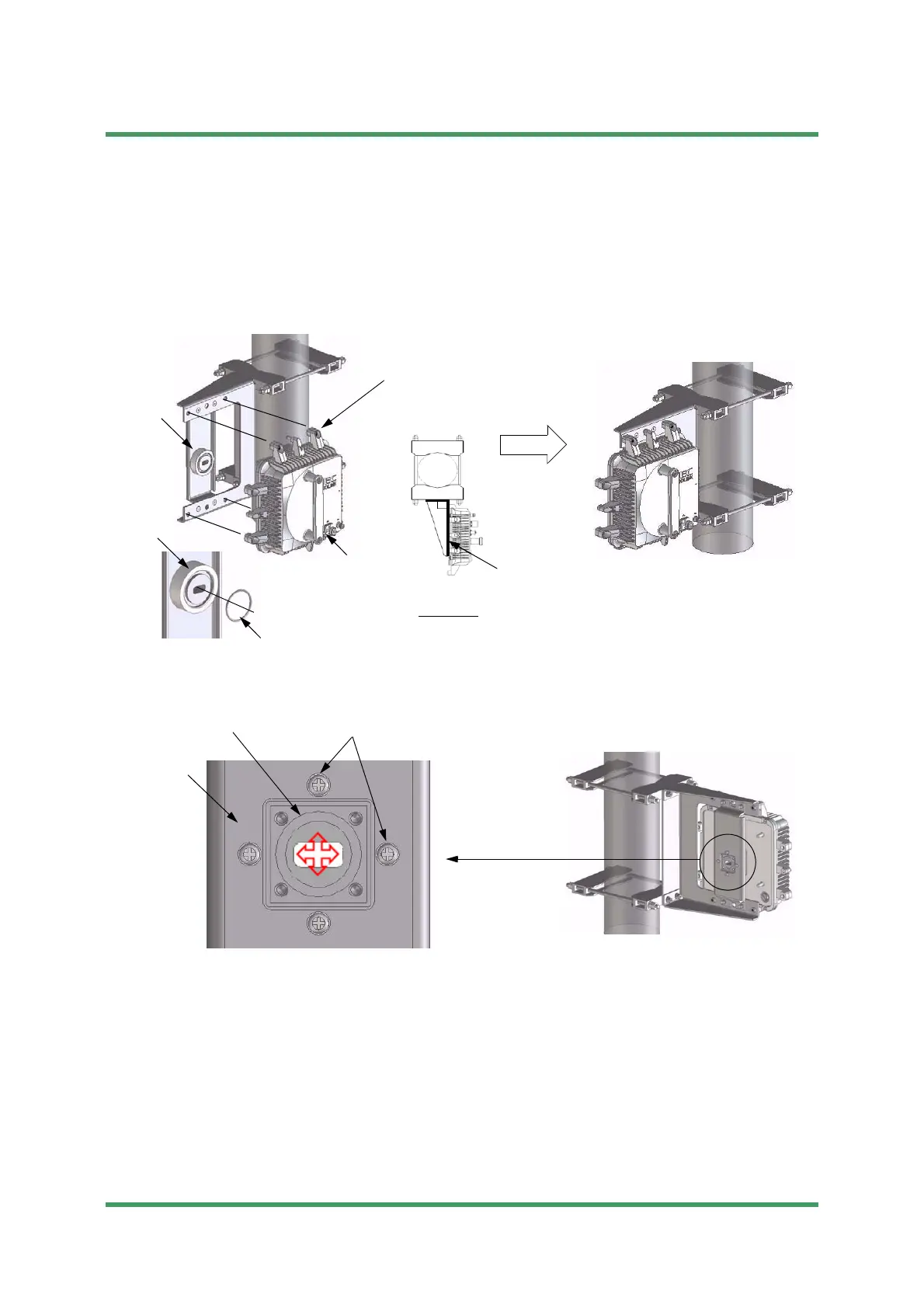

4 Mount the ODU on to the Bracket and tighten four bolts (M6) at upper and lower
parts of the ODU. Please equip the terminal area of ODU and Adapter with O-
ring, and join together after that,
5 When the attachment screw of the ODU is hard, please loosen the fixed four
screw of adapter once,
6 Please adjust the position of adapter to compensate for attachment of ODU. Then
tighten four bolts (M6) of the ODU,
Hexagon Socket Head Screw M6
Attachment of the ODU
Note Tightening torque is
4 N·m ±10%.
Right angle side
Adapter
ODU
Adapter
O-ring (for ODU)
Top view
Loosen the fixed four screws
Adapter
Bracket
Submission Prohibited
NEC Internal Use Only
To Next Page
