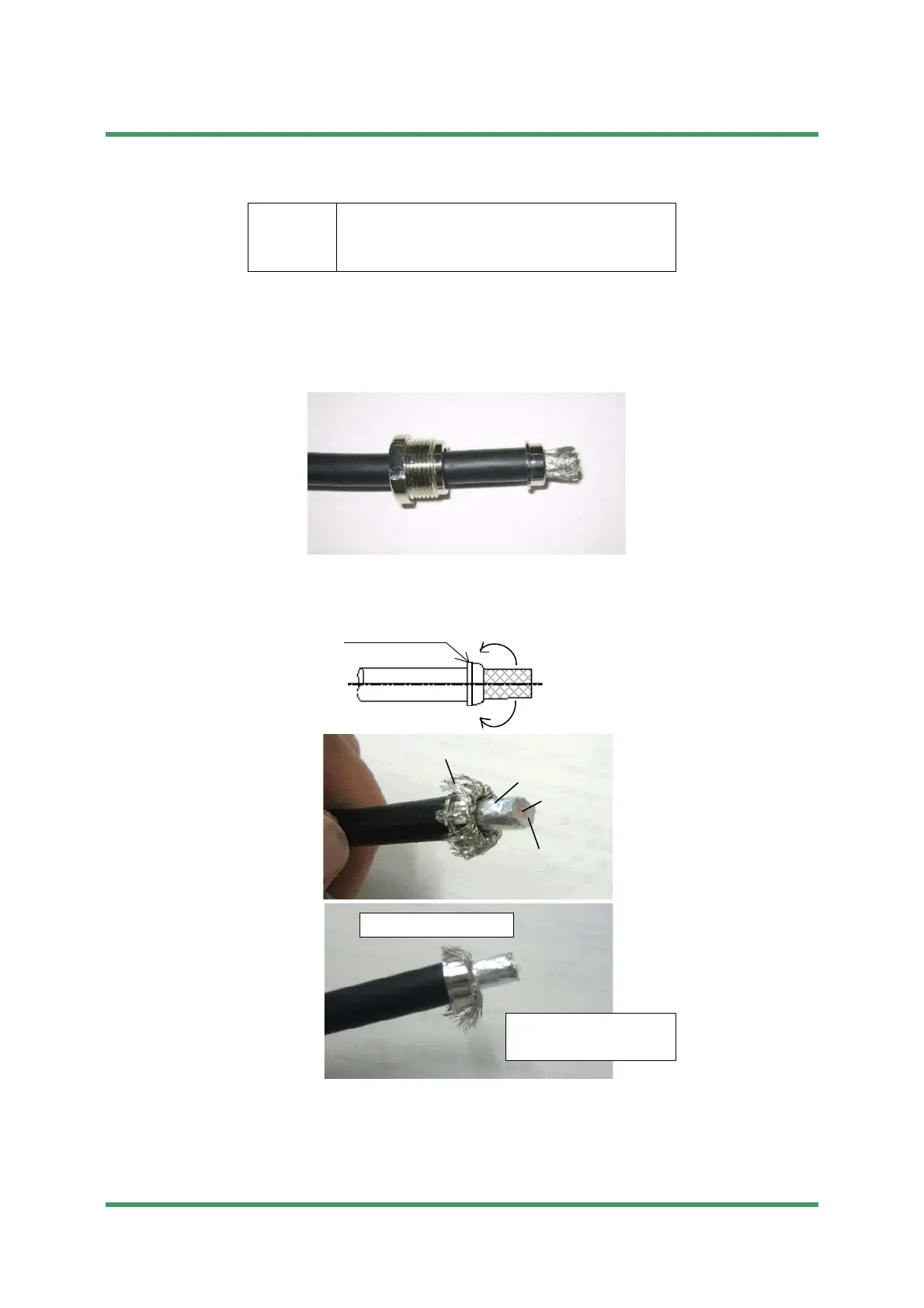

6-4 CABLE TERMINATION
NWD-107460-02E Installation
2 Insertion of parts.
(1) The clamp is inserted as shown.
(2) Braided wire is turned back to clamp side.
Tools
•knife
• cutter
•measure, etc.
Clamp
Braided wire
Insulator
Aluminum tape
Center Conductor
Defective example
The amount of the braid
is not uniform.
Submission Prohibited
NEC Internal Use Only
