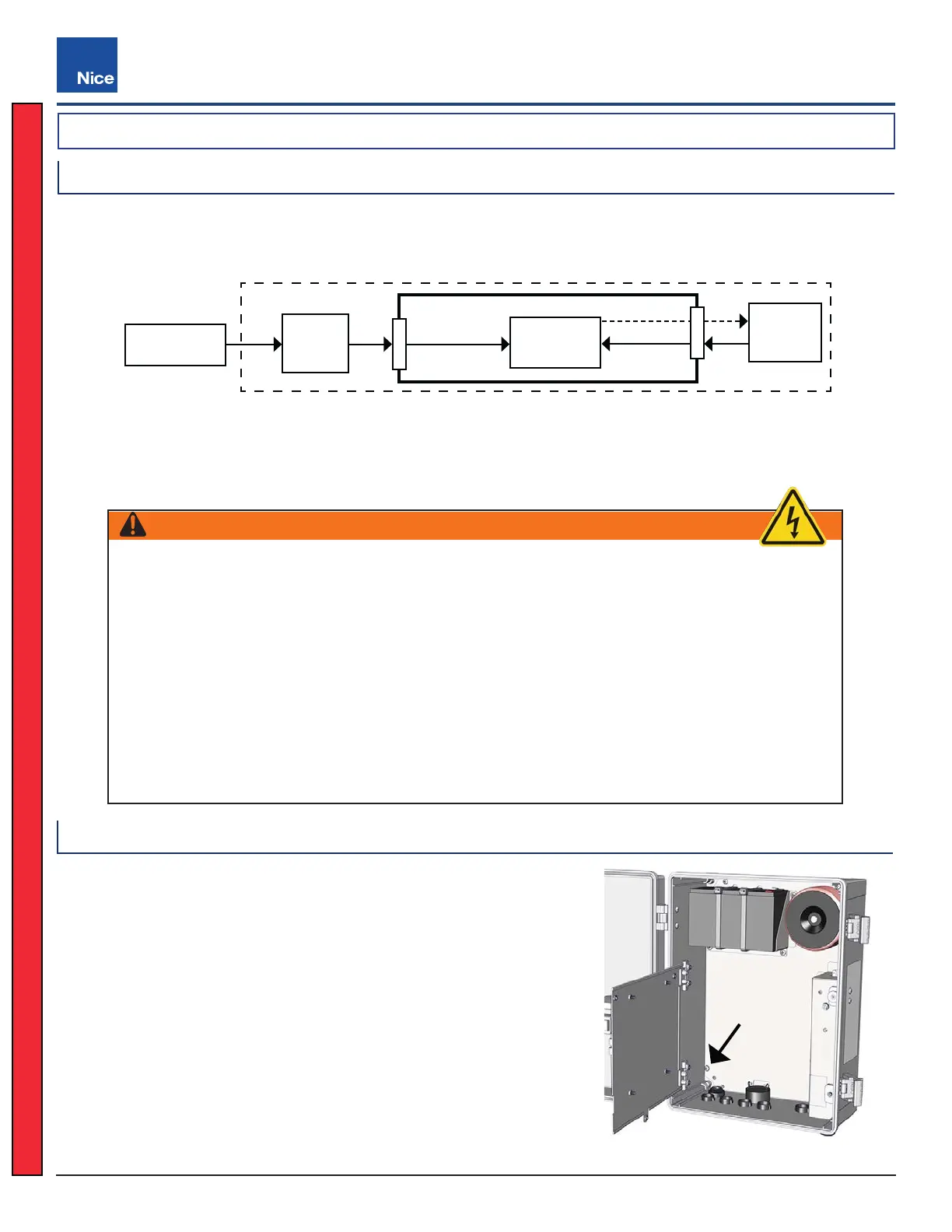

The ACBOX310 features an AC-to-DC power supply and 12VDC 8Ah backup battery. The basic power ow
through the ACBOX310 system is displayed in the diagram below:
The controller and linear actuator motors will run from the batteries during an AC power failure. The Mercury 310
controller itself operates ONLY on DC power.
AC-DC
Power
Supply
120V AC
Mains Power
AC DC DC
Charge
Battery
Input
Power
Conditioner
12V DC
Backup
Battery
DC/SOL
Power Input
Mercury 310
ACBOX310
ACBOX310 Power Diagram
BECAUSE AC POWER IS BEING RUN INTO THE CONTROL
BOX FOR CONVERSION TO DC, THE GATE OPERATOR
SYSTEM SHOULD BE GROUNDED THROUGH THE EARTH
GROUND IN THE AC MAINS WIRING SYSTEM (GREEN WIRE).
’ This ground connection will prevent dangerous currents in the
control box parts, the actuator, or the gate itself.
’ Nice recommends an 8 foot copper rod driven all the way into
the ground with a copper clamp and 12ga copper wire minimum.
’ Connect ground wire to the grounding lug in the lower left corner
of chassis interior (right).
WARNING
FOLLOW ALL SAFETY WARNINGS, AS FOLLOWS, WHEN INSTALLING AC POWER:
• Disconnect power to the gate operator by manually opening its dedicated circuit breaker and
unplug the battery connector on the Mercury control board before making any mechanical or
electrical adjustments.
• Use a 20 amp dedicated circuit breaker for each installed gate operator.
• Open dedicated circuit breaker supplying power to gate operator before a new installation or
making any modications to an existing installation of this gate operator.
• All wiring connections must be made by a qualied individual.
• Run individual circuits in separate U.L. Listed conduits. Do not combine high voltage (120VAC)
power wiring and low voltage (+12VDC to +24VDC) control wiring in the same conduits.
5.1 ACBOX310 POWER
5.1.1 Introduction and Warnings
Chassis Ground Location
ACBOX310
Earth
Ground Lug
1.1.1 Earth Ground
