Mercury 310 Automated Gate System
Installation and Programming Manual
6666
B
ENTER
EXIT
Obstruction
Loop
Shadow Loop
Exit Loop
(Inside Obstruction Loop)
A
Access Control
Device
(Card reader, etc.)
Minimum 6 feet
from gate.
Photo Eye Beam (Close Direction)

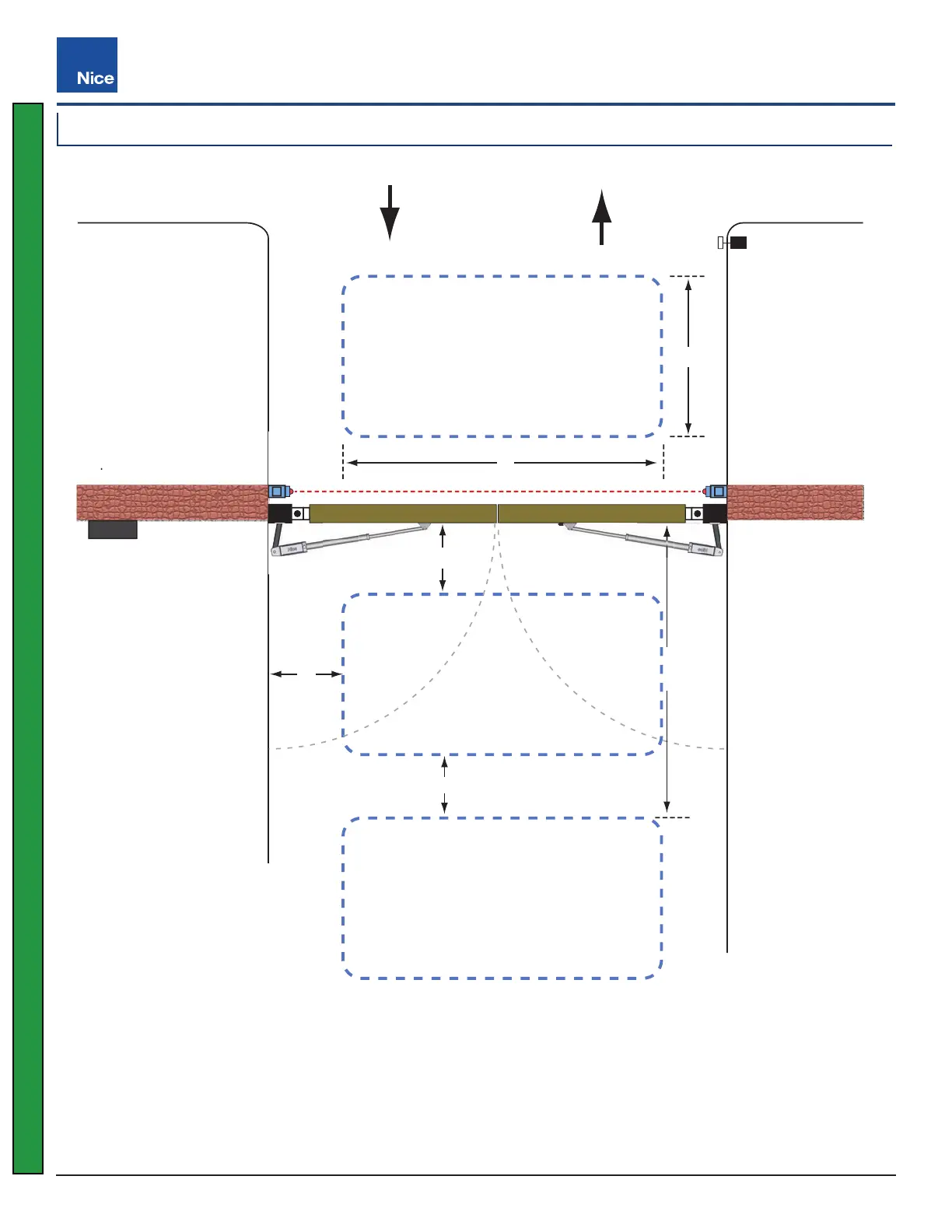

Vehicle Detectors and Loop Layout for Dual Gate Openings less than 28 feet*
PUBLIC SIDE
This layout illustrates a
bi-directional traffic system with
controlled access entry (card
reader, radio control, etc.) and a
free exit loop. The gate is closed
by a CLOSE TIMER. The
timer to close starts when all
loops are clear. The timer is
adjustable from 1 to 90 seconds.
For an exit only system, the
FREE EXIT loop is replaced by
an additional OBSTRUCTION
loop.
an additional OBSTRUCTION
loo
SECURE SIDE
C
D
E
F
* NOTE: A minimum of three (3) detectors are required for this type of gate.
D = Maintain 5ft (152cm) between
loop and edge of roadway. No vehicle
can pass through such a small area
and escape detection.
or Single Gate Openings less than 20 feet*
E = 4ft (122cm) to 6ft (183cm). Vehicle
must be able to pass from one loop to the
next without loss of detection.
F = The distance from gate to FREE EXIT
LOOP is equal to the gate panel length
plus 4ft (122cm).
C = Maintain 4ft (122cm) min.
DIMENSIONS:
B = 6 to 8ft (2m to 243cm)
A = 6 to 20 feet (2 to 6 meters)
10.6.5 Loop Layout Example (Dual Swing/TITAN)
Mercury 310
