Mercury 310 Automated Gate System
Installation and Programming Manual
5959
Mercury 310 Controller
Mercury 310 Controller
COM
COM
DIP
1 = ON
2 = ON
3 = ON
4 = OFF
FACTORY
SETTING
(LEFT)
N.O.
+24V
4 WIRE
(LEFT)
10K: ON
(RIGHT)

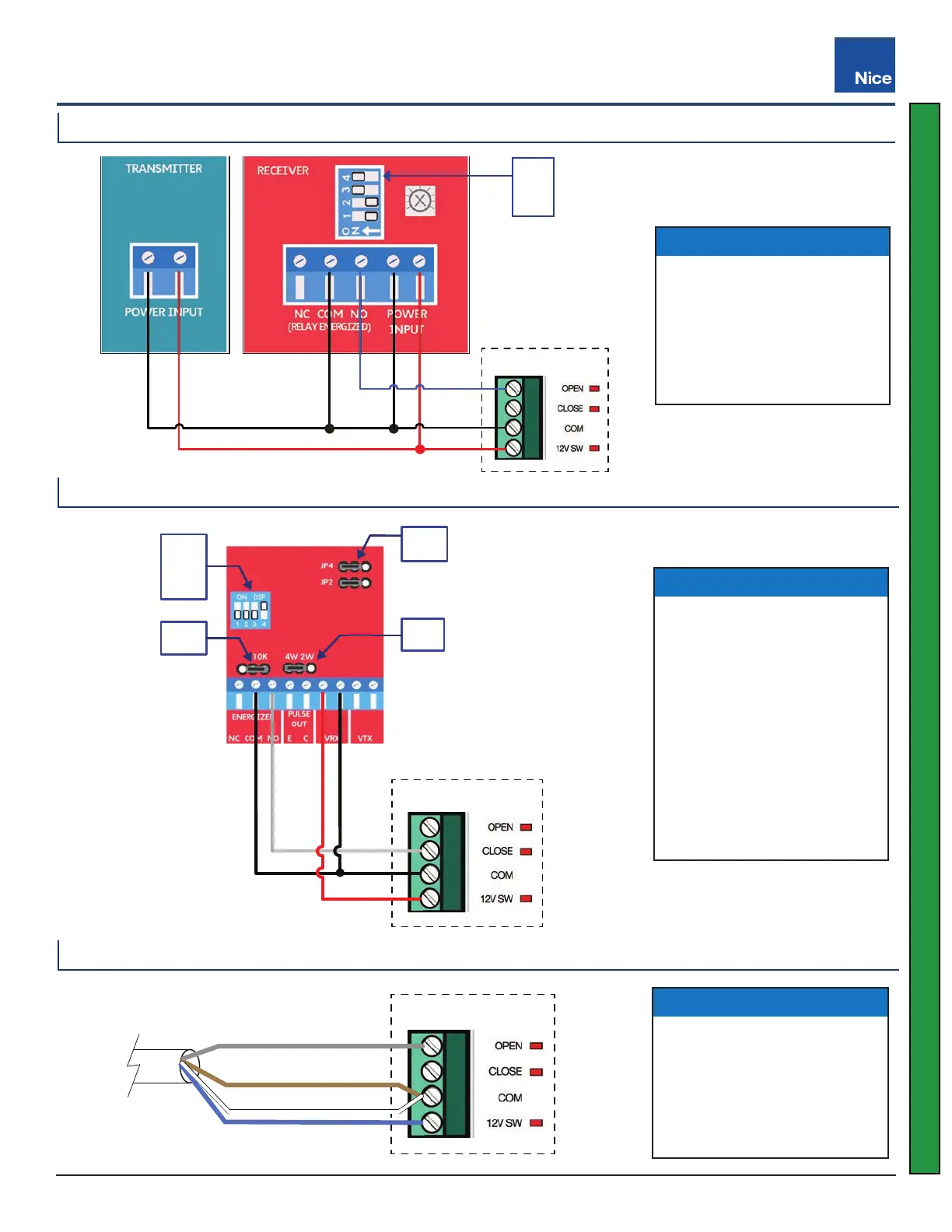

EMX IRB-MON (Photo Eye) Wiring
EMX IRB-RET (Photo Eye) Wiring
NOTICE
’ Set board as shown i per
diagram at left. Jumpers are
three pin type, and placed
as indicated (left or right).
’ Wiring shown is for sensor
in the close-direction. For
an open-direction sensor,
use the Open input. For
dual direction sensing,
jumper Open & Close inputs
together.
NOTICE
Wiring shown is for sensor
in the open-direction. For a
close-direction sensor, use
the Close input. For dual
direction sensing, jumper
Open & Close inputs together.
Mercury 310 Controller
CABLE
Gray
Brown
Blue
White
NOT USED: BLACK
NOTICE
Wiring shown is for sensor
in the open-direction. For a
close-direction sensor, use
the Close input. For dual
direction sensing, jumper
Open & Close inputs together.
EMX NIR-50-325 (Photo Eye) Wiring
Mercury 310
DIP
1 = OFF
2 = OFF
3 = ON
4 = ON
