Nice Mercury 310 Installation & Reference Manual

Mercury 310 Automated Gate System
Installation and Programming Manual
6868
(STEP MODE)
REMOTE INPUT
N.O.
+V
+V
+V
+V
N.O.
N.O.
N.O.
N.O.
N.O.
N.C.
COM
COM
COM
COM
N.O.
COM
N.O.
COM
10K Ω
SAFETY
SENSORS
LOOPS
BlueBUS
+12 VDC
+12 VDC
(OFF in Standby)
+12 VDC
GUARD
STATION
FIRE
DEPT.
Control
N.O.
Control
Control
LOOP 1
(Obstruct)
LOOP 2
(Shadow)
LOOP 3
(Exit)
Motor 1
CONNECTIONS
ACTUATOR
Motor 2
SOLAR PANEL or
HIGH CURRENT
DC POWER
BATTERY
12 DC
+
+
_
_
+12 VDC (OFF
in Standby)
ALARM
COM

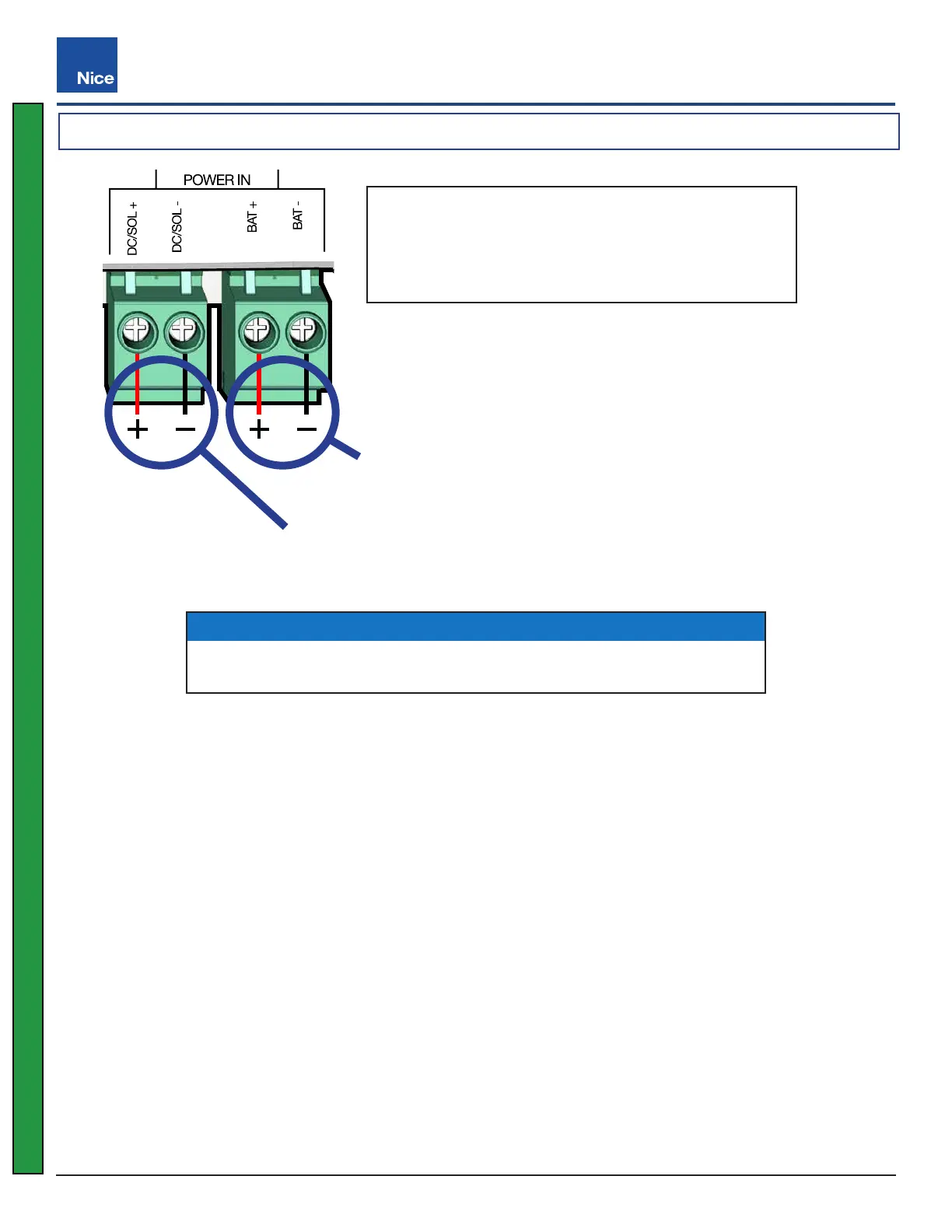

10.8 POWER INPUTS
DC/SOL+ = High Current DC/Solar Input (Positive)
DC/SOL- = High Current DC/Solar Ground (Negative)
BAT+ = +12VDC Battery Input (Positive)
BAT- = Battery Ground (Negative)
Battery Input: Must be a 12VDC
sealed lead acid (SLA) battery.
Solar/DC Input: Must be a 12V rated solar panel (23.5V Open
Circuit Voltage) or a 18-24V high current DC power source.
NOTICE
Refer to the separate installation sections for the ACBOX310 and
SolarBOX310 for model specic power requirements and wiring.
Mercury 310
www.ApolloGateOpeners.com | (800) 878-7829 | Sales@ApolloGateOpeners.com

Nice Mercury 310 Specifications

General

Brand	Nice
Model	Mercury 310
Category	Controller
Language	English
