Nice Mercury 310 Installation & Reference Manual

Mercury 310 Automated Gate System
Installation and Programming Manual
6767

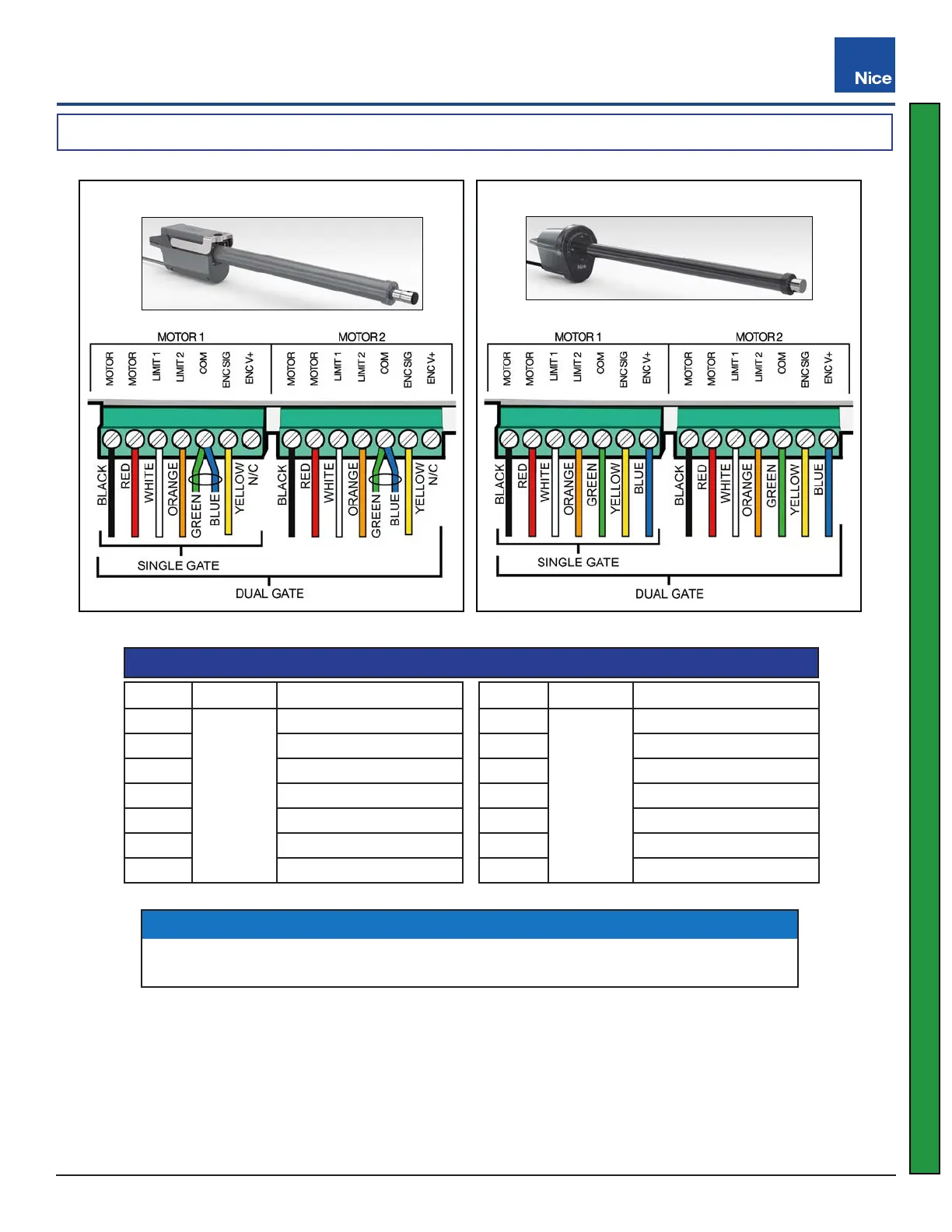

10.7 LINEAR ACTUATOR INPUTS
Apollo 816 Linear Actuator Wiring
TITAN 912L Linear Actuator Wiring
POS# MOTOR FUNCTION
1
MOTOR 1
Motor Power (+ or -)
2
Motor Power (- or +)
3
Limit 1
4
Limit 2
5
Common
6
Encoder Signal
7
Encoder Power (V+)
Linear Actuator Input Functions
POS# MOTOR FUNCTION
8
MOTOR 2
Motor Power (+ or -)
9
Motor Power (- or +)
10
Limit 1
11
Limit 2
12
Common
13
Encoder Signal
14
Encoder Power (V+)
NOTICE
POS# in table represents the pin positions from left to right (1-7 and 8-14).
Mercury 310
www.ApolloGateOpeners.com | (800) 878-7829 | Sales@ApolloGateOpeners.com
