Mercury 310 Automated Gate System
Installation and Programming Manual
6060
Mercury 310 Controller
Relay Tamper
12-30V DC/AC
60Hz, 100mA
(Non-Polarity)
N.C. N.C.N.O. COM.
COM
N.O.
Mercury 310 Controller
Mercury 310 Controller

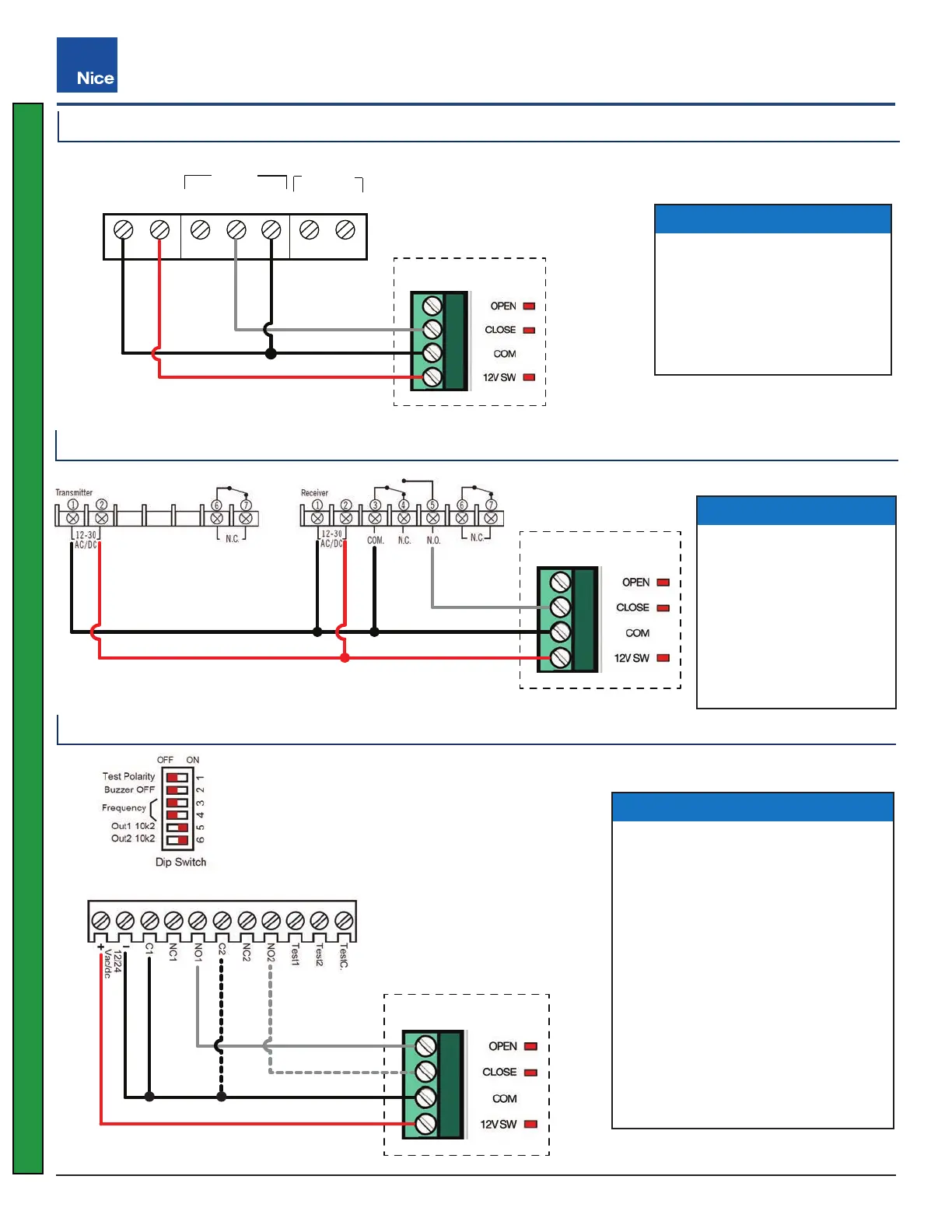

Seco-Larm Enforcer Retro-Reective (E-931-S50RRGQ) (Photo Eye) Wiring
Seco-Larm Enforcer Through-Beam (E-960-D90GQ) Wiring
Transmitter Solutions iGaze RE Kit (Photo Eye) Wiring
NOTICE
’ Dashed lines indicate the
secondary wiring connections if
an additional sensor is wired to
the inputs. See manufacturer’s
instructions for details.
’ Wiring shown is for sensor in
the open-direction. For a close-
direction sensor, use the Close
input. To add a close-direction
sensor, wire as shown with
secondary wiring (dotted lines).
For dual direction sensing, jumper
Open & Close inputs together.
NOTICE
Wiring shown is for sensor
in the close-direction. For an
open-direction sensor, use the
Open input. For dual direction
sensing, jumper Open & Close
inputs together.
NOTICE
Wiring shown is for
sensor in the close-
direction. For an open-
direction sensor, use
the Open input. For dual
direction sensing, jumper
Open & Close inputs
together.
Mercury 310
