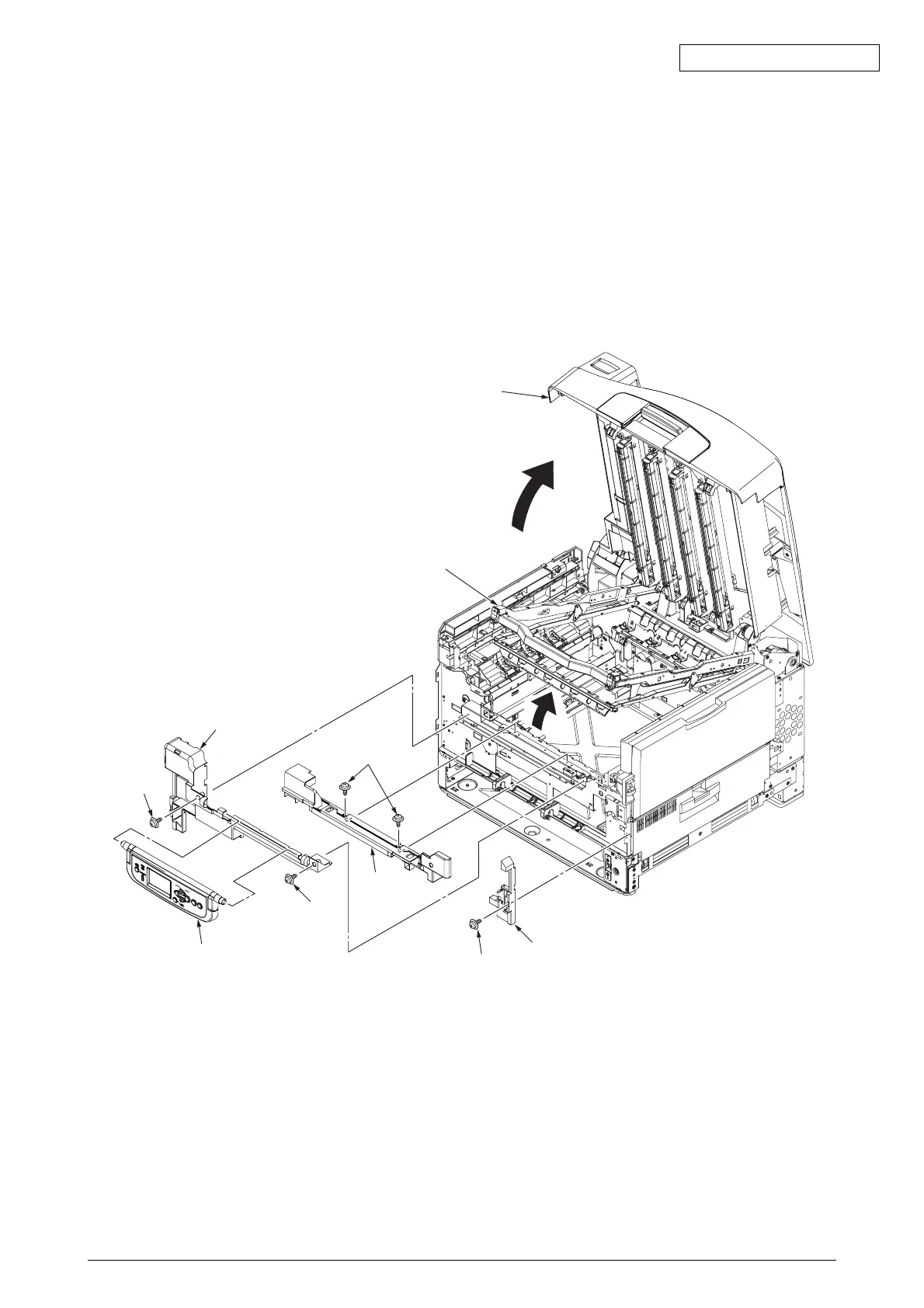

4.3.4 Cover Assy-OP Panel, Cover-Guard (R), Cover-Guard (Front) and Cover-Guard (L)
(1) Open Cover Assy-Top 1, then lift Basket-Assy 2.
(2) Remove Cover Assy-OP Panel 3 from its supporting point.
(3) Unscrew screw 4, remove the hinges, and then remove Cover-Guard (R) 5.
(4) Unscrew 2 screws 6, then remove Cover-Guard (Front) 7.
(5) Unscrew 2 screw 8, then remove the 2 hinges and remove the Cover-Guard (L) 9.
