Oki C9600 Service Manual

Oki Data CONFIDENTIAL
42930511TH Rev. 2 115 /
2
3
4
7
5
9
8
6
1
1

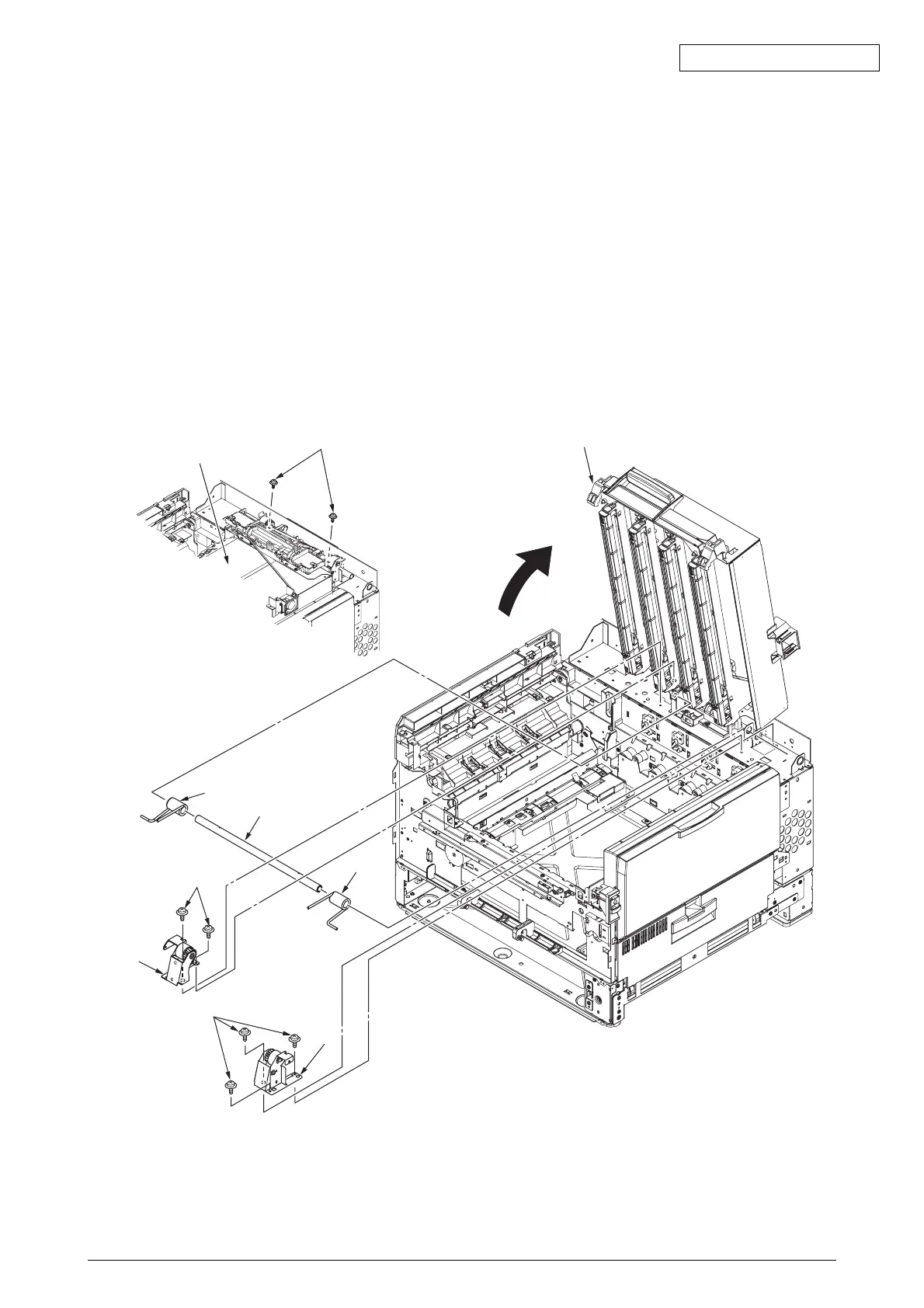

4.3.9 Plate Top Assy
(1) Remove Job-Offset-Assy/Basket-Assy. (Refer to Section 4.3.6)
(2) Lift back Plate-Top Assy 1, then unscrew 2 screws 2.
(3) Lift forward Plate-Top Assy 1, then unscrew 3 screws 3 and remove Plate-Dumper-Assy
(R)4.
(4) Unscrew 3 screws 5, then remove Plate-Dumper-Assy (L) 6.
(5) Remove Shaft-Top 7, Spring-Torsion-BAS (L) 8, and Spring-Torsion-Top-R 9, then
remove Plate-Top Assy 1.
