Oki C9600 Service Manual

Oki Data CONFIDENTIAL
42930511TH Rev. 2 19 /
1.5.3 Network Interface Specifications
1.5.3.1 Network Interface
Network protocols: TCP/IP, NetWare, Ether Talk, & NetBEUI
1.5.3.2 Network Interface Connector and Cable
(1) Connector
100 Base-TX/10 Base-T (automatically switched and not available simultaneously)

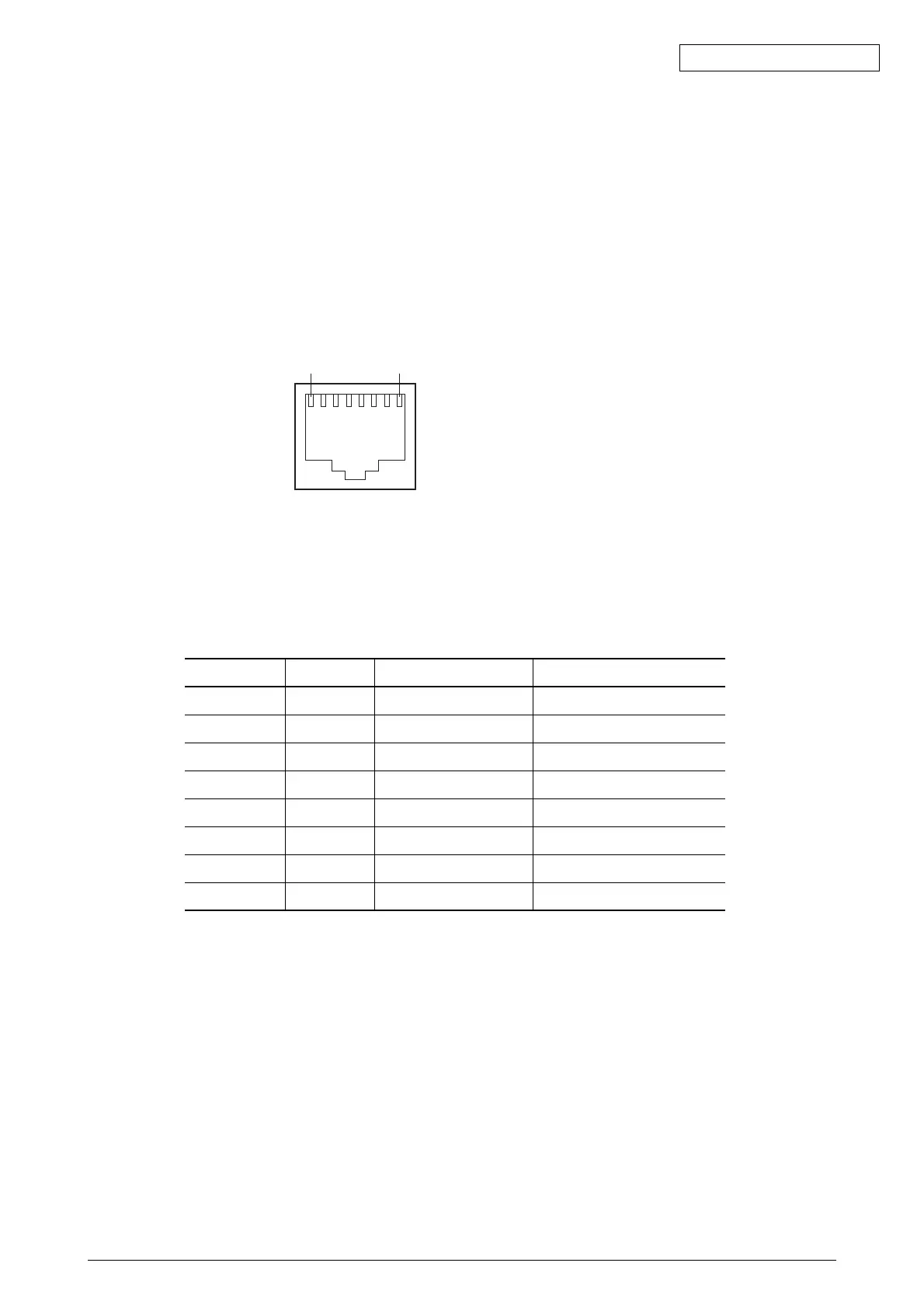

Connector pin layout
18
(2) Cable
Unshielded twisted pair cable with RJ-45 connector (Category 5 is recommended.)
1.5.3.3 Network Interface Signals
Pin No. Signals Signal Direction Functions
1 TXD+ FROM PRINTER Send Data +
2 TXD- FROM PRINTER Send Data -
3 RXD+ TO PRINTER Received Data +
4 - - Unassigned
5 - - Unassigned
6 RXD- TO PRINTER Received Data -
7 - - Unassigned
8 - - Unassigned
