Oki Data CONFIDENTIAL
42930511TH Rev. 2
120 /
5
1
1
3
6
4
2
5

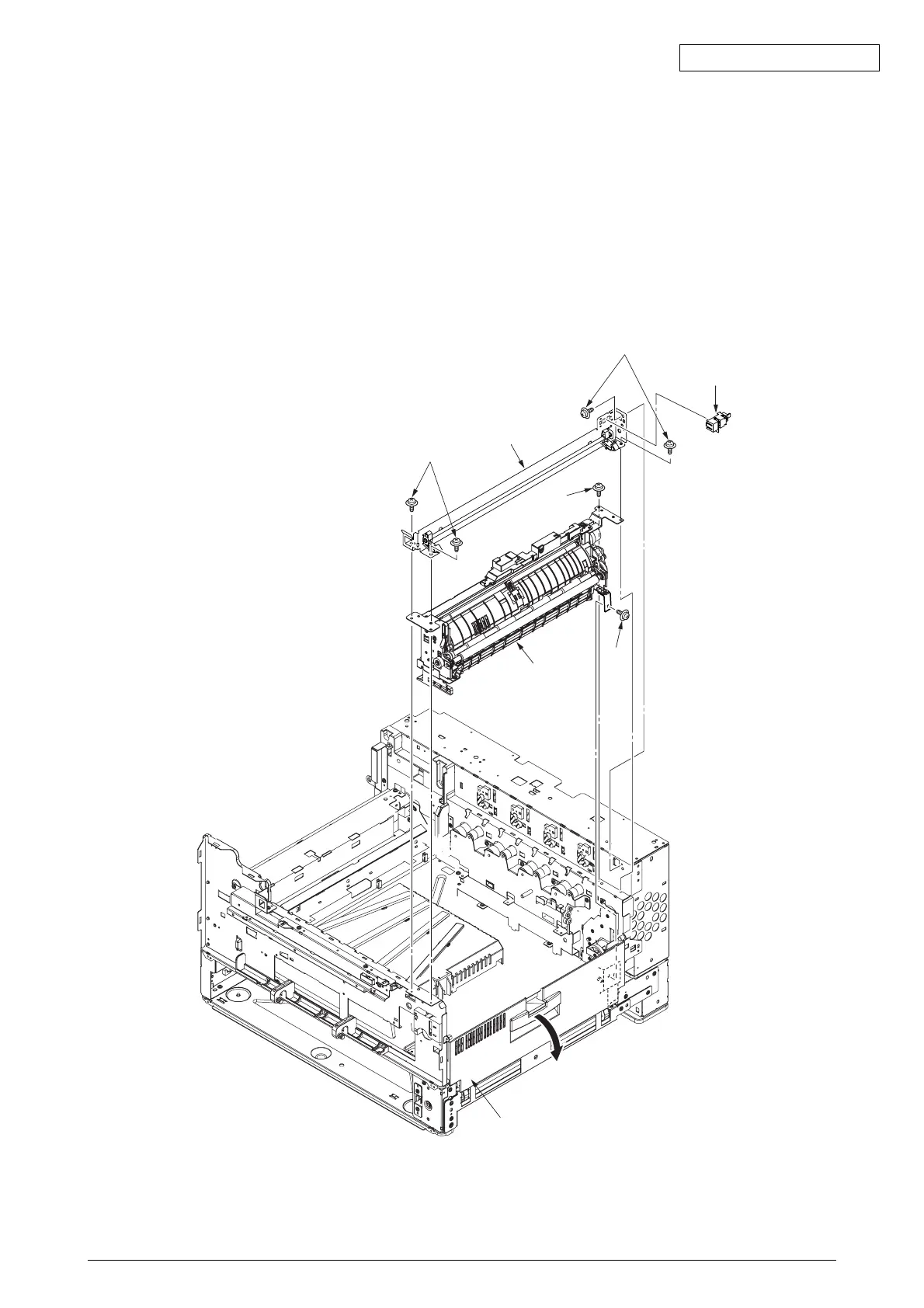

4.3.13
FDR Unit-Resist
(1)
Remove the FDR Unit-MPT. (Refer to Section 4.3.12)
(2)
Unscrew the 4 screws
1
and disconnect connector
2
, then remove Plate Assy-MPT Lock
3
.
(3)
Open the Cover-Guide-1st-Assy
4
in the arrow direction.
(4)
Unscrew 2 screws
5
, then remove FDR Unit-Resist
6
.
119
