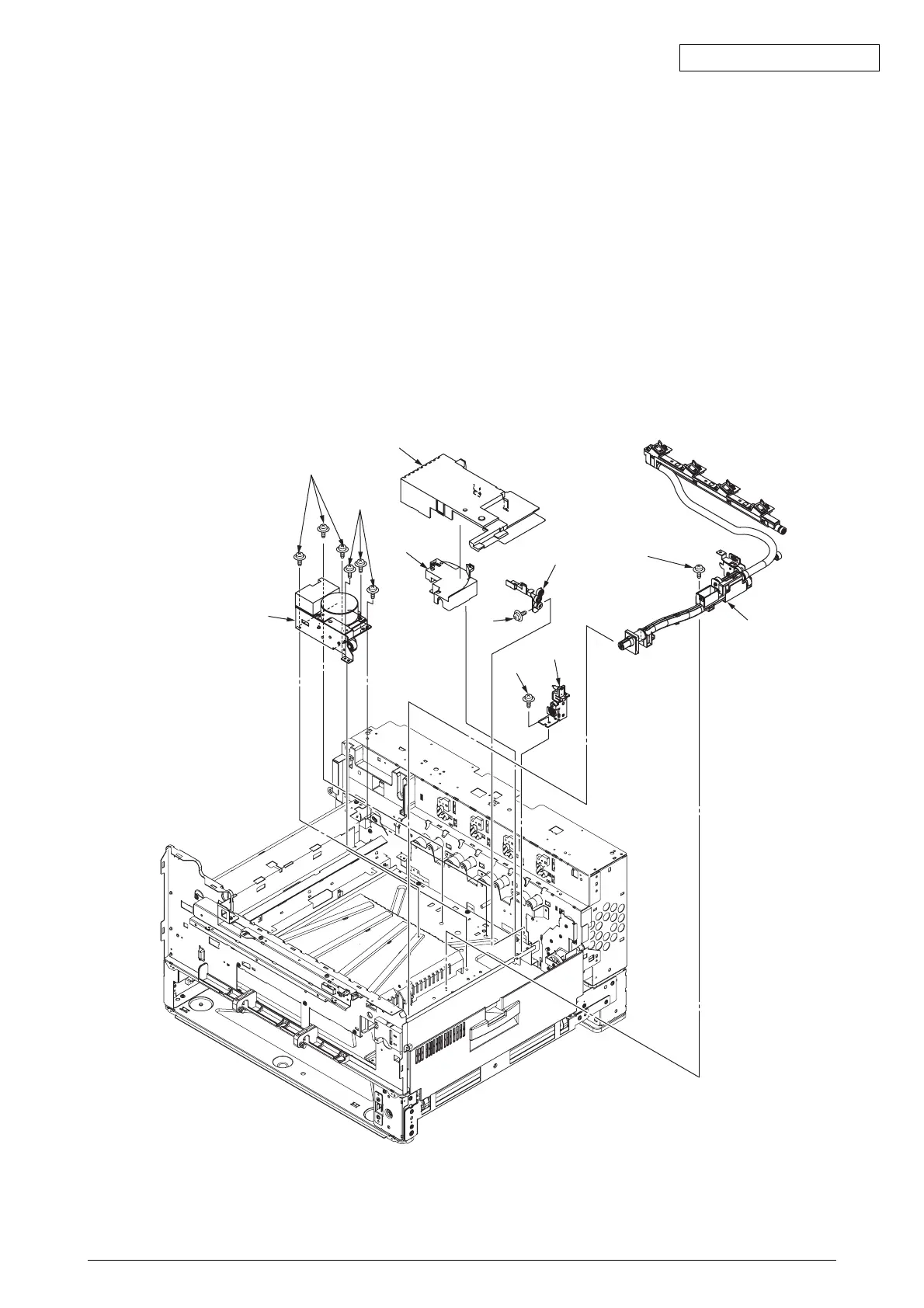

4.3.14 Duct Assy
(1) Remove the hinge, then remove Cover-Middle 1.
(2) Remove the hinge, then remove Guide Tube (L) 2.
(3) Unscrew 2 screws 3, then remove Duct-Assy-Toner 4.
(4) Unscrew screw 5, then remove Gear-Duct-B-Assy 6.
(5) Unscrew screw 7, then remove Gear-Duct-ID Assy 8.
(6) Unscrew 6 screws 9, then remove Duct-Drive-Assy 0.
[Precautions in Removal]
When removing the Duct-Drive-Assy 0, be sure to read 4.3.11 "Cover-Screw."
