Oki Data CONFIDENTIAL
42930511TH Rev. 2
124 /
4
5
1
2
1
3

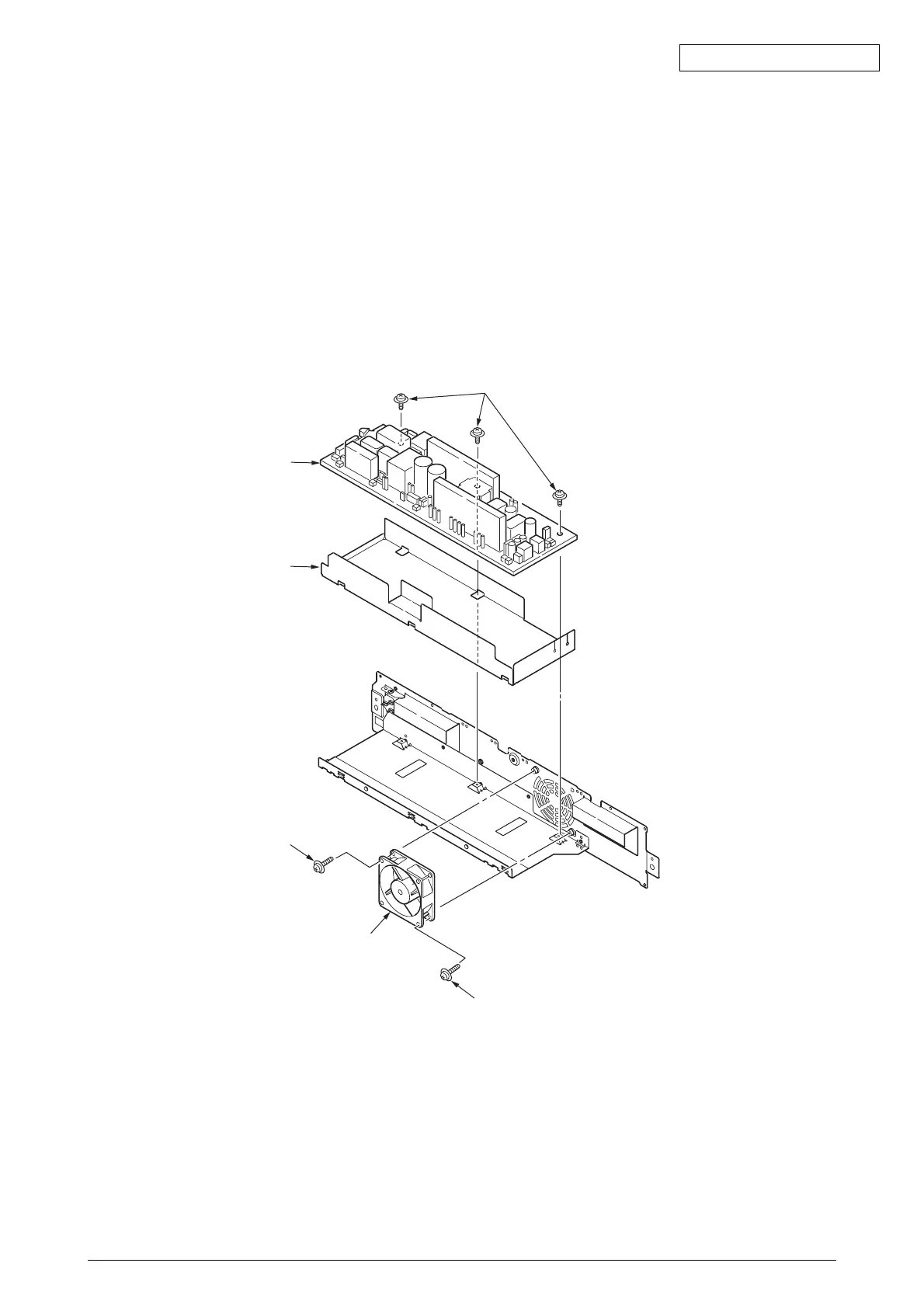

4.3.17
Low Voltage Power Source Assy and Motor-FAN
(1)
Remove the Power Unit. (Refer to Section 4.3.16)
(2)
Unscrew the 3 screws
1
, then remove the low Voltage Power Source Assy
2
, and Film-
Insulation
3
.
(3)
Unscrew the 2 screws
4
, then remove the connector and Motor-FAN
5
.
123
125
