Oki Data CONFIDENTIAL
42930511TH Rev. 2
169 /
(5)

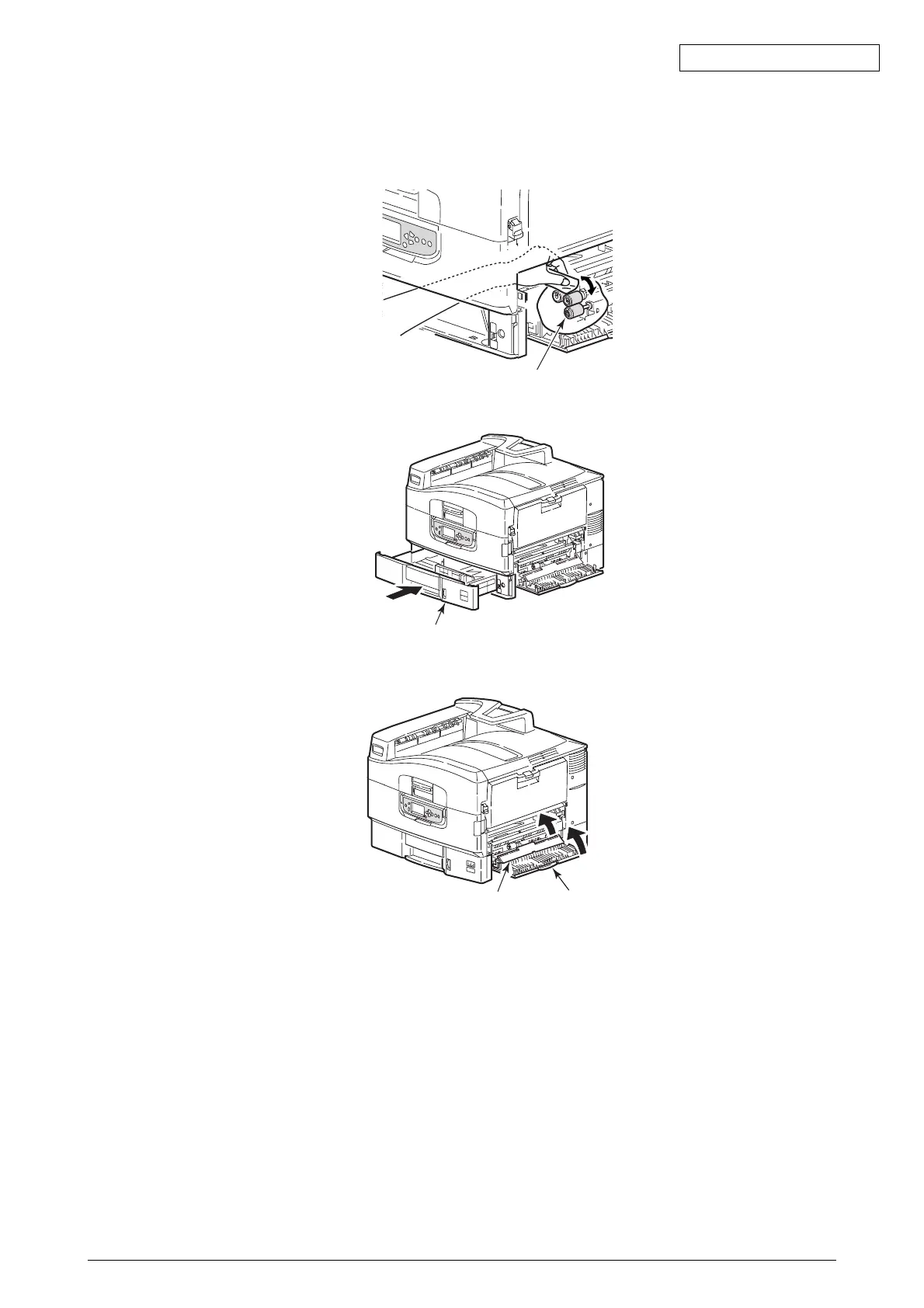

Put your hand into the opening where the Tray has been placed. Clean the three Feed Rollers
using a soft wet cloth.
If it is hard to wipe the roller, put your hand from the Tray 1 Side Cover.
(6)
Insert the Tray 1 back into place.
(7)
Close the Tray 1 Side Cover.
Cleaning of the Feed Rollers is completed.
Feed Roller (3 rollers)
Tr
a
y
1
T
ray 1 Side Cover
Paper Guide
168
170
