Clearing Media Misfeeds
9-8
Clearing a Media Misfeed in the Machine
1

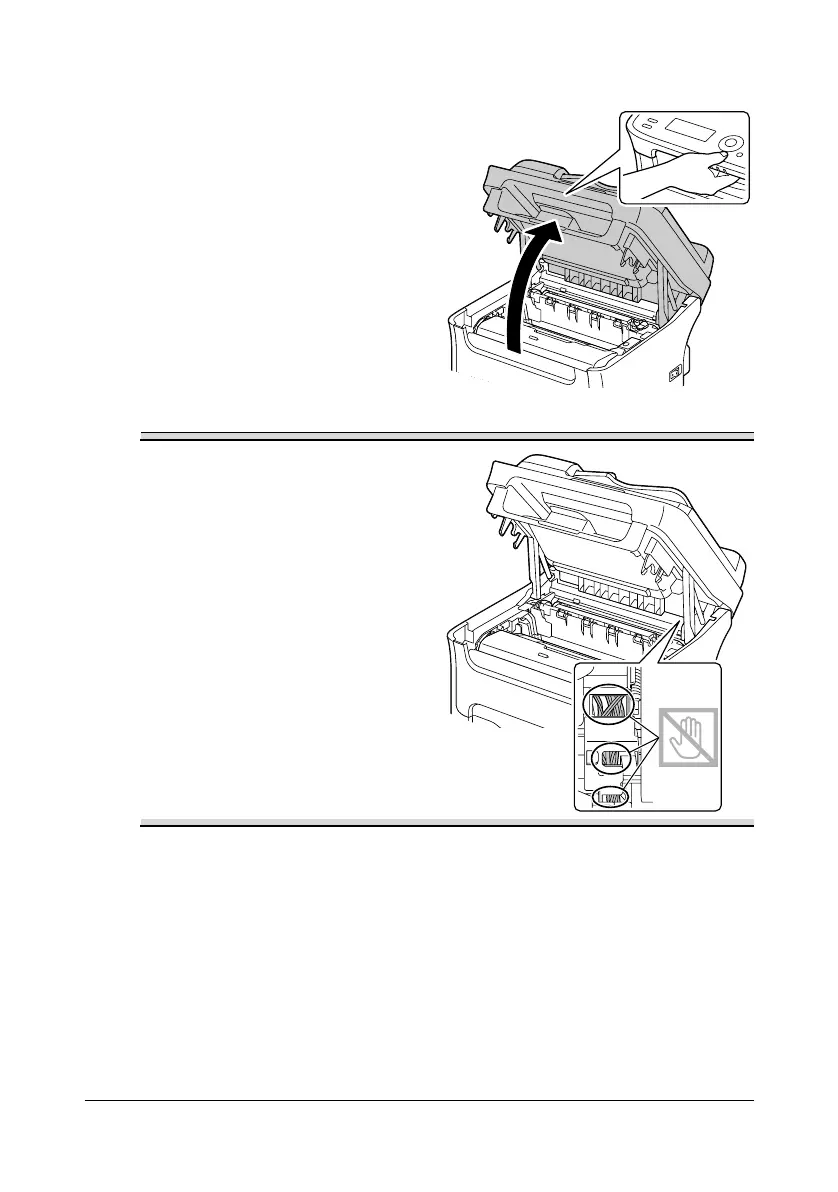

Open the scanner unit.
"
If there is paper in the
output tray
, remove it,
and then fold up
the out-
put tray before opening
the scanner unit.
Note
Do not touch the wires and flat
cable shown in the illustration
.
209
211
