Chapter 4 Reprocessing Operations
99
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
When loading a 180 or older series endoscope and a 190
series endoscope
1
simultaneously
When placing the endoscope connector of the second
endoscope, hold the endoscope connector of the first
endoscope to avoid contact. Otherwise, the endoscope
connector of the first endoscope may be damaged by the
contact with S-cord connector mount of the second
endoscope.
As shown in Figure 4.22, put the 190 series endoscope
1
connector in place
while slightly lifting the endoscope connector of the 180 or older series
endoscope to the left (direction of arrow 1).

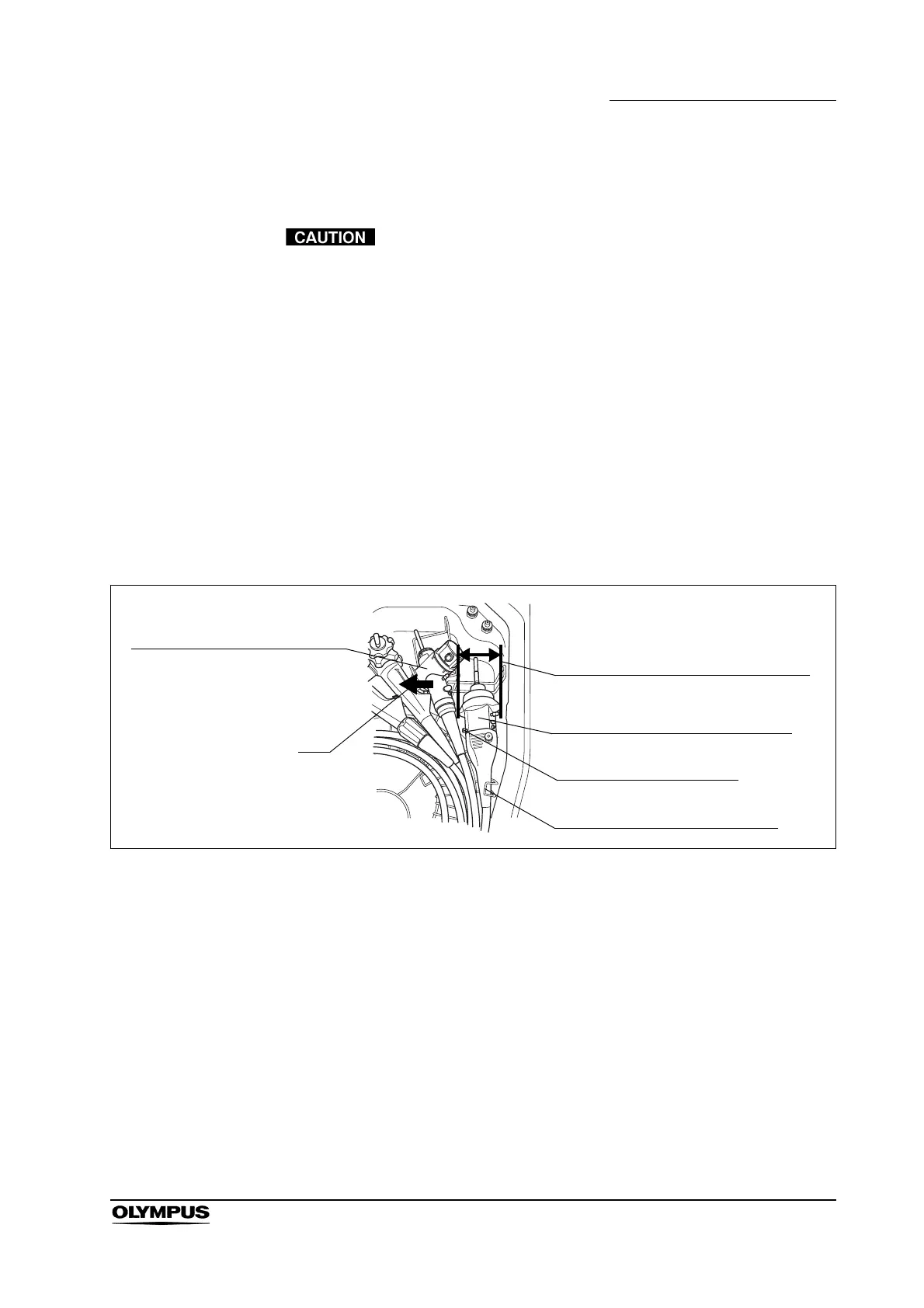

Figure 4.22
As shown in Figure 4.23, tilt the endoscope connector of the 180 or older series
endoscope in place while slightly lifting the 190 series endoscope
1
connector to
the left (direction of arrow 1).
•Pattern 1
First endoscope : 180 or older series endoscope
Second endoscope :
190 series endoscope
1
•Pattern 2
First endoscope :
190 series endoscope
1
Second endoscope : 180 or older series endoscope
Place the universal cord on the
inside of the hook
Endoscope connector of the 190
series
1
(second endoscope)
Put the endoscope connector of the
second endoscope in this area
S-cord connector mount
1
Endoscope connector of the
180 or older series endoscope
(first endoscope)
1 190 series endoscopes may not be available in some areas.
