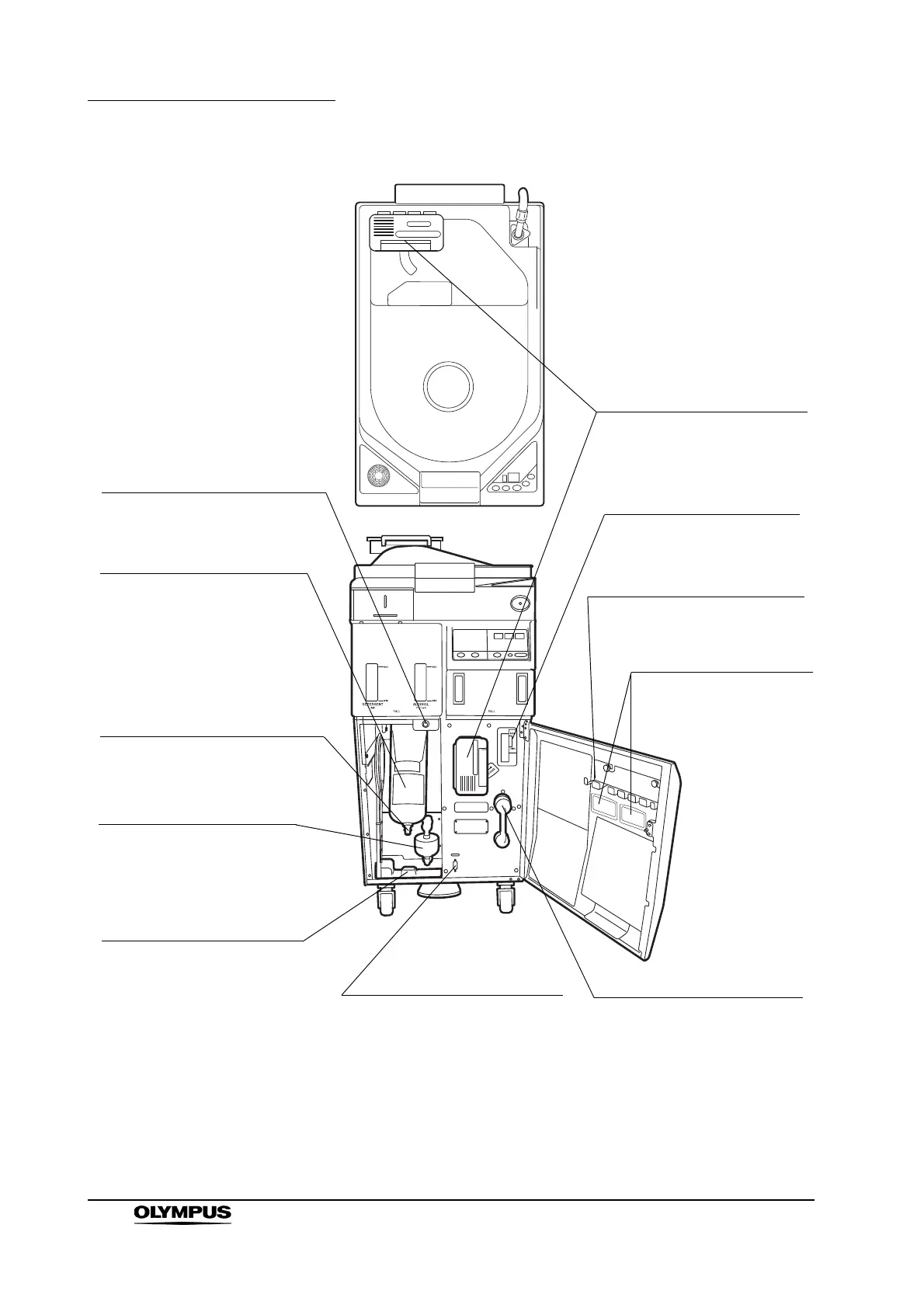

Connector above water filter
housing
For use in draining water and air
from the water filter housing.
Water filter (housing)
Accommodates the 0.2 micron
internal water filter.
Connector below water filter
housing
For use in draining water from the
water filter housing.
Air filter
Filters the supply air.
Water tray
Collects water during
maintenance such as the
water filter replacement.
Maintenance terminal
Used for connecting ancillary
equipment (for trained service
personnel only).
Disinfectant removal port
Used to check the disinfectant
manufacturer’s recommended
concentration or drain the
disinfectant solution.
(Remove the rubber cap and
attach the drain connector or the
disinfectant removal tube.)
Accessory holder
Used to store the connecting
tubes, etc.
Disinfectant solution
indicator
Used to check the amount of
remaining disinfectant
solution.
Gas filters (cases)
Accommodates the gas filters
for removing the odor and vapor
of the disinfectant solution.
Card holders
Hold the scope ID master
card and user ID master
card.
