Outputting Data and Controlling Operation through PROFINET
FQ2-S/CH User’s Manual
for Communications Settings
145
3
Controlling Operation and Outputting Data with an
Ethernet Connection
Setting Up EtherNet/IP Communications (PROFINET)
Setting Network Settings in the Sensor
Set the IP address of the Sensor according to the network where the external devices, such as PLCs, are
connected.
(Setup Mode) − [Sensor settings] − [Network] − [Ethernet] − [IP address setting]
1 Press [Fixed].
2 Set the IP address and subnet mask according to the network where the external devices are con-
nected.
To use PROFINET communications, do not automatically assign an IP address to the Vision Sensor. Set a specific IP
address and do not change it.

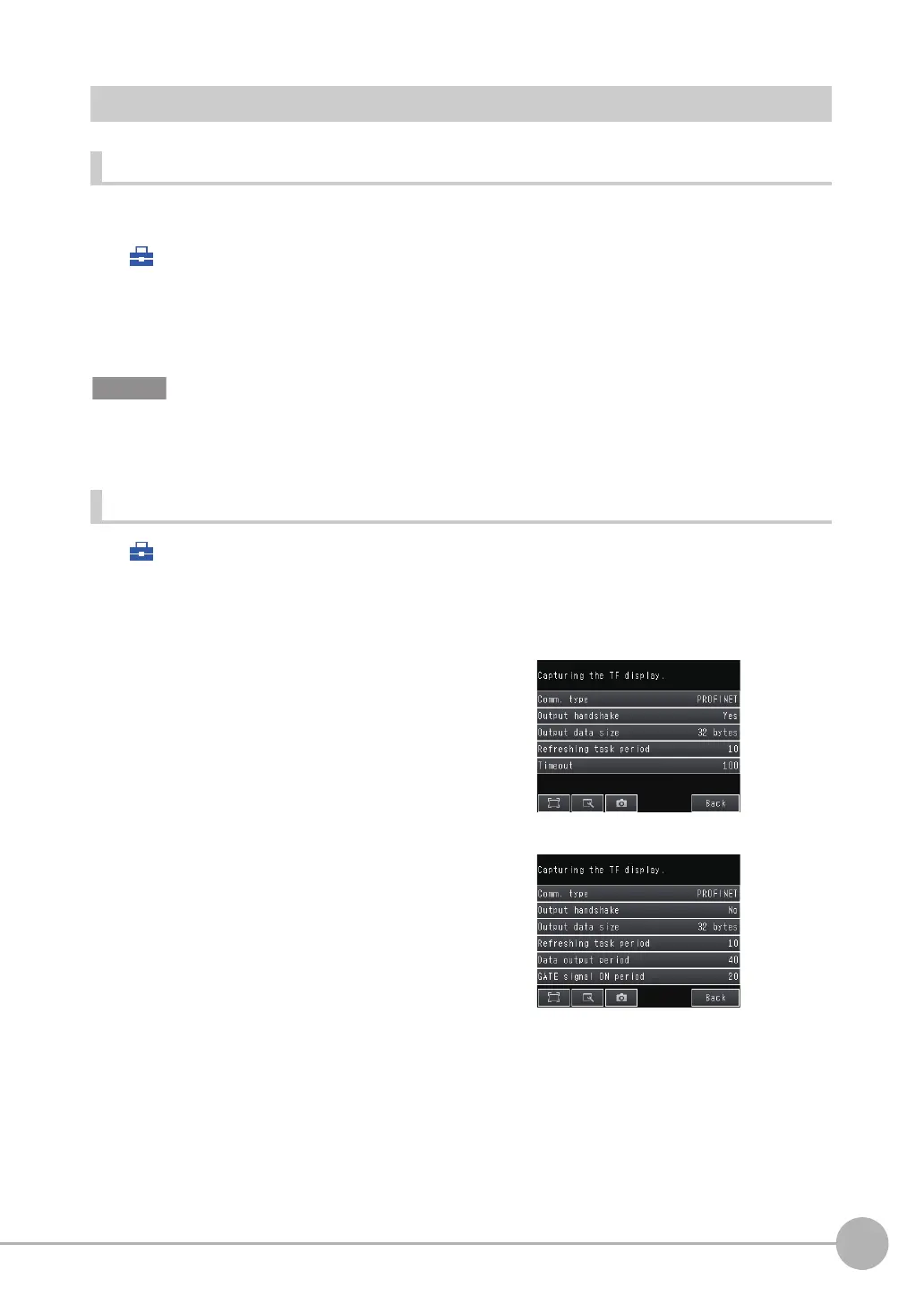

Initial Settings for PROFINET Communications
(Setup Mode) − [Sensor settings] − [Data output] − [Fieldbus data output]
1 Press [Communication type].
2 Press [PROFINET].
3 Set the PROFINET communications parameters as
described in the following table.
[Output handshake] Set to [Yes]
[Output handshake] Set to [No]
▲
Important
▲
