Omron FQ2-S Series User Manual

Controlling Operation and Outputting Data with the Sensor's Standard Parallel Connection
34
FQ2-S/CH User’s Manual
for Communications Settings
2-1 Controlling Operation and Outputting Data with the Sensor's Standard Parallel Connection
This section explains how to directly connect the Sensor to external devices with the I/O cable, and control the
Sensor and execute output.

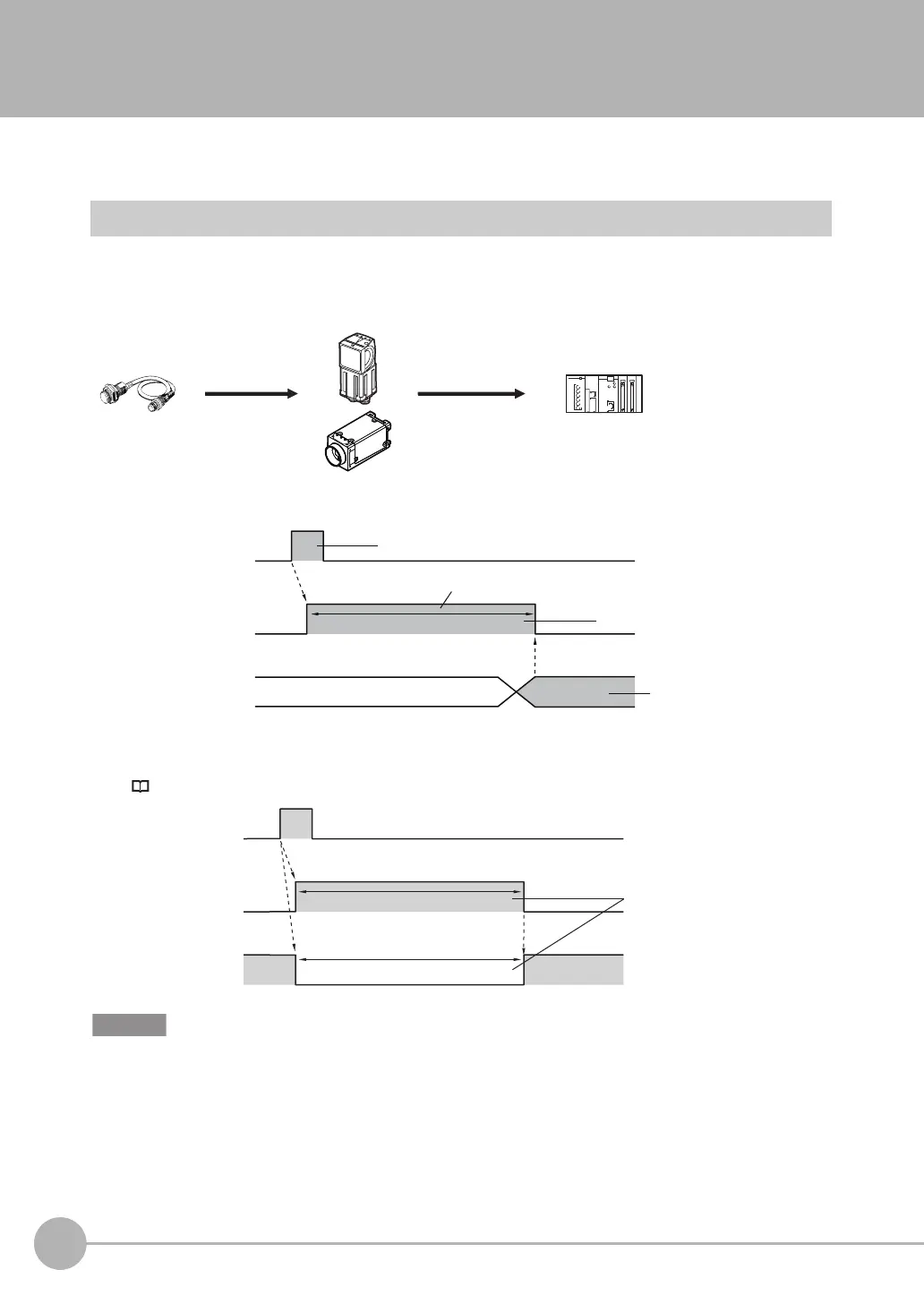

Basic Operation with a Parallel Connection
This section describes the basic connections and signal flow with external devices.
With the default settings, the Sensor operates in the following manner.
*1: You can also use the READY signal, which will turn ON when a measurement trigger can be input.
You can assign the READY signal to any output from OUT0 to OUT2.
( Getting Individual Judgements and Expression Judgements: p. 41)
• Create the ladder program to control the TRIG and IN5 input signals so that they do not turn ON while the BUSY
signal is ON. If not, a TRIG input error will occur and the ERROR signal will turn ON.
• Operation When the Sensor Power Supply Is Turned ON
The BUSY signal will operate as shown below when the Sensor’s power supply is turned ON.
Create the ladder program in the PLC or other external device so that the BUSY signal is ignored while it turns OFF,
ON, and OFF again for up to 5 s after the power supply is turned ON.
(2) Measurements
performed
(1) Measurement
trigger input
(3) Judgement
results output
Trigger Sensor
FQ2 Vision Sensor
External device
(3) Judgement results
output (overall
judgement: OR
signal)
Retained until the next
judgement results are
output.
Turned ON when overall judgement is NG.
(2) Executing
measurement
processing
(BUSY signal)
This signal stays ON until the next
measurement trigger can be input.
*1
You can confirm if measurements are in progress.
The trigger to perform measurements once is turned ON.
(1) Measurement
trigger input
(TRIG signal)
ON
OFF
ON
OFF
ON while measure-
ments are in progress
Measurement
trigger input
(TRIG signal)
OFF
ON
BUSY signal
OFF
ON
OFF
ON
READY signal
ON while measurements are in progress
OFF while measurements are in progress
When the measurement
trigger is received, the BUSY
signal turns ON and the
READY signal turns OFF.
Important
FQ2-S_CH_comm.book 34 ページ ２０１４年６月２６日 木曜日 午前１１時４７分
