2-3
INST
ALLA
TION AND
CONNECTION
Inst

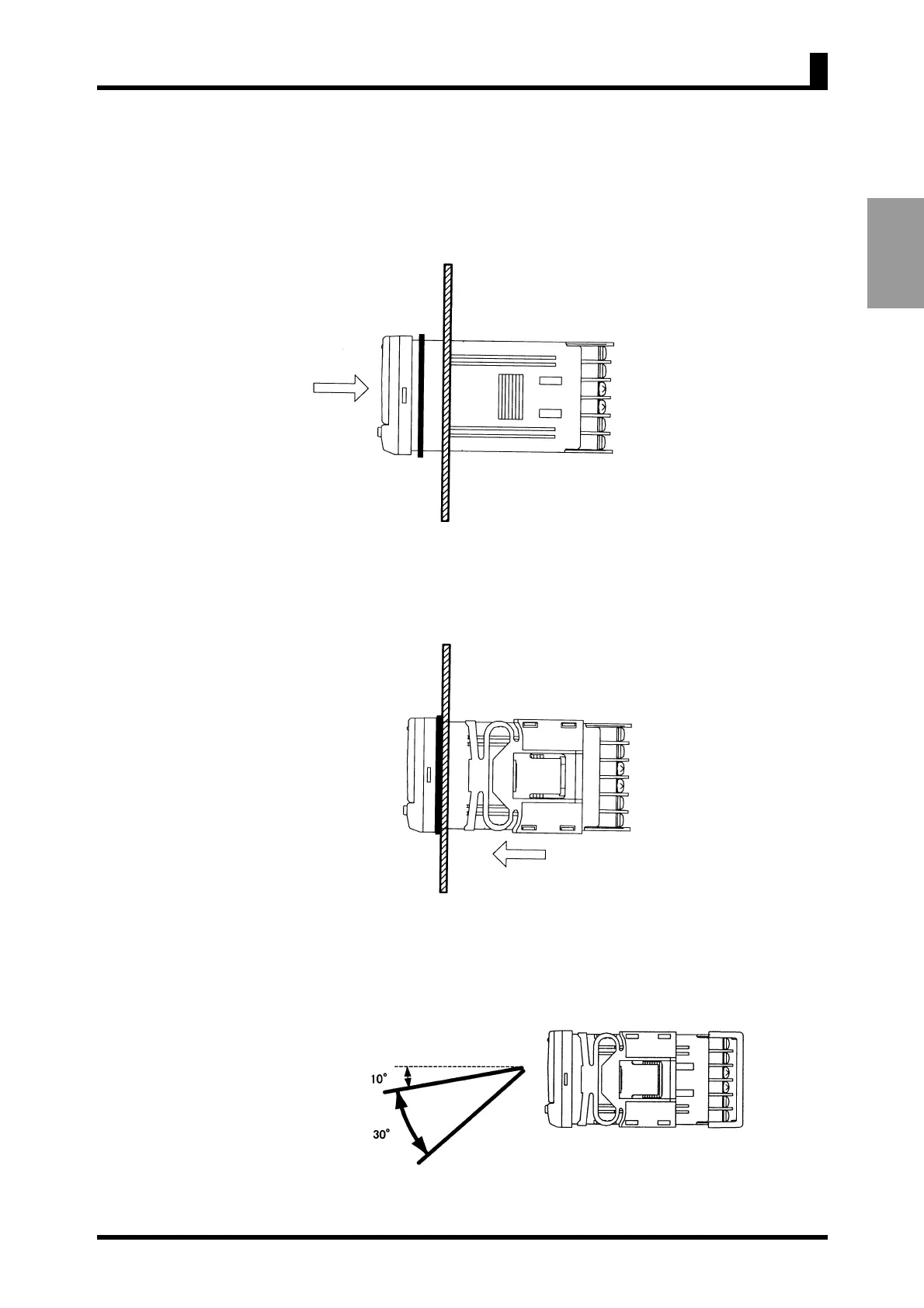

allation Procedure
(1)
Fit the product into a rectangular panel cutout for installatio
n.
(2)
If you want to make the product waterpr
oof, insert a watertight packing in the
product.
(3)
Put the adapter in the fixing grooves
on the left and right surfaces of the rear
case, push it until it contacts with the panel, and fi
x it.
V
isibility of LCD
K3MA is designed to obtai
n optimum visibility from the angle shown bel
ow
.
2-1 Installation
22
24
Table of Contents
Default Chapter
3
General Precautions
3
Preface
3
Safety Precautions
6
Notice
7
Alphabetic Characters for Setting Data
10
Table of Contents
11
Chapter 1 Introduction
13
Main Features of the K3MA
14
Model Number Legend
16
I/O Circuit
17
Parts Name and Function
19
Chapter 2 Installation and Connection
21
Installation
22
Installation Procedure
23
I/O Terminal Connections
24
Power Supply
25
Chapter 3 Application Examples
28
Monitoring the Liquid Level (K3MA-J)
28
Monitoring the Internal Pressure of a Tank (K3MA-J)
30
Monitoring the Temperature of an Industrial Furnace (K3MA-L)
32
Monitoring the Feed Speed of a Conveyer (K3MA-F)
34
Monitoring the Rotational Speed by Monitor Output of an Inverter (K3MA-F)
36
Chapter 4 Initial Setting
39
K3MA-J (Process Meter)
40
K3MA-L (Temperature Meter)
42
K3MA-F (Frequency/Rate Meter)
44
Chapter 5 Operation
47
Levels
48
Moving Among Levels
49
Parameters
51
Set Values
52
Viewing and Changing out Set Values
53
Setting/Releasing the Forced-Zero Operation (K3MA-J)
55
Displaying/Resetting the MAX/MIN Value
56
Specifying the Temperature Input Correction Value (K3MA-L)
57
Key Protect Setting
58
Selecting an Input Type (K3MA-J/K3MA-L)
60
Selecting an Input-Pulse Frequency (K3MA-F)
62
Specifying the Scaling Factor (K3MA-J)
63
Specifying the Scaling Factor (K3MA-F)
65
Specifying the Decimal Point Position (K3MA-J/K3MA-F)
68
Specifying the Temperature Unit (K3MA-L)
69
Selecting a Comparative Output
70
Clearing All Parameters
71
Specifying the Number of Measurements for Averaging
72
Specifying the Hysteresis
73
Specifying the Auto-Zero Time (K3MA-F)
74
Specifying the Start-Up Compensation Time (K3MA-F)
76
Specifying the Zero-Limit (K3MA-J)
77
Changing the Display Color
79
Changing the Display Auto-Return Time
80
Changing the Move-To-Protect-Level Time
81
Chapter 6 Function Description
84
Measurement (K3MA-J)
84
Measurement (K3MA-J)
85
Measurement (K3MA-L)
87
Measurement (K3MA-F)
88
Average Processing
92
Comparative Output
93
Hysteresis
94
Display Color Change
95
Chapter 7 Troubleshooting Guide
97
Indication of Error
98
Troubleshooting Table
99
Appendix
101
Specifications
102
Parameter List
105
Other manuals for Omron K3MA-J
Manual
16 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Omron K3MA-J and is the answer not in the manual?
Ask a question
Omron K3MA-J Specifications
General
Brand
Omron
Model
K3MA-J
Category
Measuring Instruments
Language
English
Related product manuals
Omron K3MA-J Series
17 pages
Omron K3MA-J-A2 100-240VAC
17 pages
Omron K3NX
115 pages
Omron K3NR
148 pages
Omron K3HB-S
2 pages
Omron K3HB-R
147 pages
Omron K3HB-PPB
147 pages
Omron HBF-702T
36 pages
Omron G9SX Series
49 pages
Omron SYSMAC Series
18 pages
Omron H7CC-A Series
64 pages
Omron Peak-Air PF9940
8 pages
