OPERATION
Advanced-function setting level
A hysteresis setting of "0" is
assumed to be a hysteresis
setting of "1".
With K3MA-L, setting of
"sys2" is not possible.
5-19 Specifying the Hysteresis
5-19 Specifying the Hysteresis
These parameters allow you to specify the hysteresis for each of comparative output 1 and 2.

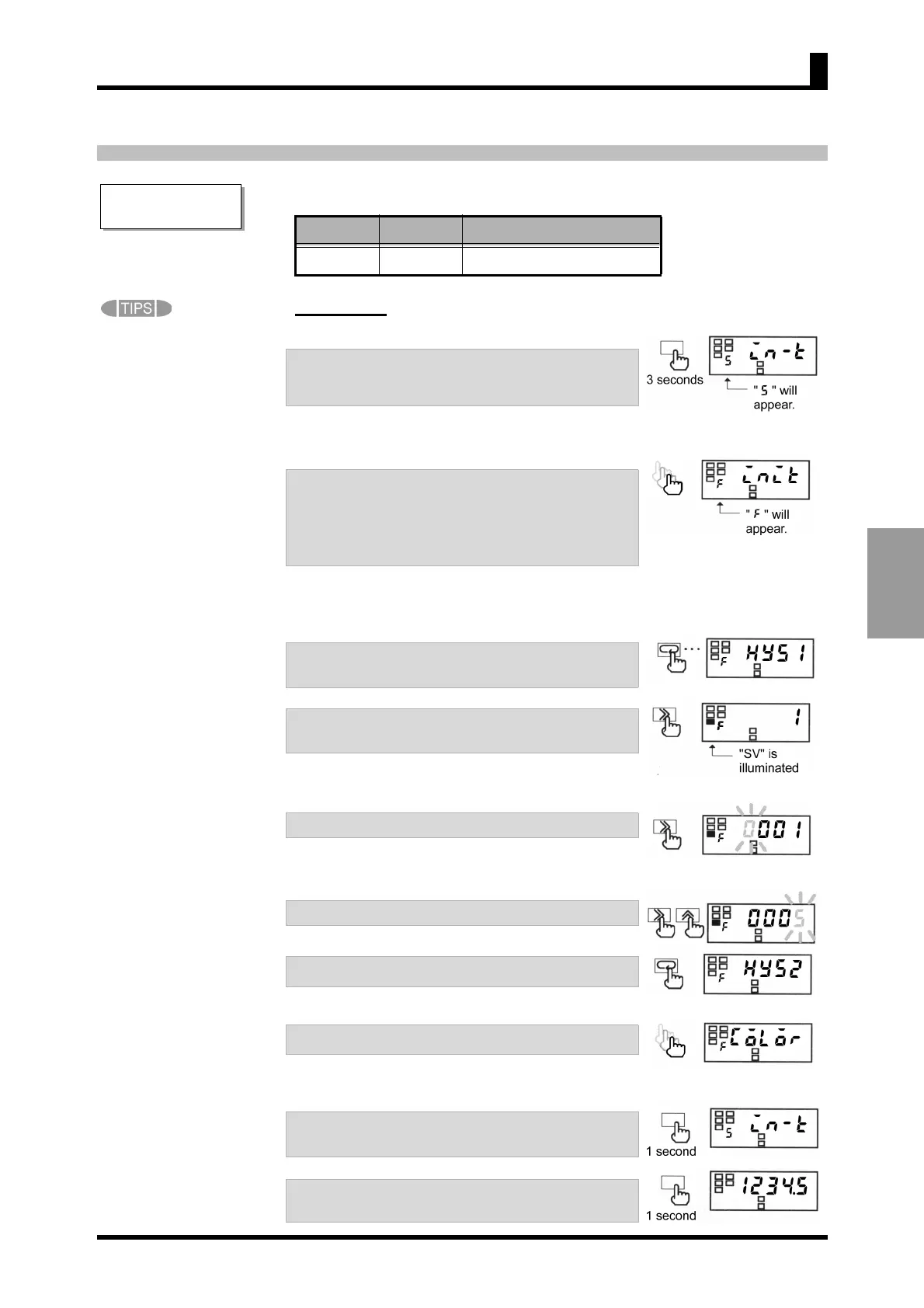

Procedure
A. When the product is at the operation level, press
the L key and hold it down for at least three
seconds to the initial setting level.
•" 5 " will appear on the level indicator, indicating
the product has entered the initial setting level.
B. Enter password "K3MA-J or K3MA-F : -0169,
K3MA-L : -169" in the parameter "
amgv " to
enter the advanced-function setting level. For
details on how to move to advanced-function
setting level, refer to "5-2 Moving among Levels".
•"f" will appear on the level indicator, indicat-
ing the product has entered the advanced-func-
tion setting level.
C. Press the M key several times until parameter
"hys1" appears on the main indicator.
D. Press the S key to display the set value on the
main indicator.
• The current set value of event input will appear
on the main indicator.
E. Press the S key again.
• The set value will start blinking, indicating the
product is in the change state.
F. Use the S and U keys to change the set value.
G. Press the M key to go to parameter "hys2".
• The change is saved.
H. Repeat the Steps D . to G. for parameter " hys2 ".
• The next parameter will appear on the main indi-
cator when you finish setting of the parameter.
I. Press the L key and hold it down for at least
one second to return to the initial setting level.
J. Press the L key and hold it down for at least
one second to return to the operation level.
Parameter Set value Description
hys
*
0-9999 0 to 9999 digit: Hysteresis
hys
*
(HYS*)
