5-20 Specifying the Auto-zero
Time
(K3MA-F)
This parameter allows you to specify the auto-zero time.
The auto-zero time is the length of time required for the product to return the readout
to zero after pulse input interruption.
Set this parameter to a larger value than the expected time interval of input pulses
(interval between pulses). Failure to do so will result in incorrect measurements.
If auto-zero time is too long, on the other hand, a long delay in lower-limit action in
response to a stop of rotation may result.
In the following application where a pulse is produced per rotation at 12-6000 r/min, for
example, the input pulse frequency is 0.2 to 100 Hz, which means the time interval of input
pulses is 0.01 to 5 seconds. The auto-zero time should be set to five seconds or longer.

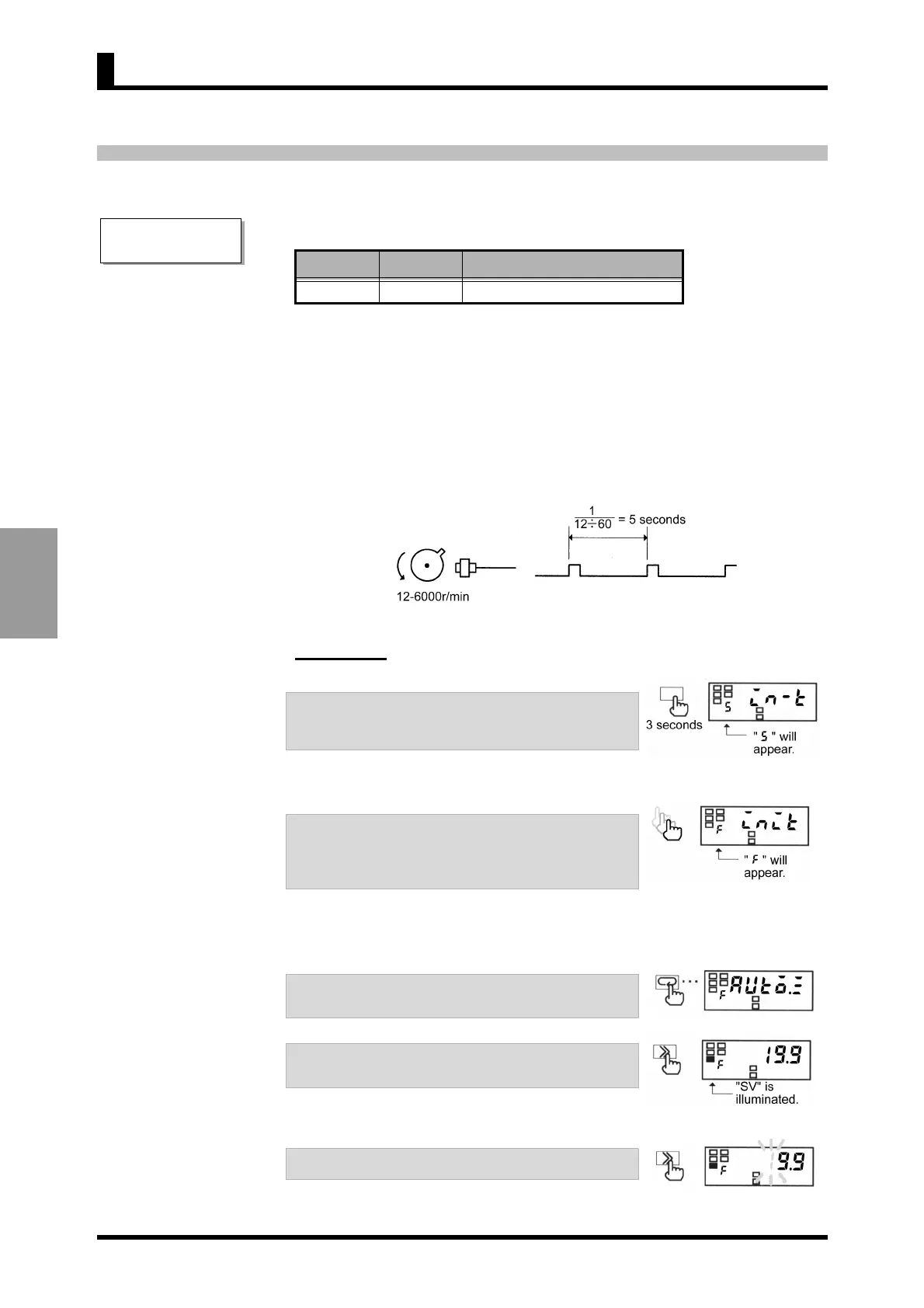

Procedure
A. When the product is at the operation level, press
the L key and hold it down for at least three
seconds to enter the initial setting level.
•"
5
" will appear on the level indicator, indicating
the product has entered the initial setting level.
B.
Enter password "-0169" in parameter "
amov
" to
enter the advanced-function setting level. For
details on how to move to the advanced-function
setting level, refer to "5-2 Moving among Levels".
•"
f
" will appear on the level indicator, indicating
the product has entered the advanced-function
setting level.
C. Press the M key several times until parameter
"auto.z" appears on the main indicator.
D. Press the S key to display the set value of the
parameter on the main indicator.
• The current set value of auto-zero time will
appear on the main indicator.
E. Press the S key again.
• The set value will start blinking, indicating the
product is in the change state.
Parameter Set value
Description
auto.z 0.0-19.9 0.0 to 19.9 sec: Auto-zero time
