Omron ns series User Manual

1-4 Using the I/O Comment Extracting Tool
9
•
NS12/10/8

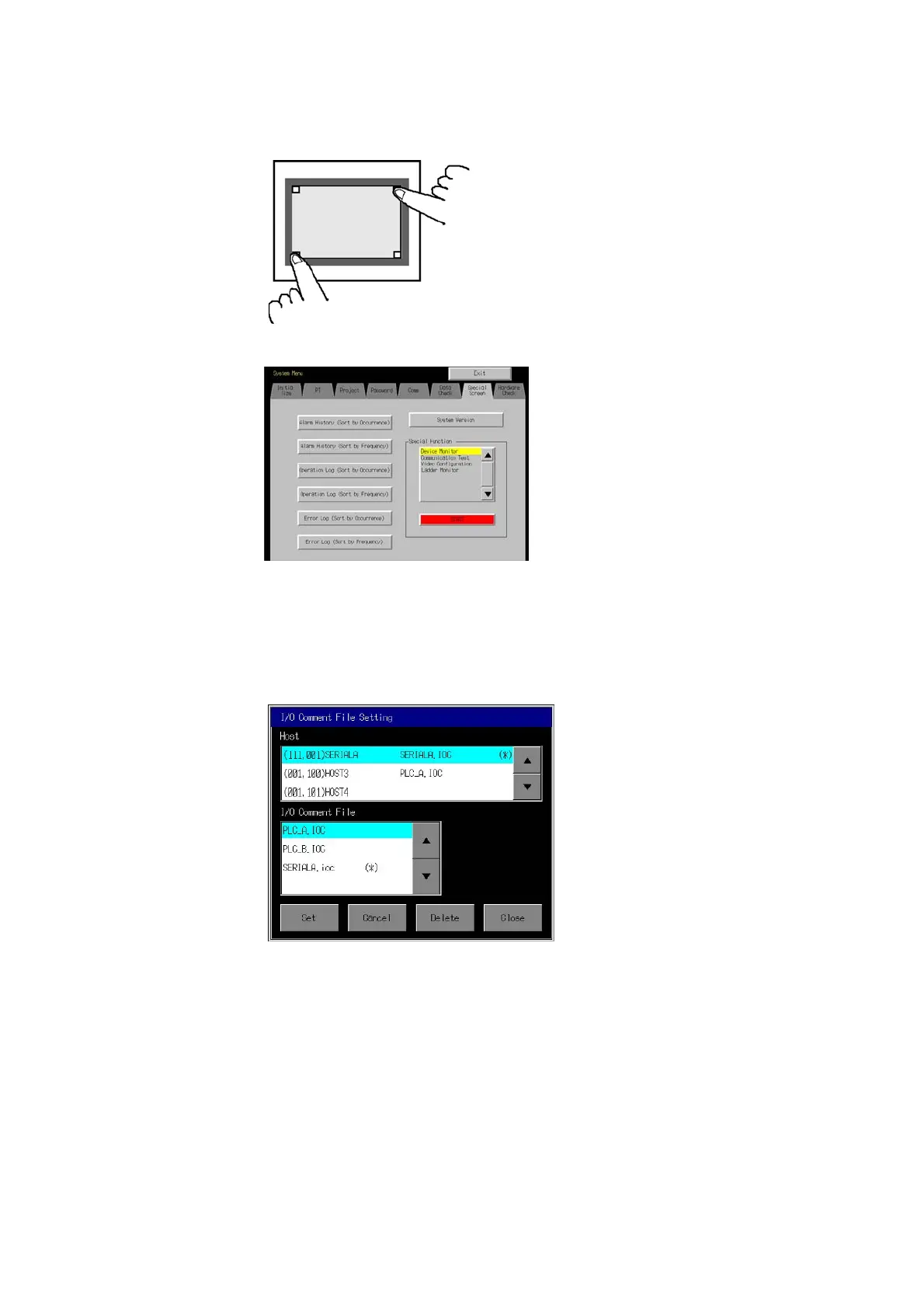

Press two of the four corners of the PT touch panel simultaneously.
6. Press the Special Screen Tab.
7. Press the Ladder Monitor Button on the Special Screen Tab Page and then press
the OK Button. The Ladder Monitor will start.
8. Press the Menu Button and select Various Settings.
9. Select I/O Comment File Setting from the Various Settings Dialog Box. The following
dialog box will be displayed.
10. Select the host to be set.
11. Select the Ladder Monitor I/O comment file to be used, and press the Set Button.
12. Press the Close Button.
13. An I/O comment will be displayed below each instruction in the ladder display area
on the Main Screen. Up to five characters per line will be displayed for each I/O
comment. Press the I/O Comment Button to switch from 3-line display to 1-line
display to no comment display.
14. To check the entire I/O comment, press an address once to display the I/O comment
in the I/O comment display area. Up to 68 characters can be displayed for the NS15,
up to 43 characters can be displayed for the NS12, or up to 23 characters can be
