Section 8 Operation Interface
RFID System
User's Manual
(Modbus TCP)
Section 8
Web Browser Interface

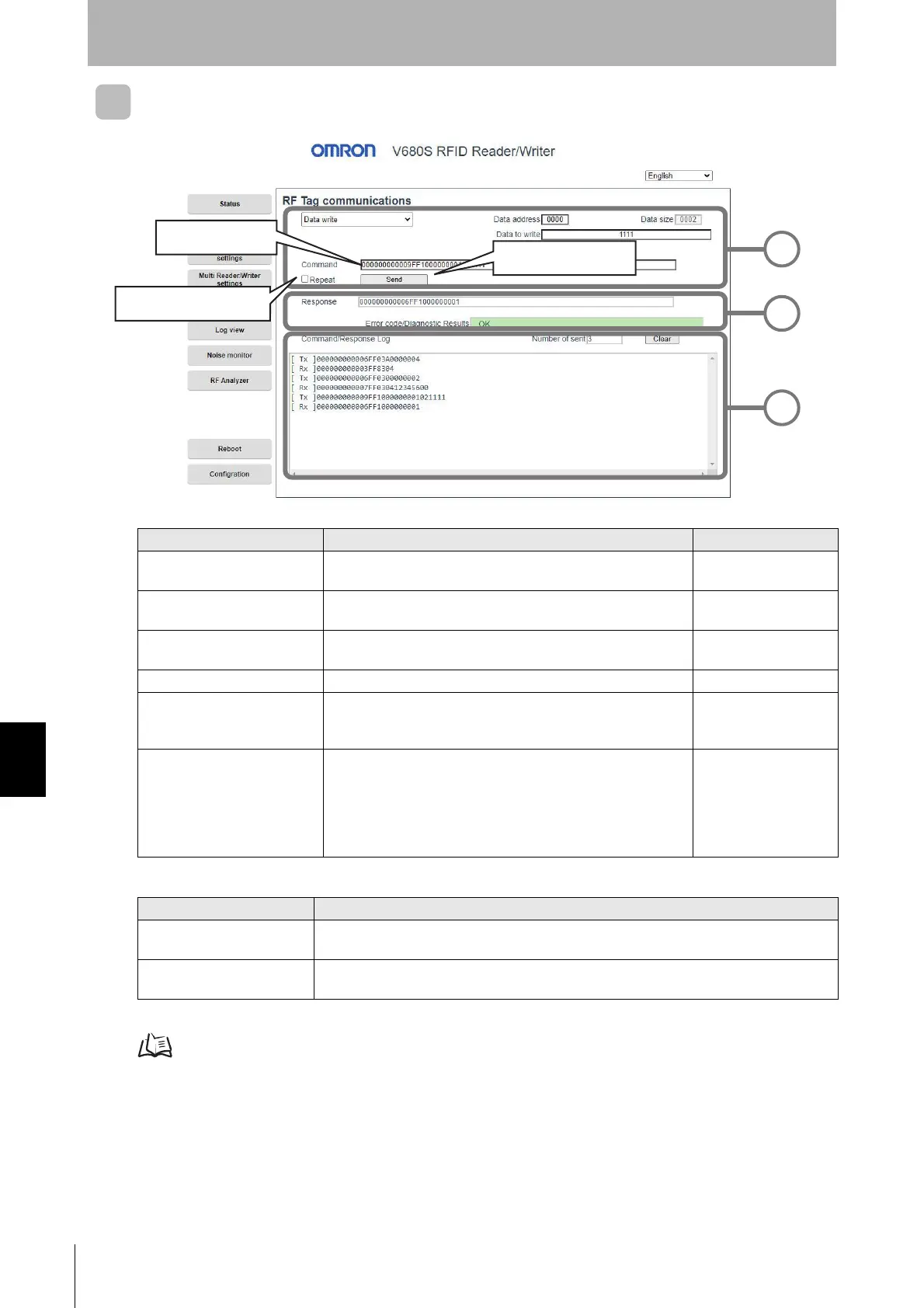

RF Tag Communications View
1. Command Area
2. Response
Refer to RFID System Maintenance in Section 6 Functions for details on communications diagnostics.
p.118
Item name Description Setting range
Command select Select the command to send. ID READ / DATA READ /
DATA WRITE
Data address Specify in 4-digit hexadecimal the first address to read or write
from the RF Tag.
0000 to 0999 hex
Data size Specify in 4-digit hexadecimal the number of words of data to read
from the RF Tag.
0001 to 007D hex
Write data Specify the data to write to RF Tag. 1 to 113 words
Display of command to send Displays the query to send if communications are performed with
an RF Tag. Enter the query directly when you are not
communicating with an RF Tag.
---
Repeat Select this check box to repeatedly and consecutively send the
command. Clear the selection of this check box if the RF Tag
communications option of the Reader/Writer is set to Auto,
Repeat or FIFO Repeat. If a command is sent repeatedly and
consecutively with the Auto, Repeat or FIFO Repeat option, an
error dialog will occur.
Item name Description
Response Displays the response that was returned from the Reader/Writer.
The background color will be green when the operation will be done normally.
Error code/Diagnosis If the response from the Reader/Writer indicates an error end, the error code and a description
will be displayed in red.
1
2
3
Click this button to send
the query.
Select this check box to
repeatedly send the query.
Displays the query
to send.
