Omron V680 Series User Manual

30
Section 1 Product Specifications
RFID System
User's Manual
(Modbus TCP)
Section 1
Product Overview
Connector Cover (Standard Type)

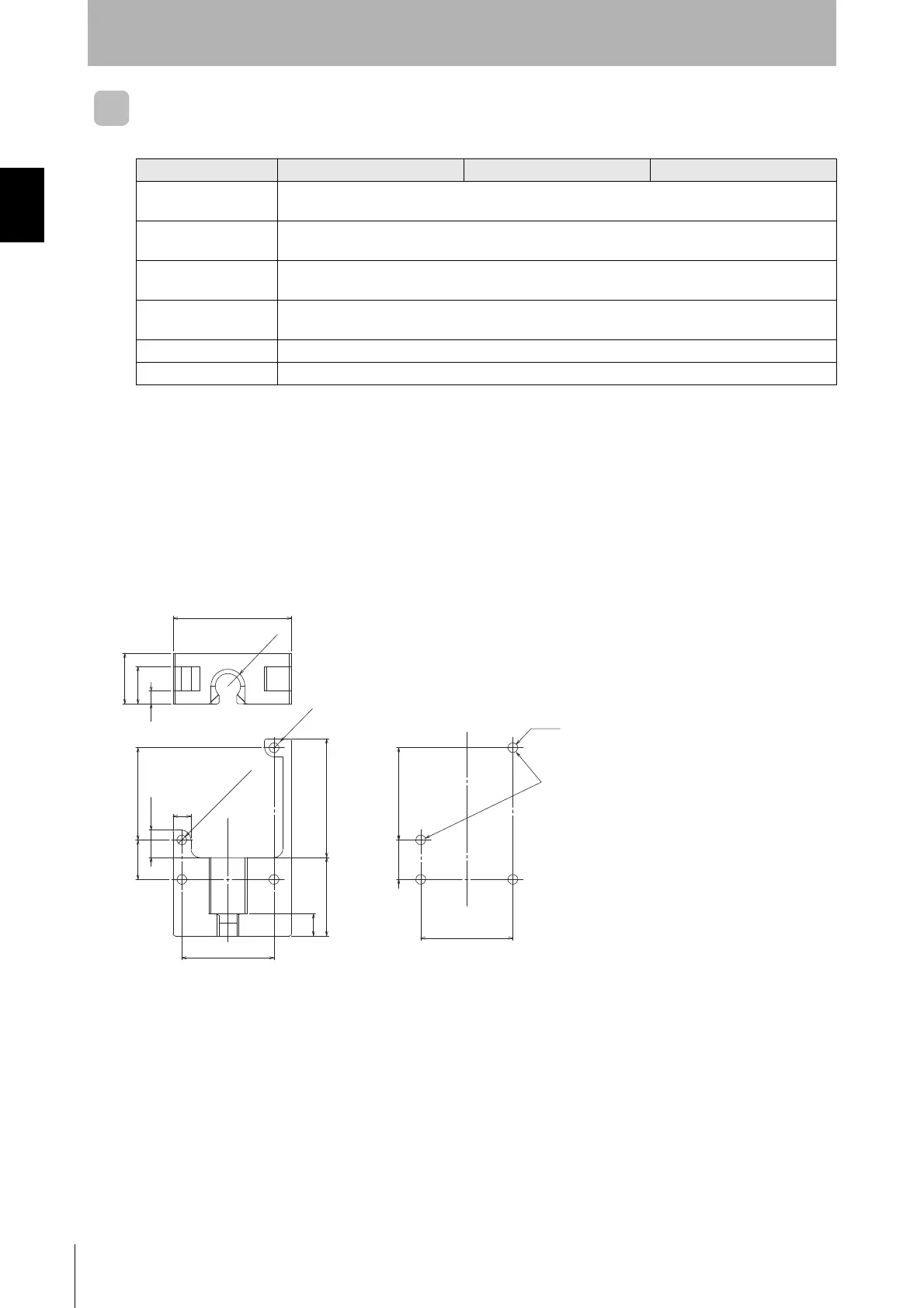

 General Specifications
 Dimensions
 V680S-A63
Item Model V680S-A63 V680S-A64 V680S-A66
Ambient operating
temperature
-10 to 55°C (with no icing)
Ambient operating
humidity
25% to 85% (with no condensation)
Ambient storage
temperature
-25 to 70°C (with no icing)
Ambient storage
humidity
25% to 85% (with no condensation)
Materials POM resin
Installation method Fixing screws in four locations, with two locations fixed with reader/writer mounting screws
*1
*1 V680S-A63/A64/A66 includes four mounting holes for fixing.
When mounting with a reader/writer already installed, or when no mounting holes for a new connector cover are available
other than the reader/writer mounting holes, the connector cover can be fixed in two locations with the same mounting holes
used for the reader/writer.
This makes it possible to install the connector cover without the need for additional mounting holes.
When tightening the products together in two locations, use the longer screw for the thicker part of the connector cover
being tightened (thickness: 11.2 mm for V680S-A63, 6 mm for 680S-A64/A66).
R7.75
17
54
5.8
23
Four, 4.5-dia.
2-R4.50
35.7
54
42
42
8.2
10
12.5
18
42±0.218±0.2
42±0.2
Mount Hole Dimensions
4-M4
Align to reader/writer
mounting screw holes
(Unit: mm)
