Omron V680 Series User Manual

95
RFID System
User's Manual
(Modbus TCP)
Section 5 Setting Communications Conditions
Section 5
Preparations for Communications
Setting Communications Conditions
Preparations for Work

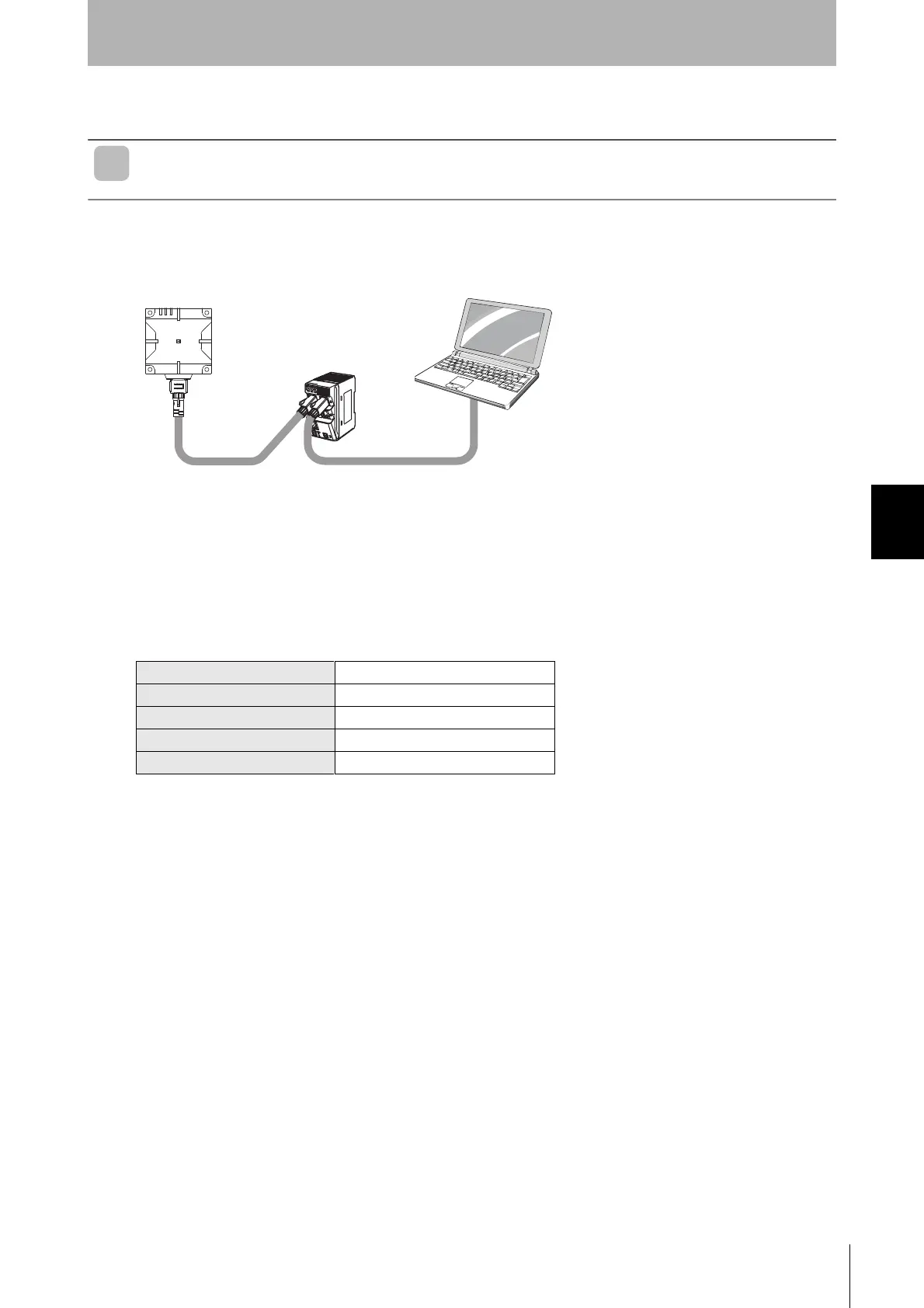

1. Network Configuration
The network configuration that is described in this manual is shown in the following figure.
Connect the Reader/Writer and the computer with an Ethernet Cable.
2. Set the IP address on the computer.
Set the IP addresses on the computer.
The default IP addresses of the Reader/Writer are given in the following table. Use these addresses to set the IP address on the
computer.
This example changes the last part of the IP address to a value other than 200 (i.e., to 1 to 199 or 201 to 254). Values of 0 and
255 cannot be used.
 Default TCP/IP Network Settings in the Reader/Writer
IP address 192.168.1.200
Subnet mask 255.255.255.0
Default gateway 192.168.1.254
Port number 502
Port number for Web browser 7090
Reader/Writer
Ethernet Cable
Switching Hub
Computer
Ethernet Cable
