Section 4 Installation
RFID System
User's Manual
(Modbus TCP)
Section 4
Installation and Connections

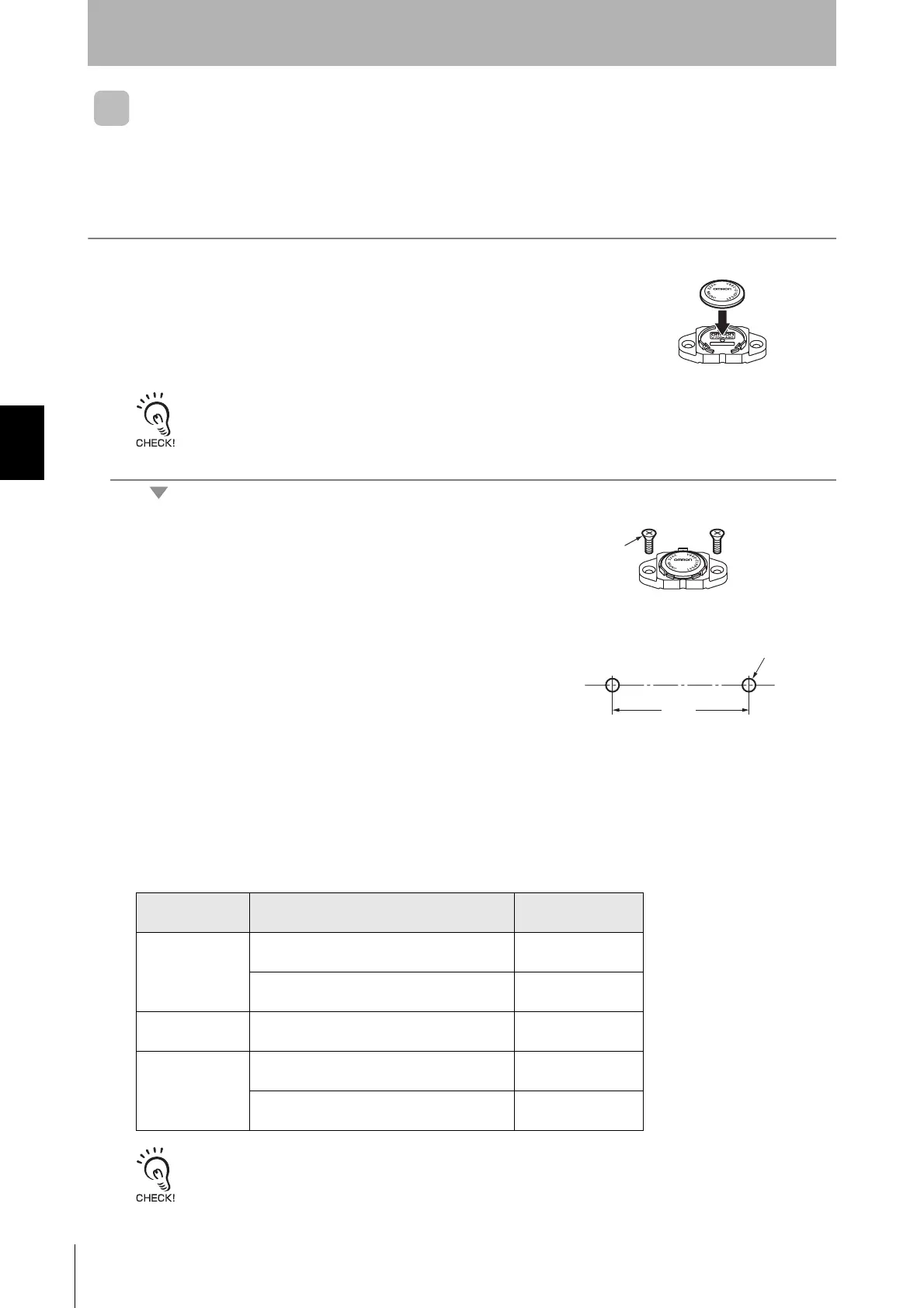

RF Tag
 V680-D1KP54T
Either use the V700-A80 Attachment to mount the RF Tags with screws or permanently attach the RF
Tags with adhesive.
Installation with the V700-A80 Attachment
1. Place the V680-D1KP54T RF Tag in the Attachment.
The V680-D1KP54T RF Tag can be placed in the Attachment in either direction.
The direction does not affect operation.
Do not repeatedly place the RF Tag in the Attachment and remove it from the Attachment. If you do so, the RF Tag will
become loose or the Attachment will be damaged.
If you must remove an RF Tag from the Attachment, insert a flat-blade screwdriver in the gap under the RF Tag. Do not
try to remove it with your bare hands. Doing so may result in injury.
2. Mount the Attachment with M3 screws.
Tighten the screws to a suitable torque.
Tightening torque: 0.3 to 0.5 N·m
 Installation with Adhesive
Select an adhesive that is suitable for the materials. Use the correct application method and amount.
Always confirm that the RF Tag is securely attached before you use it.
The RF Tags are made from PPS resin. We recommend epoxy adhesives to mount them on metal or
hard plastic.
The epoxy adhesives that are listed in the following table are recommended for the given temperature
ranges.
The above adhesives may not provide sufficient strength when attaching RF Tags to polyethylene, polypropylene,
fluororesins, or silicon-based resins. Check applicability carefully in advance. Consult with the manufacturer for detailed
information on adhesives.
Ambient operating
temperature
Product name Manufacturer
-40 to 70°C
Two-part Epoxy Adhesive:
TB2001 (main agent)/TB2105C (curing agent)
ThreeBond Co., Ltd.
One-part Moisture-curing Elastic Adhesive:
TB1530
ThreeBond Co., Ltd.
-40 to 110°C
Two-part Epoxy Adhesive:
EP001
Cemedine Co. Ltd.
-40 to 150°C
One-part Epoxy Adhesive:
TB2285
ThreeBond Co., Ltd.
Two-part Epoxy Adhesive:
TB2087
ThreeBond Co., Ltd.
M3 flat-head screw
Mounting Hole Dimensions
31±0.2
Two, M3 holes
