36
Section 1 Product Specifications
RFID System
User's Manual
(Modbus TCP)
Section 1
Product Overview
RF Tag
V680-D1KP54T

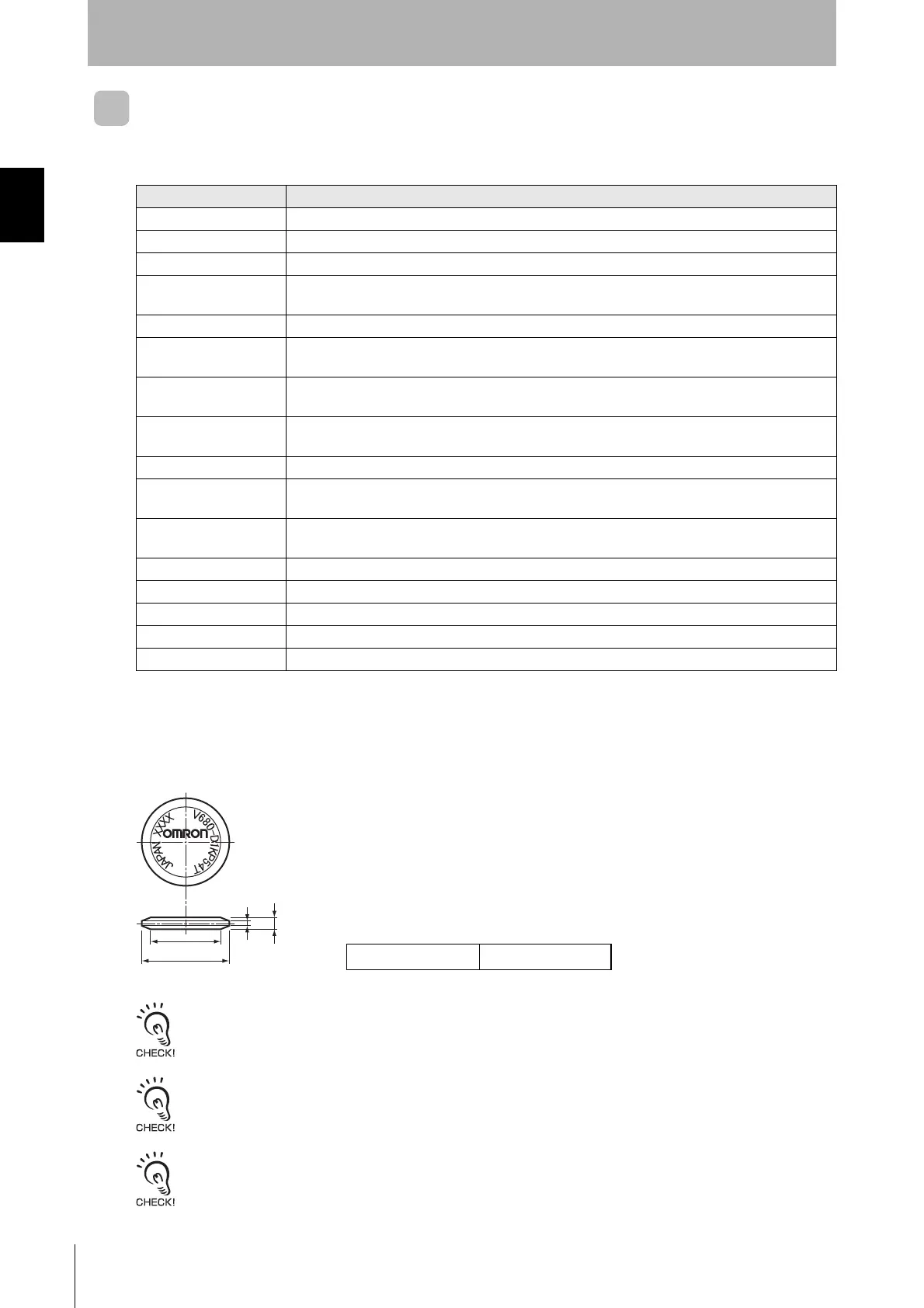

General Specifications
Dimensions
The V680-D1KP54T RF Tag can be placed in the Attachment in either direction. The direction does not affect operation.
The ID code is written in the memory of the RF Tag and may be affected by data retention characteristics at high
temperatures. Take suitable precautions when using the READ ID query for RF Tags operating at high temperatures.
You cannot use FIFO Trigger communications.
Item Model V680-D1KP54T
Compliance standards ISO/IEC 18000-3 (15693)
Memory capacity 1,000 bytes (user area)
Memory type EEPROM
Data retention 10 years after writing (85°C or less), 0.5 years after writing (85 to 125°C)
Total data retention at high temperatures exceeding 125°C is 10 hours
See Note 1.
Write endurance 100,000 writes for each block (25°C)
Ambient operating
temperature
-25 to 85°C (with no icing)
Ambient operating
humidity
35% to 95%
Ambient storage
temperature
-40 to 125°C (with no icing)
Ambient storage humidity 35% to 95%
Degree of protection IP67 (IEC 60529:2001)
Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1)
See Note 2.
Vibration resistance No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude,
acceleration: 150 m/s
2
, 10 sweeps each in X, Y, and Z directions for 15 minutes each
Shock resistance No abnormality after application of 500 m/s
2
, 3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions 20 dia. × 2.7 mm
Materials PPS resin
Weight Approx. 2 g
Metal countermeasures None
Note 1. After storing RF Tags at high temperatures, rewrite the data even if changes are not required. High temperatures are
those between 125 and 180°C.
2. Oil resistance has been tested using a specific oil as defined in the OMRON test method.
16 dia.±0.1
20 dia.±0.1
1.1
2.7±0.1
Case material PPS resin
(Unit: mm)
