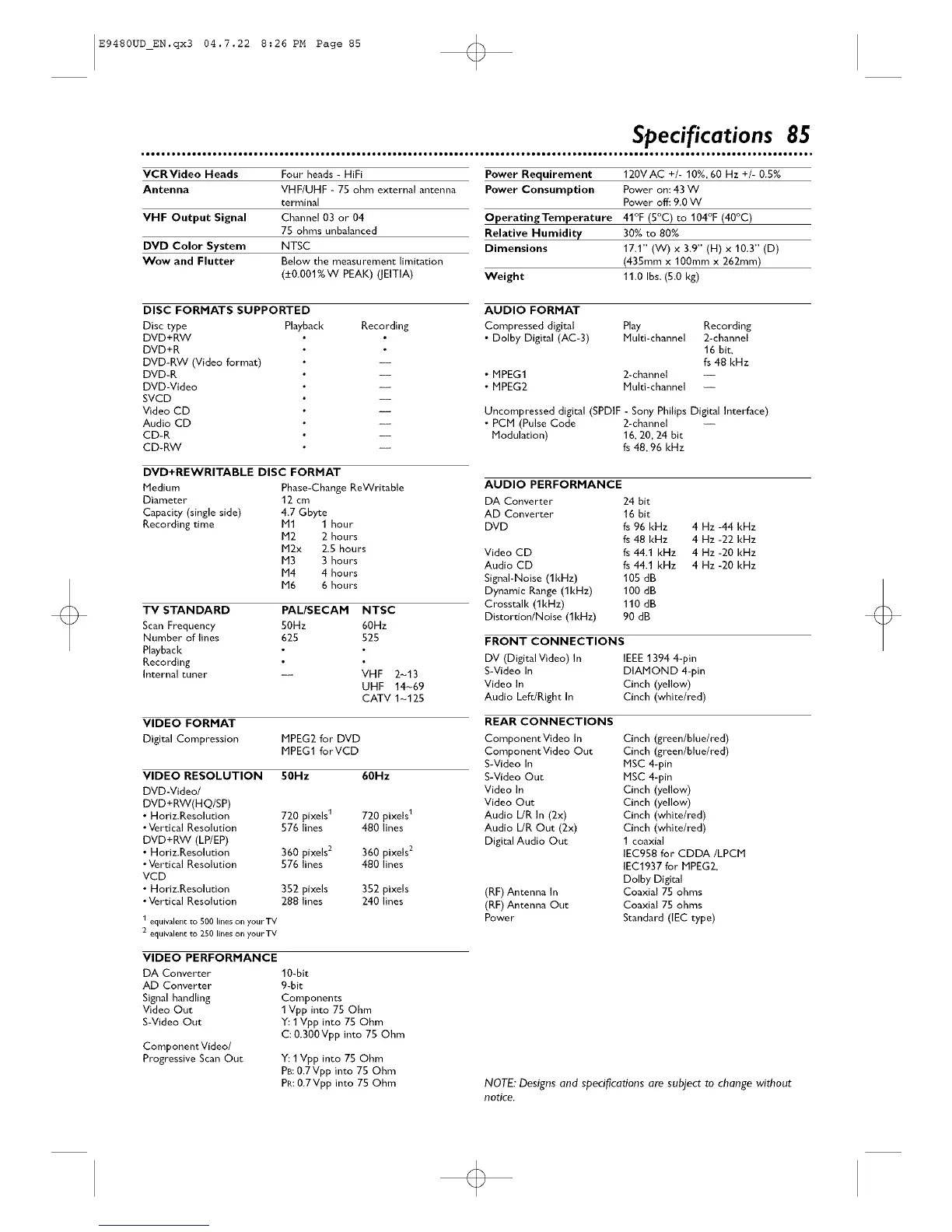

Specifications 85
YCRVideo Heads Four heads - HiFi
Antenna VHF/UHF - 75 ohm external antenna
terminal
VHF Output Signal Channel 03 or 04
75 ohms unbalanced
DVD Color System NTSC
Wow and Flutter Below the measurement limitation
(_+0.001%W PEAK) (JEITIA)
Power Requirement 120V AC +/- 10%, 60 Hz +/- 0.5%
Power Consumption Power on: 43 W
Power off: 9.0 W
OperatingTemperature 41°F (5°C) to 104°F (40°C)
Relative Humidity 30% to 80%
Dimensions 17.1" (W) x 3.9" (H) x 10.3" (D)
(43Smm x 100mm x 262mm)
Weight 11.0 Ibs. (5.0 kg)
DISC FORMATS SUPPORTED
Disc type PI_ back
DVD+RW
DVD+R
DVD-RW (Video forrnat)
DVD-R
DVD-Video
SVCD
Video CD
Audio CD
CD-R
CD-RW
Recording
DVD+REWRITABLE DISC FORMAT
Mediurn Phase-Change ReWritable
Diameter 12 crn
Capacity (single side) 4.7 Gbyte
Recording time M1 1 hour
M2 2 hours
M2x 2.5 hours
M3 3 hours
M4 4 hours
M6 6 hours
TV STANDARD PAL/SECAM NTSC
Scan Frequency 50Hz 60Hz
Number of lines 625 525
Playback
Recording
Internal tuner -- VHF 2-13
UHF 14-69
CATV 1-125
VIDEO FORMAT
Digital Compression MPEG2 for DVD
MPEG1 forVCD
VIDEO RESOLUTION 50Hz 60Hz
DVD-Video/
DVD+RW(HQ/SP)
• Horiz.Resoludon 720 pixels I 720 pixels 1
•Vertical Resolution 576 lines 480 lines
DVD+RW (LP/EP)
• Horiz.Resolution 360 pixels 2 360 pixels 2
•Vertical Resolution 576 lines 480 lines
VCD
• Horiz.Resoludon 352 pixels 352 pixels
•Vertical Resolution 288 lines 240 lines
1 equivalent to 500 lines on yourTV
2 equivalent to 250 lines on yourTV
VIDEO PERFORMANCE
DA Converter 10-bit
AD Converter 9-bit
Signal handling Components
Video Out 1 Vpp into 75 Ohm
S-Video Out Y: 1 Vpp into 75 Ohm
C: 0.300Vpp into 75 Ohm
Component Video/
Progressive Scan Out Y: 1Vpp into 75 Ohm
PB:0.7Vpp into 75 Ohm
PR:0.7Vpp into 75 Ohm
AUDIO FORMAT
Compressed digital Play
• Dolby Digital (AC-3) Multi-channel
• MPEG1 2-channel
• MPEG2 Multi-channel
Recording
2-channel
16 bit,
fs 48 kHz
Uncompressed digital (SPDIF - Sony Philips Digital Interface)
• PCM (Pulse Code 2-channel --
Modulation) 16, 20, 24 bit
fs 48, 96 kHz
AUDIO PERFORMANCE
DA Converter 24 bit
AD Converter 16 bit
DVD fs 96 kHz
fs 48 kHz
Video CD fs 44.1 kHz
Audio CD fs 44.1 kHz
Signal- Noise (1 kHz) 105 dB
Dynamic Range (lkHz) 100 dB
Crosstalk (1 kHz) 110 dB
Distortion/Noise (lkHz) 90 dB
4 Hz -44 kHz
4 Hz -22 kHz
4 Hz -20 kHz
4 Hz -20 kHz
FRONT CONNECTIONS
DV (Digital Video) In IEEE 1394 4-pin
S-Video In DIAMOND 4-pin
Video In Cinch (yellow)
Audio LefdRight In Cinch (white/red)
REAR CONNECTIONS
ComponentVideo In Cinch (green/blue/red)
ComponentVideo Out Cinch (green/blue/red)
S-Video In MSC 4-pin
S-Video Out MSC 4-pin
Video In Cinch (yellow)
Video Out Cinch (yellow)
Audio UR In (2x) Cinch (white/red)
Audio UR Out (2x) Cinch (white/red)
Digital Audio Out 1 coaxial
IEC958 for CDDA/LPCM
IEC1937 for MPEG2,
Dolby Digital
(RF) Antenna In Coaxial 75 ohms
(RF) Antenna Out Coaxial 75 ohms
Power Standard (IEC type)
NOTE: Designs and specifications are subject to change without
notice.
o

Philips DVDR600VR Specifications

Operating Environment

temperature range (operation)	0°C to 40°C

Power

standby power consumption	< 3 W
power supply	90.140 V AC (120 V nom), 50/60 Hz

Sound

signal/noise ratio	95
distortion and noise (1kHz)	85 dB
dynamic range (1kHz)	85 dB
D/A converter	24 bit, 96 kHz
crosstalk (1kHz)	95 dB

Video Recording

tape speeds	LP, SP
recording system	NTSC
recording modes	M1: 60 minutes, M2: 120 minutes, M2x: 150 minutes, M3: 180 minutes, M4: 240 minutes, M6: 360 minutes
max recording time on DVD	6 hr

Audio Playback

MP3 bit rates	32 - 320 kbps
compression format	Dolby Digital, PCM, MPEG2 Multichannel, MP3, DTS

Picture/Display

D/A converter	10 bit, 54 MHz

Weight and Dimensions

packaging dimensions	542 x 181 x 375 mm
product dimensions	435 x 100 x 262 mm
