3.13

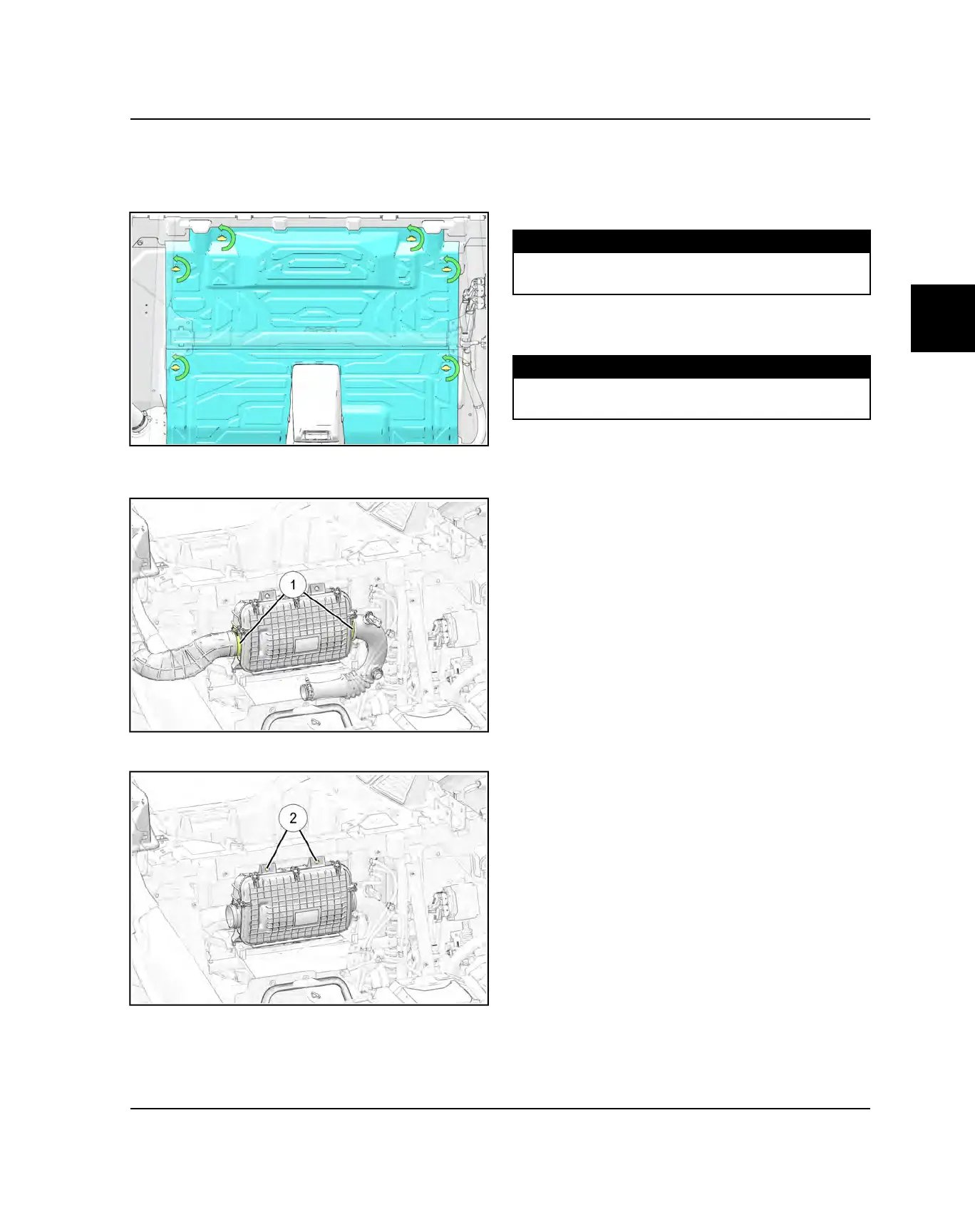

AIR BOX REMOVAL
1. Remove seats.
2. Remove upper and lower rear close off panels.
3. Loosen the band clamps
q
retaining the intake hoses
to the air box.
4. Remove two fasteners
w
retaining the air box.
5. Lift air box upward to disengage lower mounting tabs
and remove air box from vehicle.
AIR BOX INSTALLATION
1. Install the air box and re-engage lower mounting tabs.
2. Install the intake hoses onto the air box. Tighten hose
clamps to specification.
TORQUE
Intake Hose Clamps:
35 in-lb (4 Nm)
3. Install two air box mounting fasteners. Torque
fasteners to specification.
TORQUE
Air Box Mounting Fasteners:
8 ft-lb (11 Nm)
4. Install upper and lower rear close off panels.
5. Install both seats.
