7.8
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.

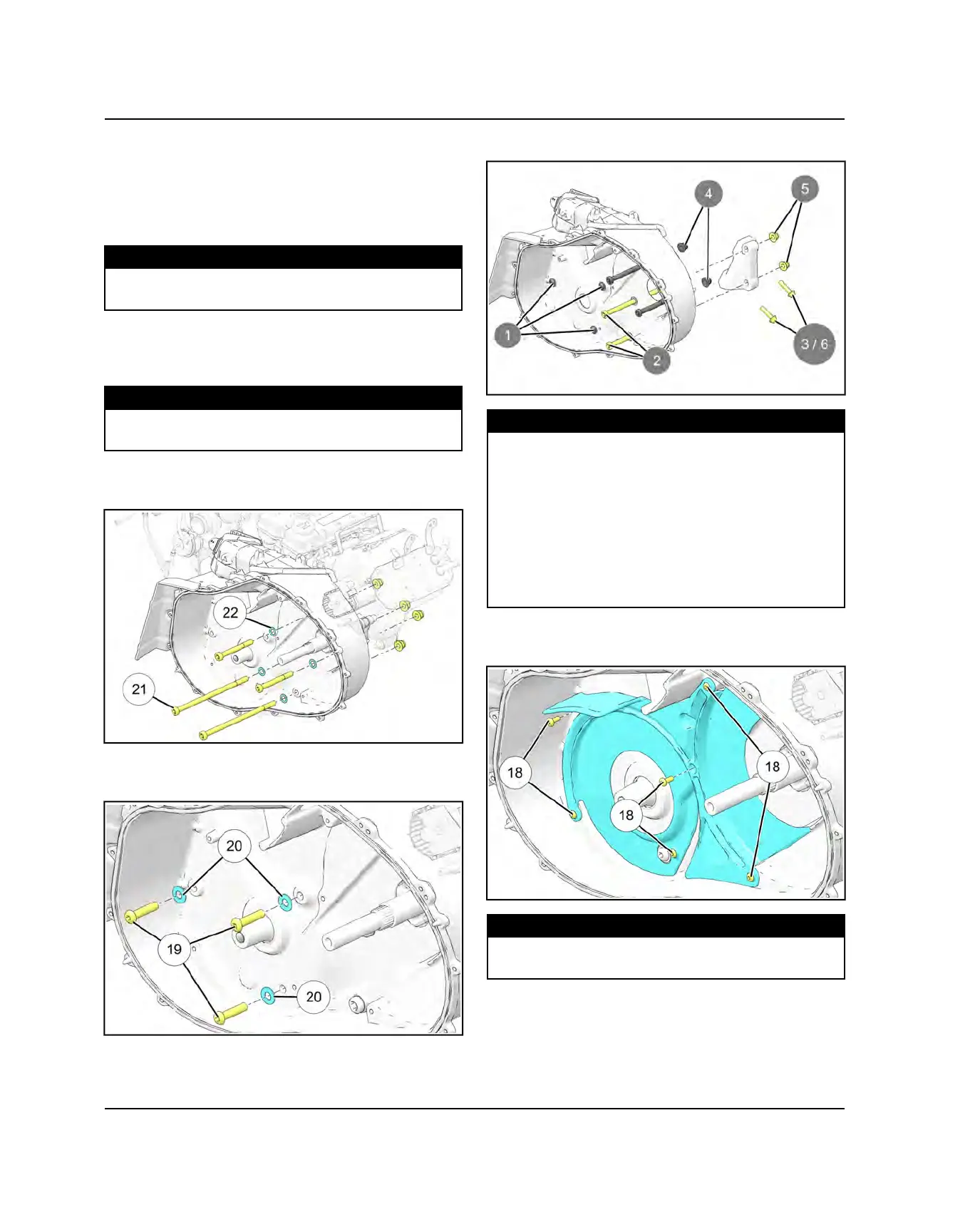

TRANSMISSION INSTALLATION
1. Install transmission into the chassis through the
driver’s side.
2. Install rear transmission mount to the frame bracket.
Torque fasteners to specification.
TORQUE
Rear Transmission Mount Fasteners:
22 ft-lb (30 Nm)
3. Install transmission isolator bolt through the
transmission bracket and isolator. Torque fasteners to
specification.
TORQUE
Rear Transmission Isolator Fasteners:
33 ft-lb (45 Nm)
4. Loosely install fasteners retaining inner cover to the
transmission and engine/trans joint.
5. Loosely install the three allen screws
2!
and washers
2@
retaining inner cover to engine.
6. Install inner PVT cover.
TORQUE
PVT Inner Cover Fasteners:
STEP 1: Torque to 37 ft-lbs (50 Nm).
STEP 2: Install through bolts by adjusting the
transmission accordingly.
STEP 3: If previously removed, loosely install bolts
by hand.
STEP 4: Torque to 50 ft-lbs (68 Nm).
STEP 5: Torque to 50 ft-lbs (68 Nm).
STEP 6: If previously removed, torque to 37 ft-lbs
(50 Nm)
7. Install inner PVT cover baffle. Torque fasteners to
specification.
TORQUE
Inner PVT Cover Baffle Fasteners:
7 ft-lbs (10 Nm)
TRANSMISSION
