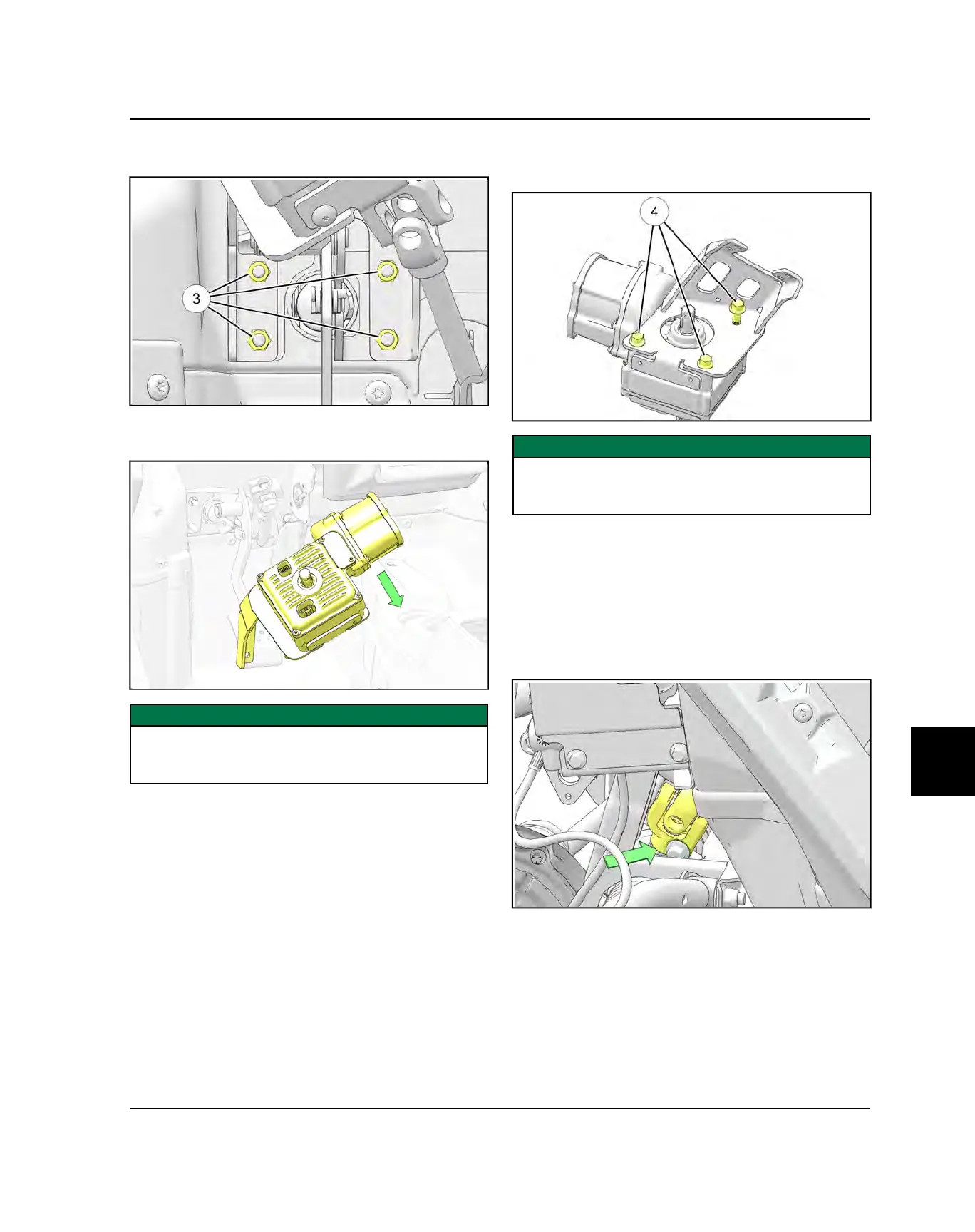

4. While supporting the power steering unit, remove the
four nuts
e
from the mount bracket.
5. Carefully remove the power steering unit and mount
bracket from the vehicle as an assembly.
IMPORTANT
Power steering units have a steering position sensor.
Avoid spinning steering shafts after removing power
steering unit from the vehicle.
6. If replacing the power steering unit, remove the three
bolts
r
that retain the power steering unit to the
mount bracket.
IMPORTANT
Electronic Power Steering (EPS) units are programmed
to be vehicle specific and are not interchangeable
between product lines.
LOWER STEERING SHAFT REMOVAL
1. Use the steering wheel to position the front wheels so
they point straight ahead.
2. Locate the lower steering shaft through the left front
wheel well. Mark the lower steering shaft, gear box
stub shaft and gear box to aid installation.
3. Remove the power steering unit (see Power Steering
Unit Removal page ).
