9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.

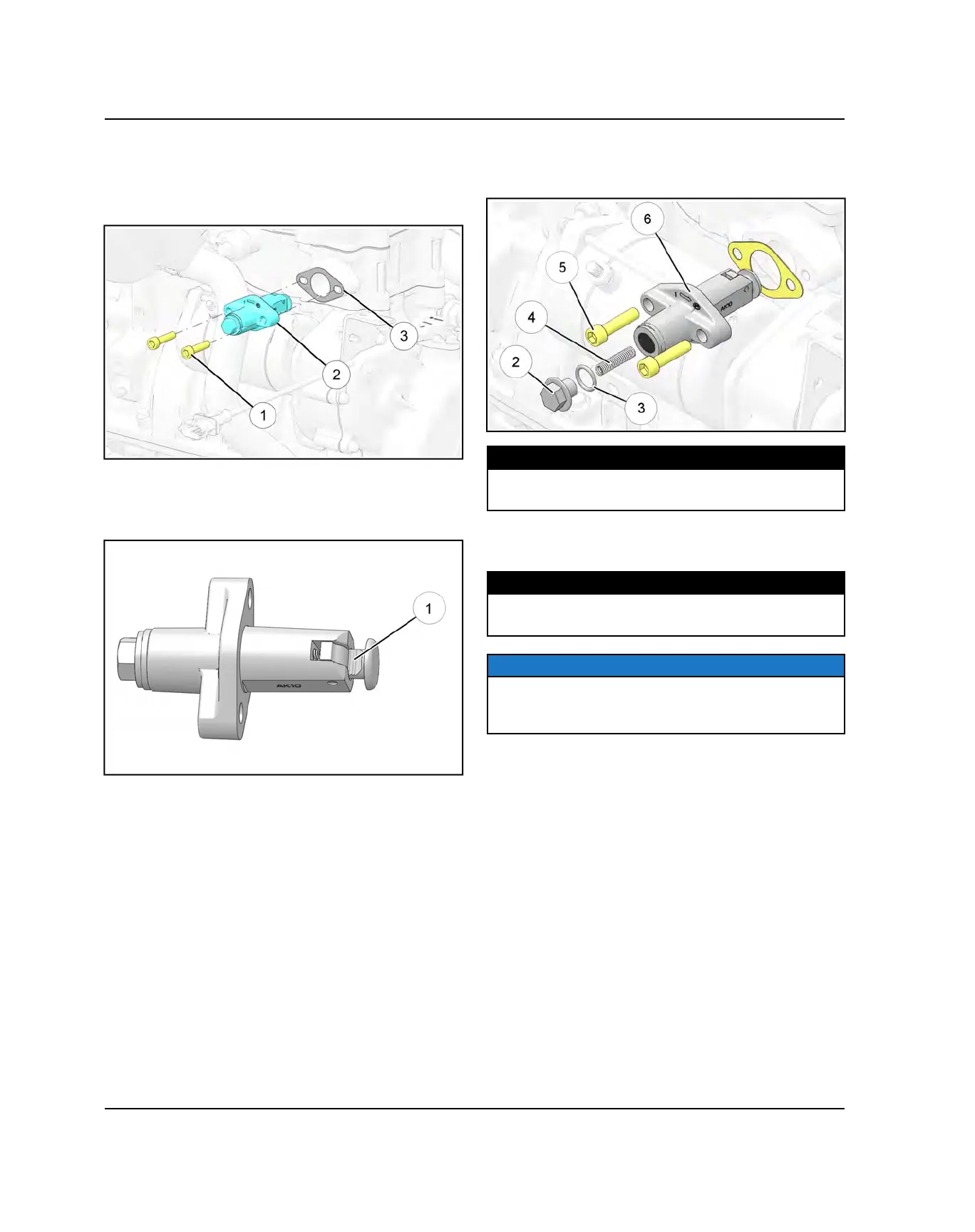

CAM CHAIN TENSIONER SERVICE
REMOVAL
1. Remove the two fasteners
q
securing the cam chain
tensioner
w
and the tensioner gasket
e
.
INSTALLATION
1. Lubricate the rack
q
on the tensioner with white
lithium grease.
2. Remove the spring retainer bolt
w
and push the
adjuster all the way in.
3. Using a new gasket, install the cam chain tensioner
y
into the cylinder and torque mounting bolts
t
to
specification.
TORQUE
Cam Chain Tensioner:
7 ft-lb (10 Nm)
4. Install the tensioner spring
g
, washer
e
, and
retainer bolt
w
. Torque retainer bolt to specification.
TORQUE
Tensioner Spring Retainer:
12 ft-lb (16 Nm)
NOTICE
The tensioner will automatically adjust to the proper
tension once the spring and retainer are installed. No
further adjustment is required.
ENGINE / COOLING SYSTEM
