9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
3.89
28.Proceed to Flywheel Installation page 3.89 and then
Cylinder Head Installation page .

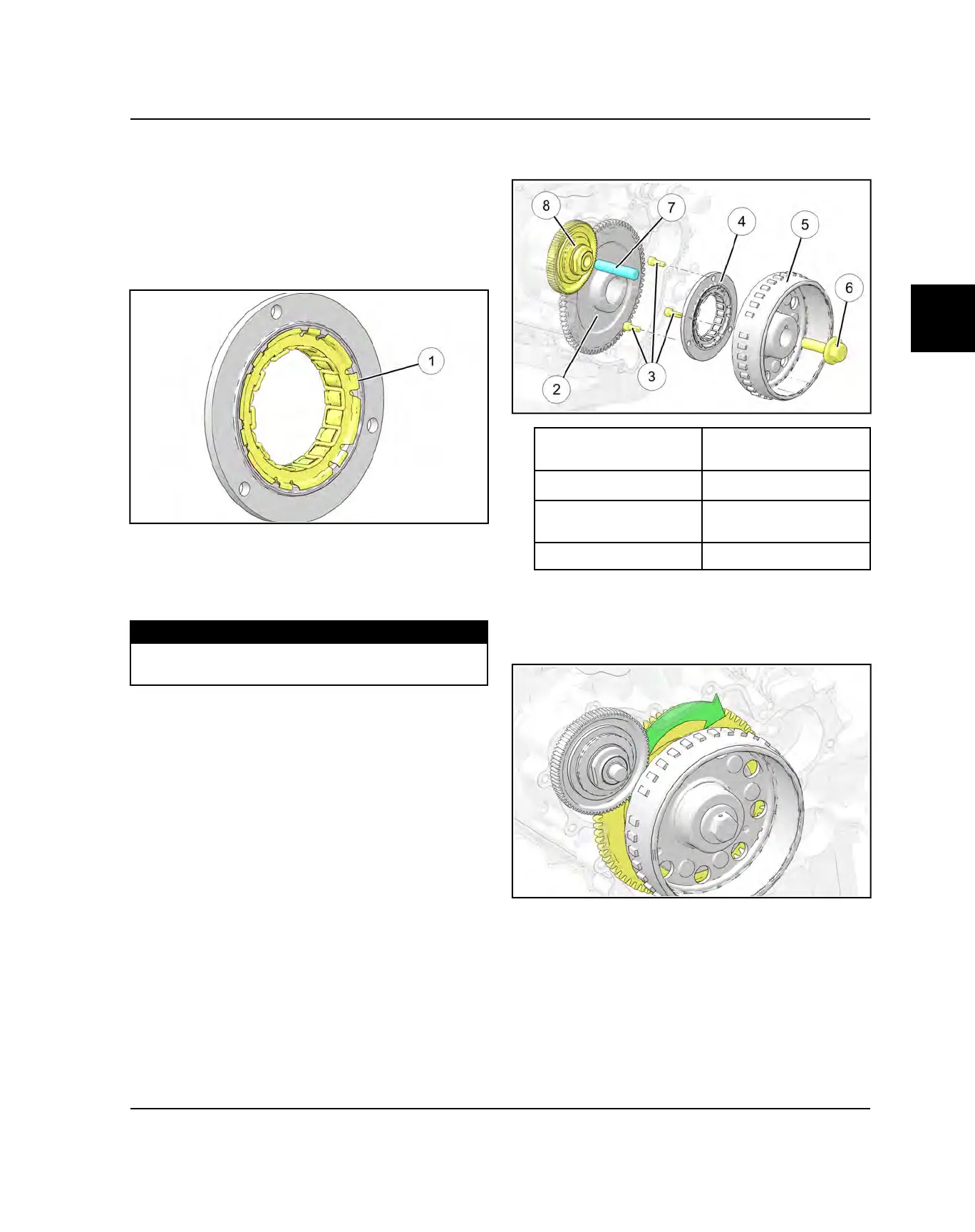

STARTER ONE-WAY CLUTCH
ASSEMBLY
1. Install one-way clutch in clutch hub with flange of
clutch
q
engaged in recess.
2. Clean screw threads in flywheel to remove all oil or
grease.
3. Place one-way clutch on flywheel and install the three
screws. Torque screws to specification.
TORQUE
One-Way Clutch Retaining Screws:
9 ft-lb (12 Nm)
4. Reassemble starter one-way clutch and gear using
the following illustration.
w
Torque Limit Gear
Pin
y
Flywheel
e
Starter Gear
u
One-Way Clutch Asm
r
Screws
i
Torque Limit Gear
Asm
t
Bolt
5. If starter gear was replaced, inspect the torque limit
gear.
6. After assembly, be sure the starter gear rotates in the
clockwise direction only.
FLYWHEEL INSTALLATION
1. If previously removed, reinstall the flywheel key.
2. Inspect and clean crankshaft and flywheel taper with
isopropyl alcohol or similar cleaning solution.
Replace crankshaft if surface damage is present.
Clean taper of crankshaft to remove all oil or grease.
