9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
6.19

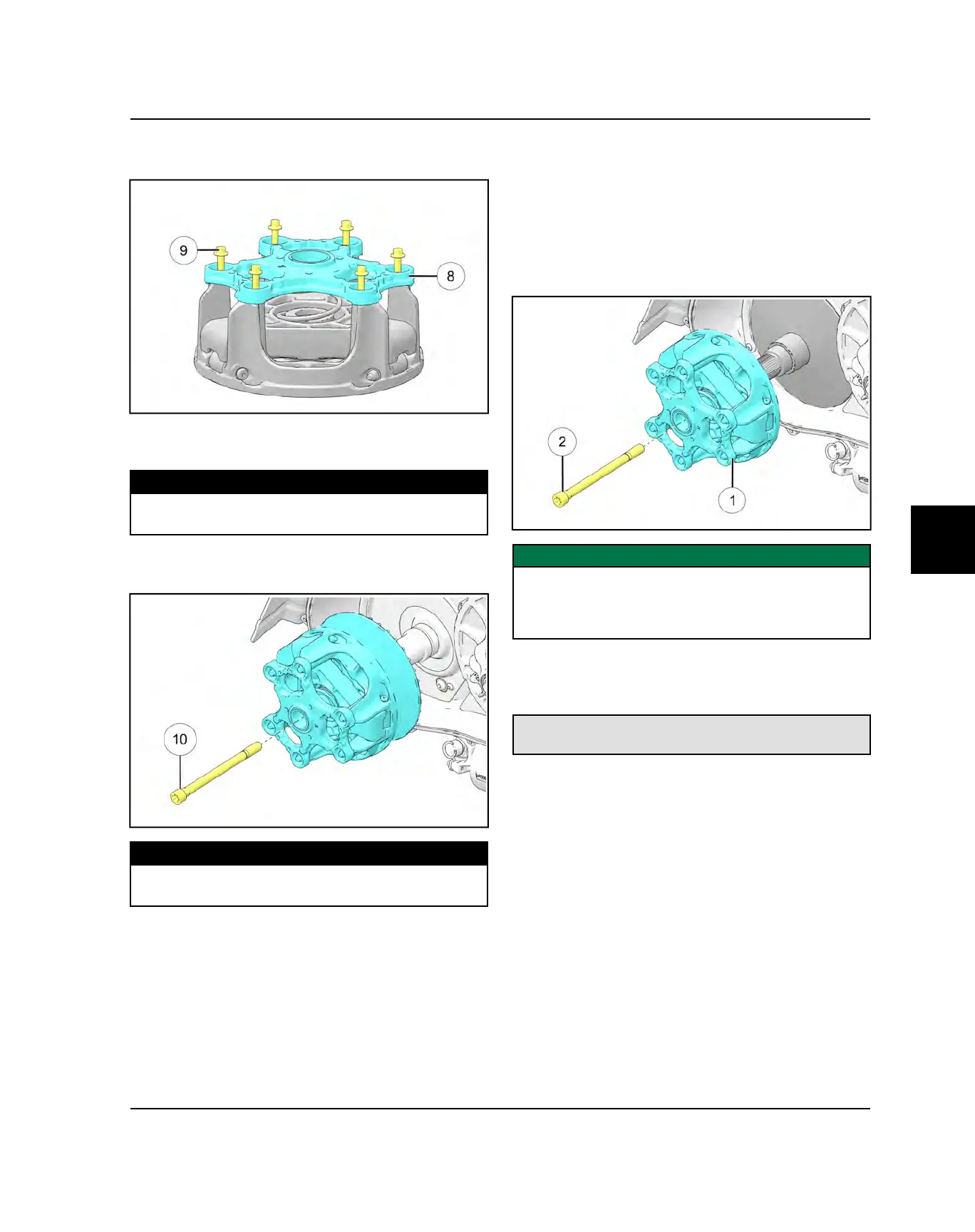

4. Install the clutch cover
i
and clutch cover bolts
o
.
Hand tighten bolts.
5. Torque cover bolts in a cross pattern evenly to
specification.
TORQUE
Drive Clutch Cover Bolts:
15 ft-lbs (21 Nm)
6. Install drive clutch assembly and drive clutch bolt
a
.
Torque bolt to specification.
TORQUE
Drive Clutch Bolt:
140 ft-lbs (190 Nm)
DRIVE CLUTCH INSTALLATION
1. Clean drive clutch and crankshaft tapers with solvent.
Allow the tapers to completely dry before installing
drive clutch.
2. Install the drive clutch stationary sheave. Ensure the
sheave is fully seated.
3. Install the drive clutch assembly
q
and drive clutch
bolt
w
.
IMPORTANT
Ensure proper orientation of washers. Orientation
should be as follows: Clutch Spider, Yellow Washer,
Silver Belleville Washer with dome side facing outwards
towards Outer Post, and Outer Post.
4. Install the Drive Clutch Holding Tool onto the drive
clutch. Torque drive clutch retaining bolt to
specification.
Drive Clutch Holding Tool:
PU-52944
PVT SYSTEM
