3
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
3.27

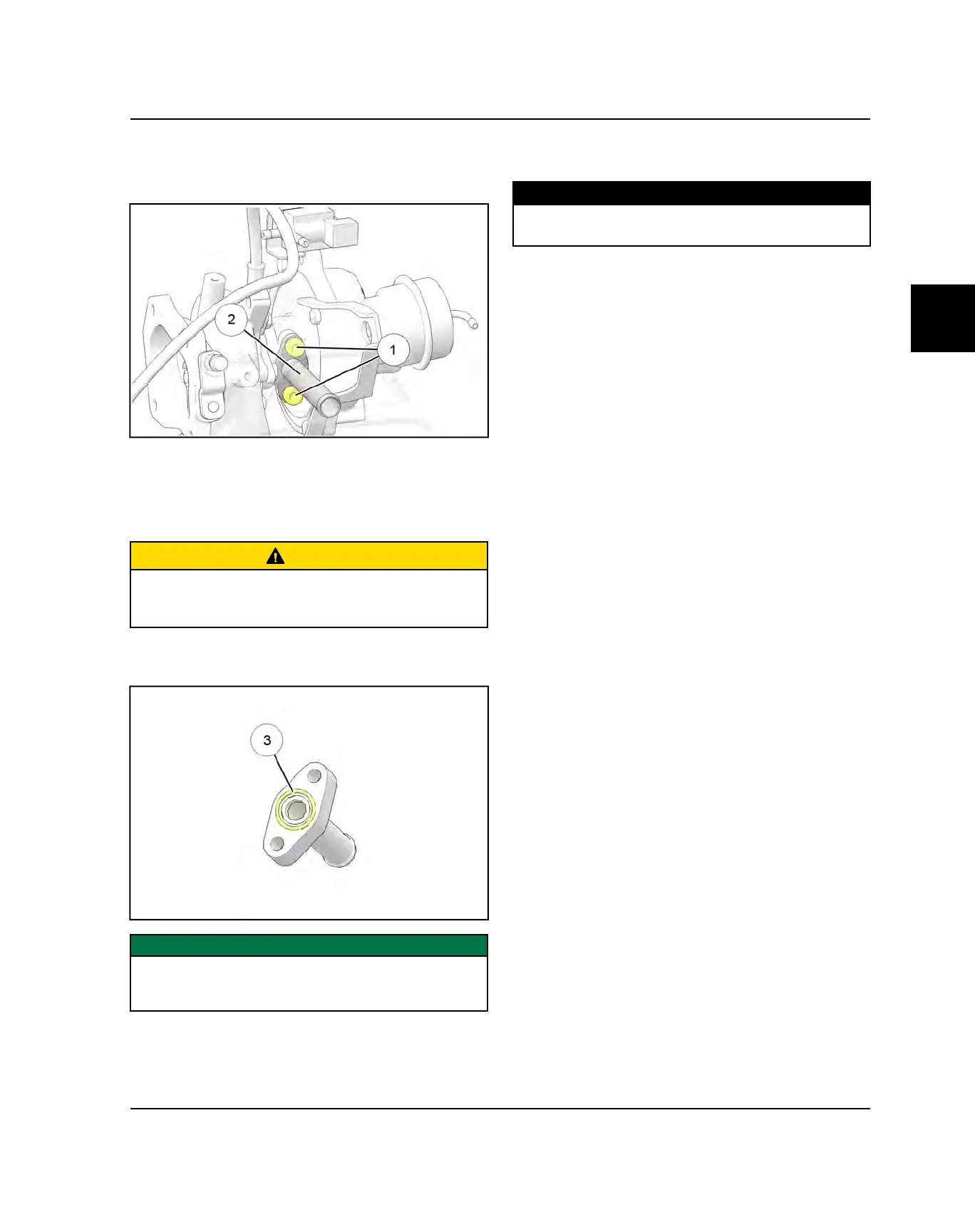

OIL DRAIN TUBE SERVICE
1. Remove the two fasteners
q
retaining the oil drain
tube
w
to the turbocharger. Discard the fasteners.
2. Inspect the drain tube to turbocharger mating
surfaces. Ensure there is no damage to either surface
(nicks/scratches). Any residue/oil should be removed
with a gasket removing solvent applied to a clean
shop rag.
CAUTION
It is critical that the surfaces are smooth and free of
nicks and scratches. Damage on the mating surfaces
may lead to an oil leak.
3. Inspect the oil drain tube and sealing o-ring
e
. If the
o-ring is damaged, it must be replaced.
IMPORTANT
The O-ring must be properly in place before installing
the drain tube on the turbocharger to prevent an oil
leak.
4. Install new oil drain tube fasteners. Torque fasteners
to specification.
TORQUE
Drain Tube Fasteners:
11 ft-lb (15 Nm)
ENGINE / COOLING SYSTEM
