5.12
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.

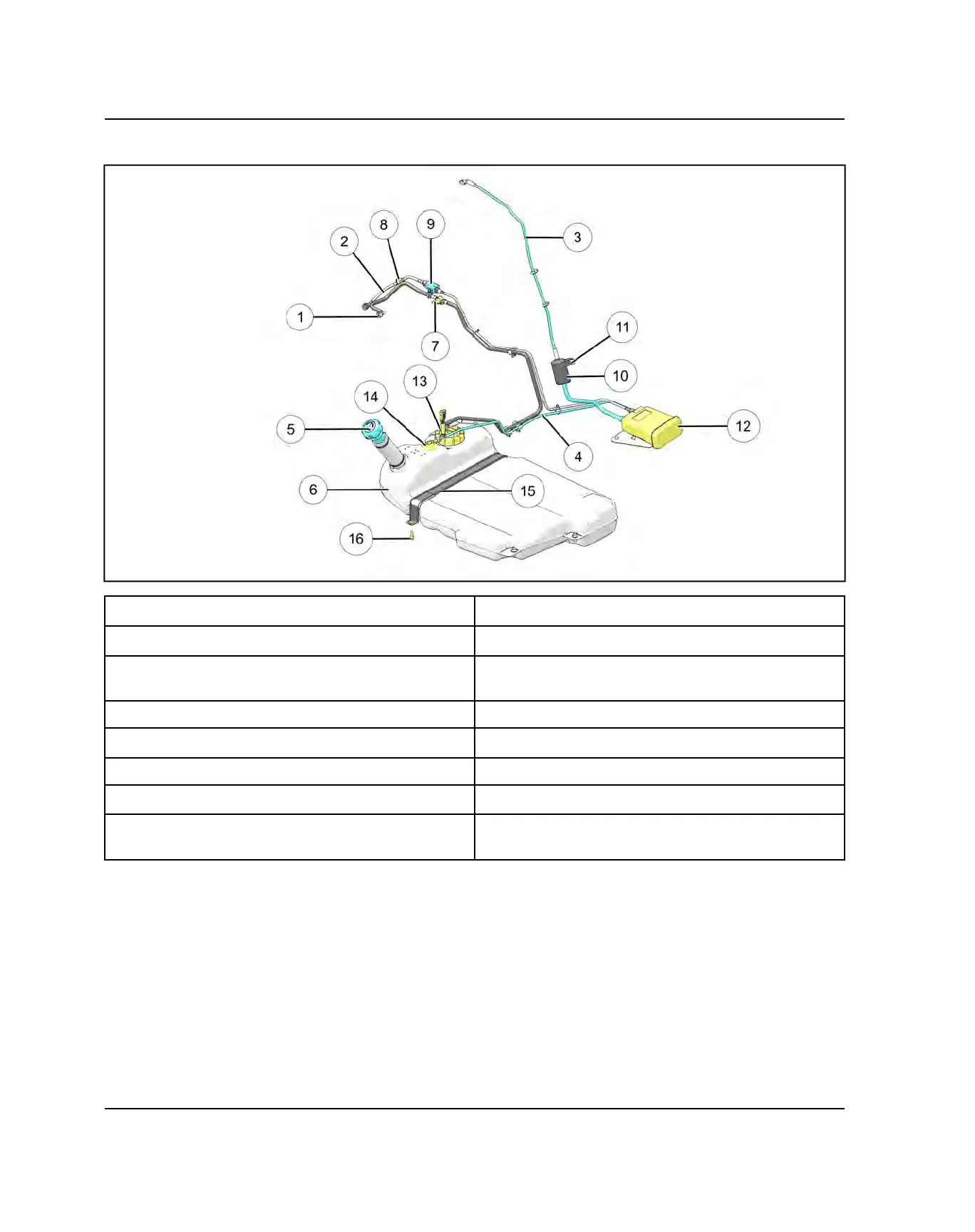

FUEL SYSTEM ASSEMBLY VIEW (EVAP)
q
Fuel Supply Line
o
Purge Valve
w
Purge Line
a
Carbon Canister Filter
e
Fuel Vent Line
s
Carbon Canister Filter Fastener
9 ft-lbs (12 Nm)
r
Fuel Tank-to-Canister Line
d
Carbon Canister
t
Fuel Fill
f
Fuel Pump
y
Fuel Tank
g
Vent Rollover Valve
u
Fuel Pressure Sensor
h
Fuel Tank Strap
i
Check Valve
j
Fuel Tank Fasteners
15 ft-lbs (20 Nm)
EFI / FUEL SYSTEM
