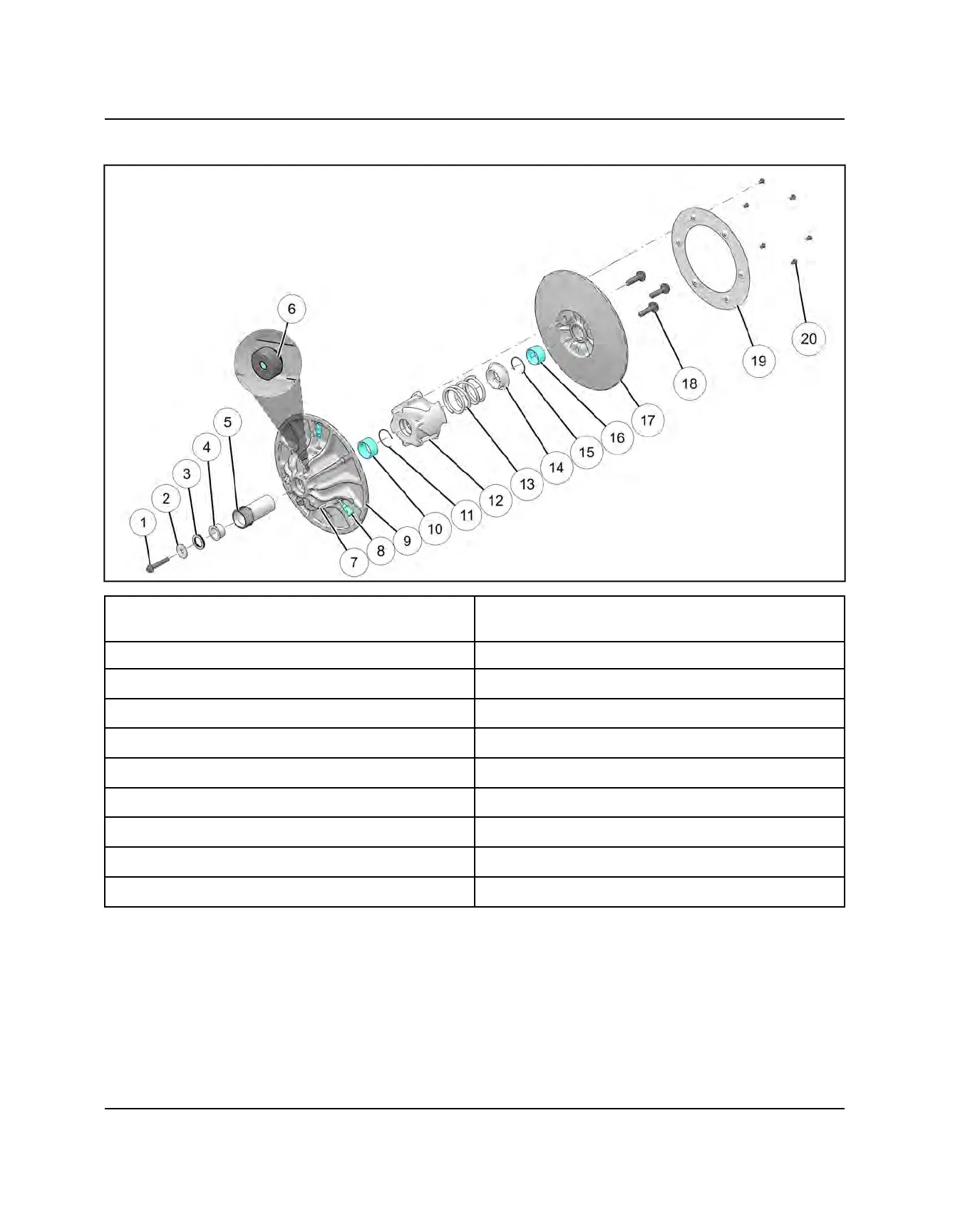

DRIVEN CLUTCH ASSEMBLY VIEW (2021)
q
Driven Clutch Bolt
26 ft-lbs (35 Nm)
s
Snap Ring
w
Washer
d
Helix
e
Shim (0-8)
f
Spring
r
Bushing
g
Spring Cup
t
Driven Post h
Snap Ring
y
Roller
j
Bearing
u
Spring Pin
k
Moveable Sheave
i
Roller Pin
l
Helix Fasteners 44 ft-lbs (60 Nm)
o
Stationary Sheave
1(
Windage Plate
a
Bearing
2)
Windage Plate Fastener 50 in-lbs (6 Nm)
