BODY ASSEMBLY VIEWS

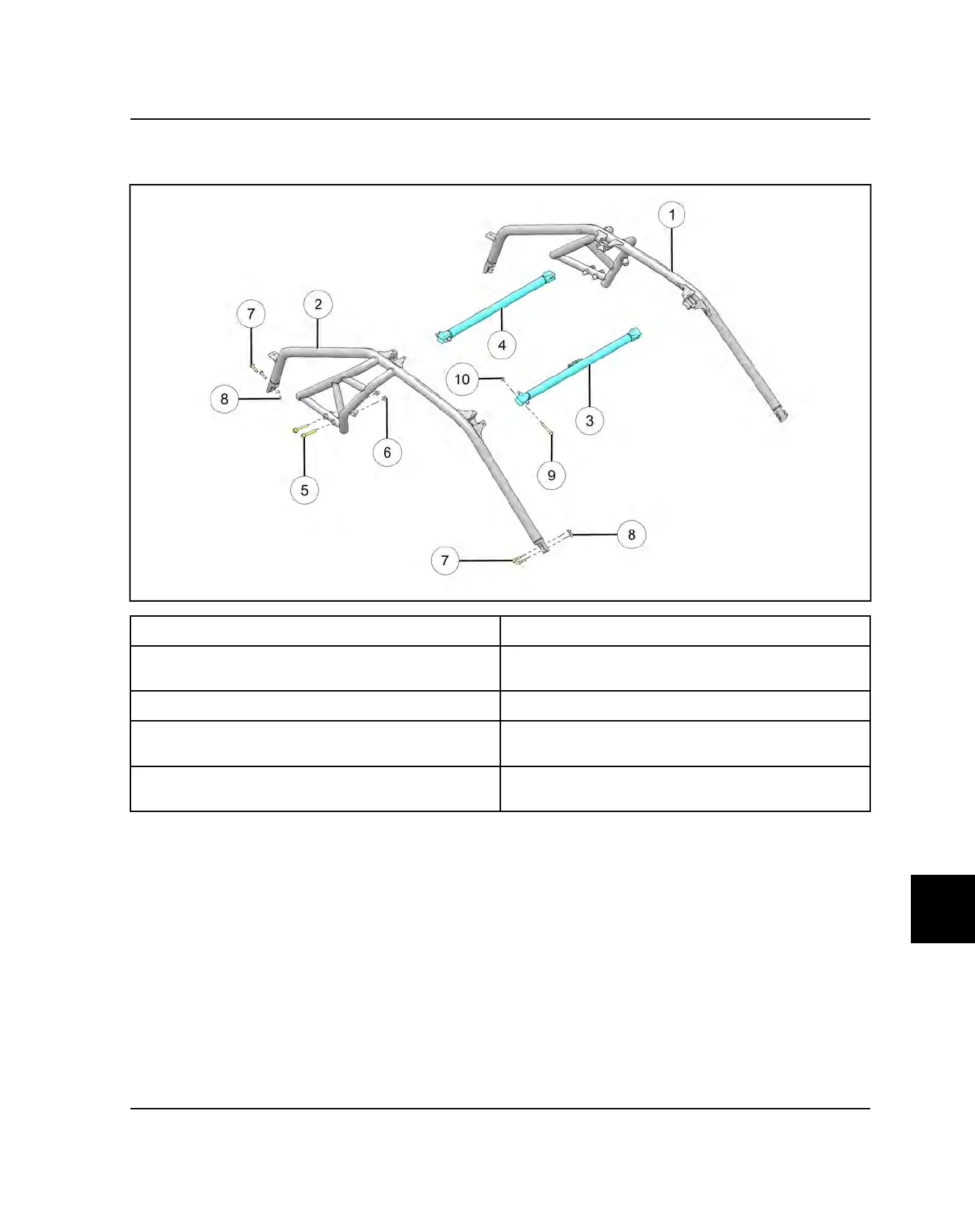

CAB FRAME ASSEMBLY
q
LH ROPS
y
Flanged Nyloc Nut - M12 x 1.5
w
RH ROPS
u
Fastener - M10 x 1.5 x 45 (10.9)
44 ft-lbs (60 Nm)
e
Front Cross Member
i
Nyloc Nut - M10 x 1.5
r
Rear Cross Member
o
Fastener - M10 x 1.5 x 75 (10.9)
44 ft-lbs (60 Nm)
t
Fastener - M12 x 1.5 x 80 (10.9)
89 ft-lbs (120 Nm)
a
Flanged Nyloc Nut - M10 x 1.5
BODY / FRAME
