CLUTCH ASSEMBLY
NOTICE
The Teflon® bushings are self-lubricating.
CAUTION
Do not apply oil or grease to the bushings.

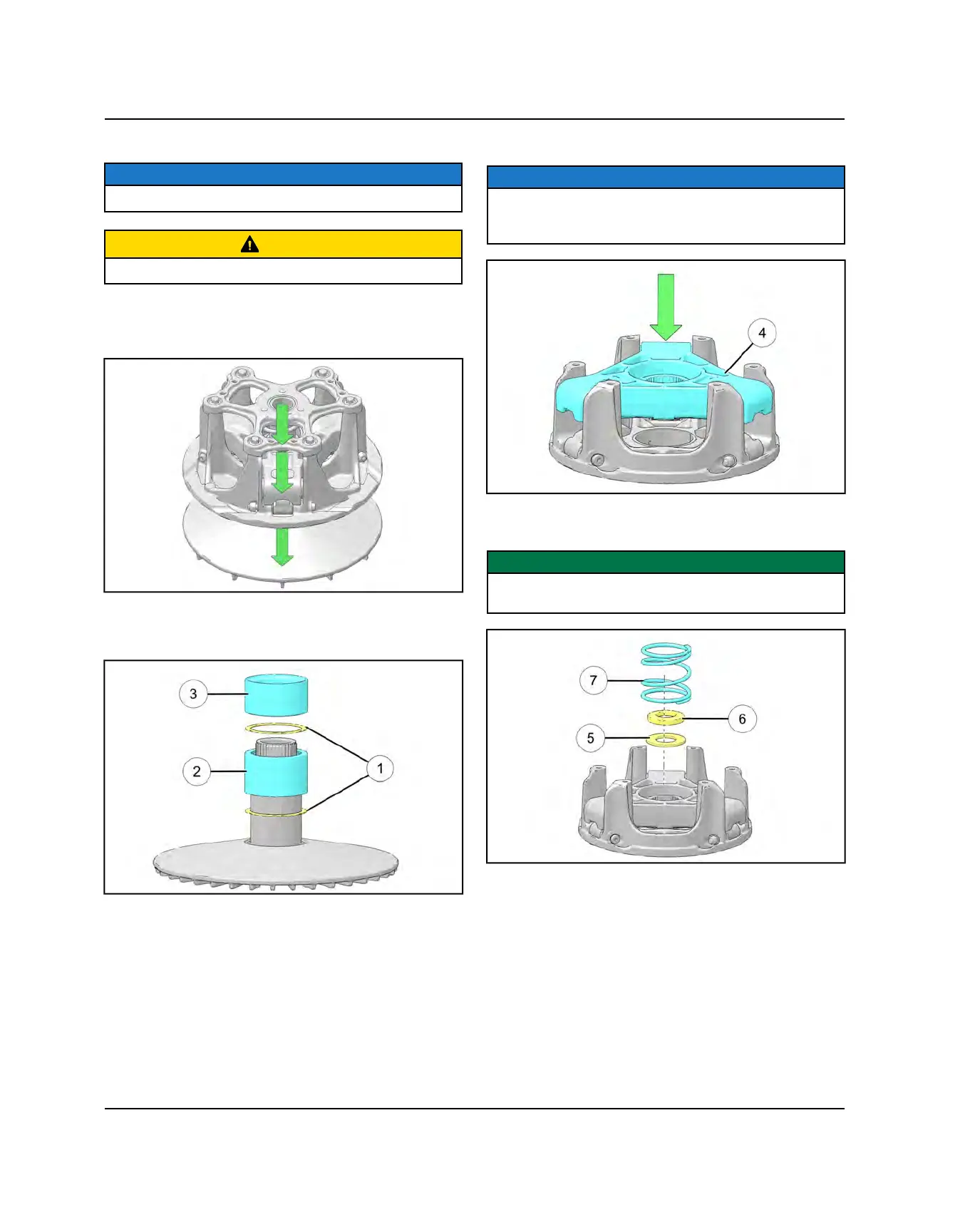

Reassemble the drive clutch in the following sequence.
Be sure the “X”, or the marks that were made earlier are
aligned during each phase of assembly.
1. Install two washers
q
, needle bearing
w
, and clutch
spacer
e
onto the stationary sheave in the order
shown.
2. Install clutch spider as shown
r
.
NOTICE
If necessary, once the splines are aligned properly, an
arbor press may be used to properly seat the clutch
spider.
3. Install washer
t
, belleville washer
y
, and clutch
spring
u
.
IMPORTANT
Belleville washer must be installed with dome facing the
outer post.
