4.12
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
PPS REPLACEMENT
NOTICE
The PPS is calibrated to the throttle pedal. If the PPS is
faulty, the throttle pedal assembly must be replaced.

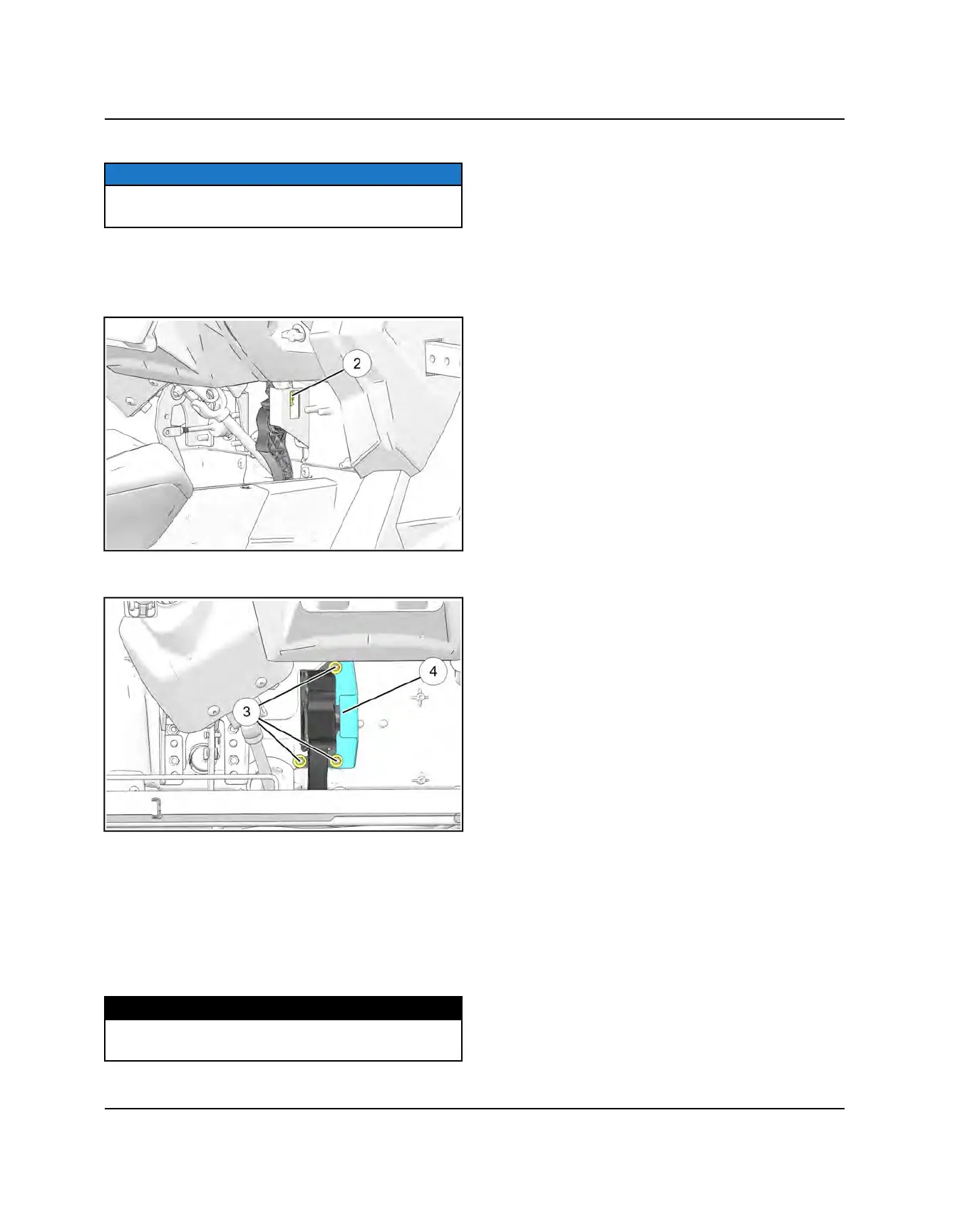

1. Remove the drivers seat and disconnect the
negative (-) battery cable.
2. Disconnect the PPS harness connection
w
located
on the throttle pedal.
3. Remove the three fasteners
e
retaining the throttle
pedal assembly to the frame support.
4. Remove the protective shield
r
.
5. Remove the pedal assembly from the vehicle.
PPS Installation
6. Place the throttle pedal assembly and protective
shield on the mounting studs and loosely install the
three fasteners.
7. Torque the three mounting bolts to specification and
connect the PPS harness connection.
TORQUE
Throttle Pedal Mounting fasteners:
18 ft-lbs (24 N·m)
8. Manually cycle the throttle pedal to verify the throttle
pedal moves freely.
9. Connect the negative (-) battery cable and install the
drivers seat.
ENGINE ELECTRICAL
