Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
9 - 28
Step 3: Create LED event based on the Mute state
The final event required will map the mute state of the microphone to the LED
state. In this example, it is desired to light the LED (logic output = 1) when the

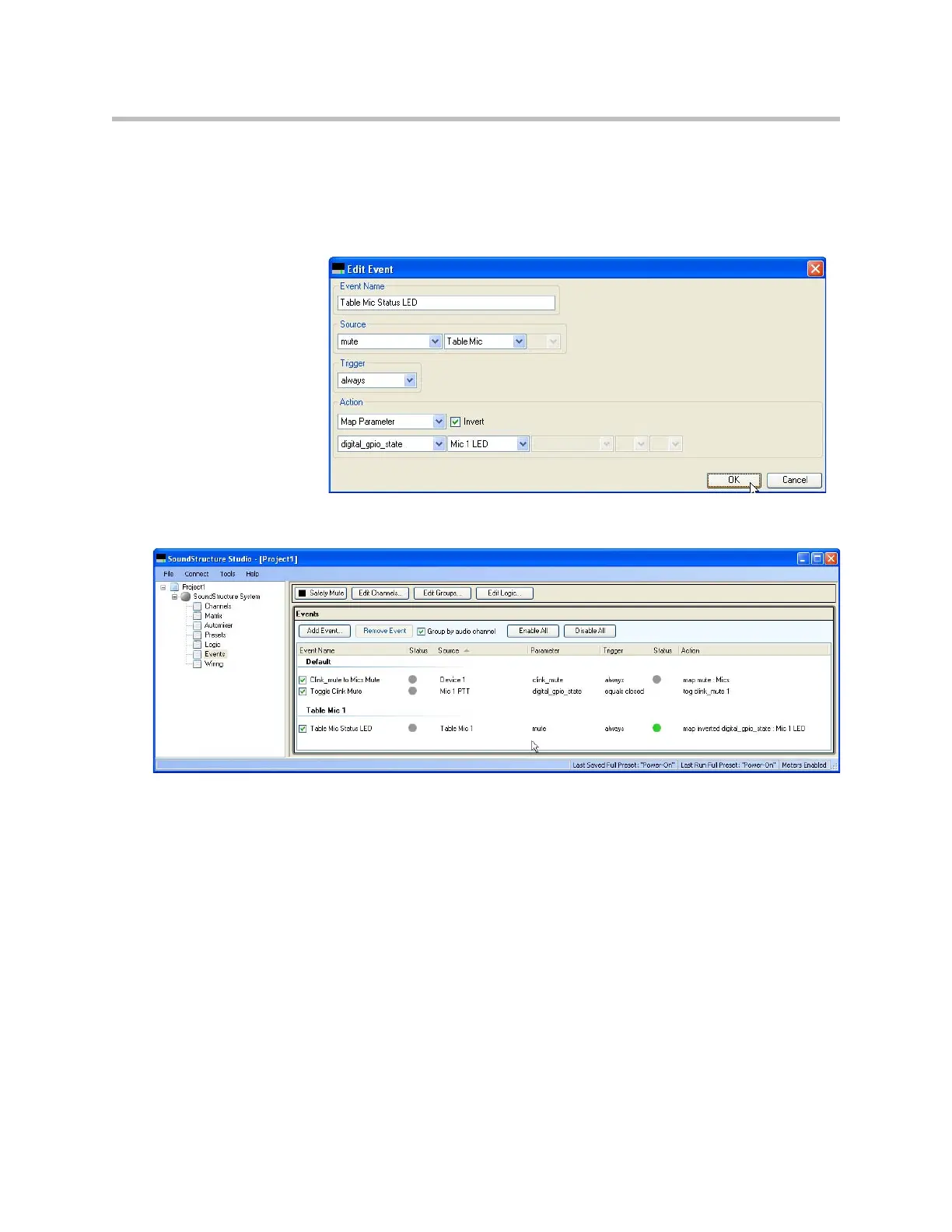

microphone is unmuted (mute = 0). To accomplish this we will use an invert
in the map action as shown in the following figure.
The full set of events is shown on the Events page and appears as the figure
shown below.
For each additional microphone that it is desired to add PTT logic, create addi-
tional Toggle Clink Mute and Table Mic Status LED events for each
microphone. Only one “Clink_mute to Mics Mute” event is required.
Remember, if you have microphones across multiple SoundStructure devices
you will require events that will map the clink_mute of device 1 to the
clink_mute of device 2, and so on to ensure the clink_mute parameter on all
devices is synchronized together.
Push And hold To Temporarily Mute A Microphone
In this example, a cough button is created to allow someone to mute their par-
ticular microphone while they are holding the button closed.
